3.11 Description of the connectors
Various connections to allow phone extensions. The type of connectors you have depends on your
phone.
M7, M5, M3
M7
M5
M3

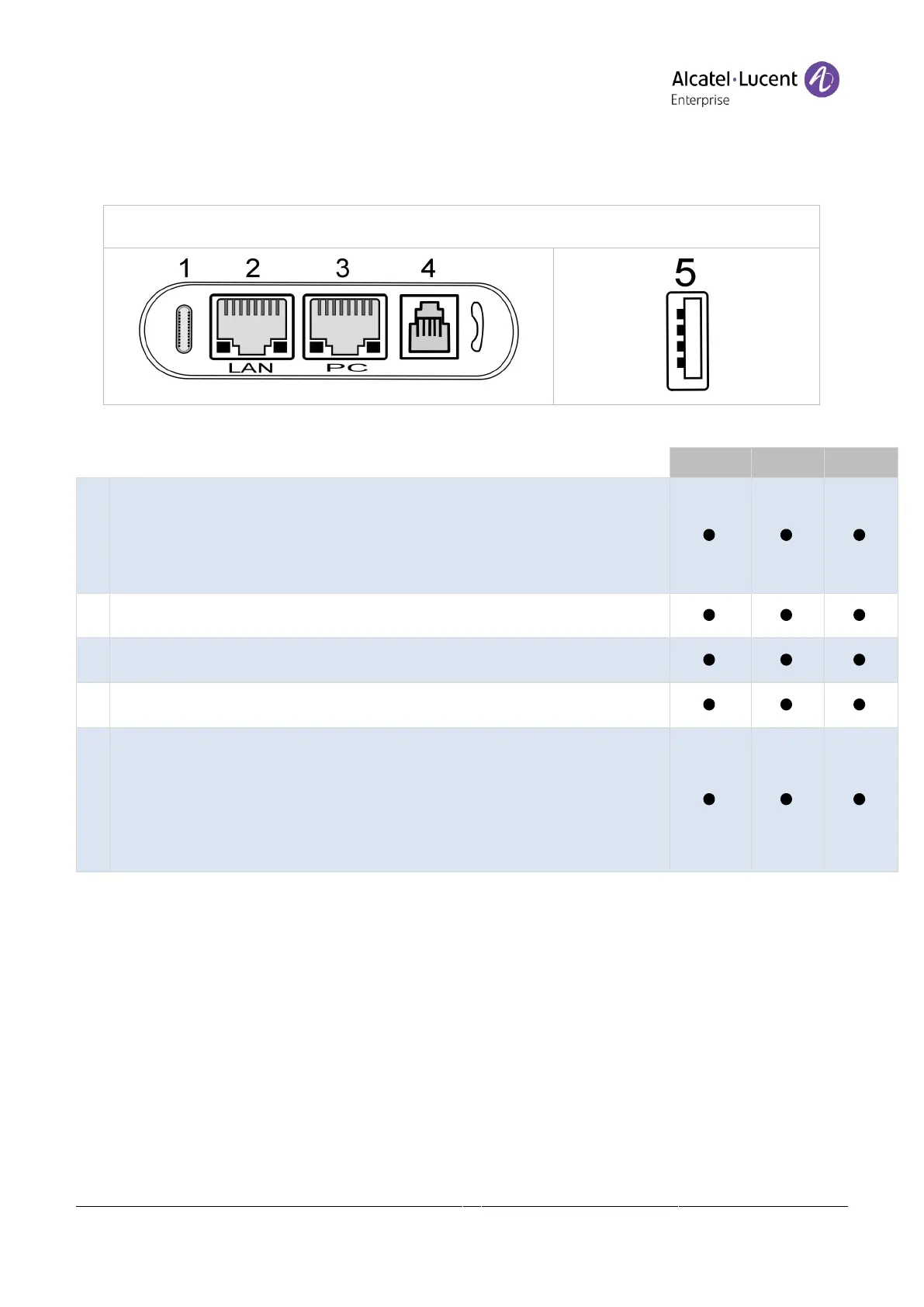

1
Universal Serial Bus (USB-C) connector
This connector is used for:
 Connect the power adapter.
 Connect a headset.
 Connect a PC to use the desk phone as an audio hub.
2
10/100/1000 Mbps Ethernet connectors to the enterprise network (LAN - RJ45).
3
10/100/1000 Mbps Ethernet connectors to a PC (RJ45).
4
Wired handset connector (RJ9).
5
Universal Serial Bus (USB-A) connector.
This connector is used for:
 Connect a USB headset.
 Connect an add-on module(EM20/EM200).
 Connect a Wi-Fi dongle*.
*To know the supported dongle, please refer to the Alcatel-Lucent Enterprise website or contact
your administrator.
