88 Rockwell Automation Publication 1766-UM001I-EN-P - June 2015
Chapter 5 Using the LCD

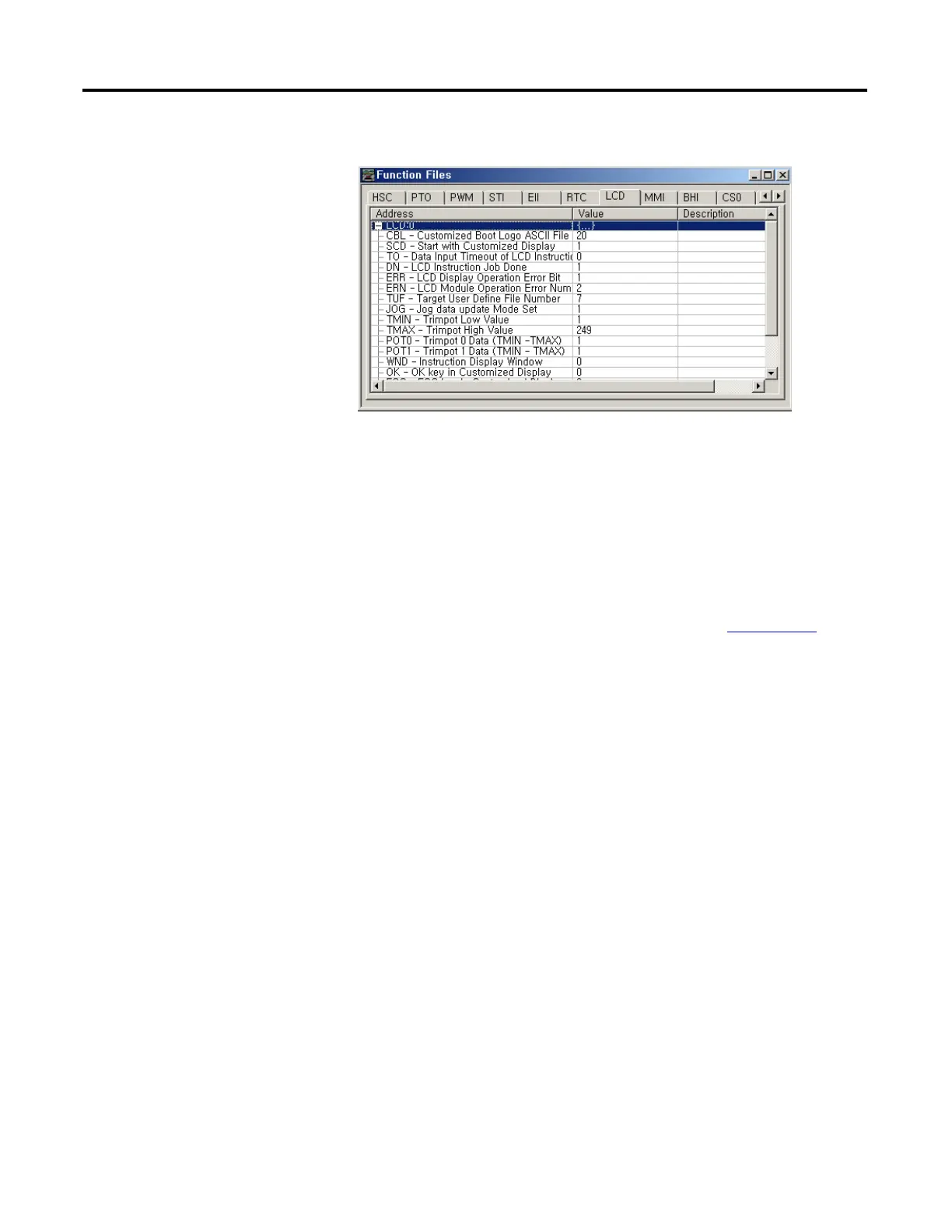

For more information on how to create and use a customized Startup screen, refer
to the LCD Function File described in the MicroLogix 1400 Programmable
Controllers Instruction Set Reference Manual, publication 1766-RM001
.
After the default Startup screen or your customized Startup screen is displayed
for 3 seconds, either the default screen (the I/O Status screen) is displayed by
default, or a user defined screen is displayed if your application uses a custom
default screen.
Once a valid bitmap file is imported successfully, you should be able
to see the data in ASCII data files.
Make sure that the second element (file size) in the first ASCII data
file is 0x0440 (1088 bytes) in hexadecimal value.
After a power cycle, you should be able to see the customized boot
logo on your LCD display.
