Allen-Bradley MicroLogix 1400 User Manual

Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 129
Using the LCD Chapter 5

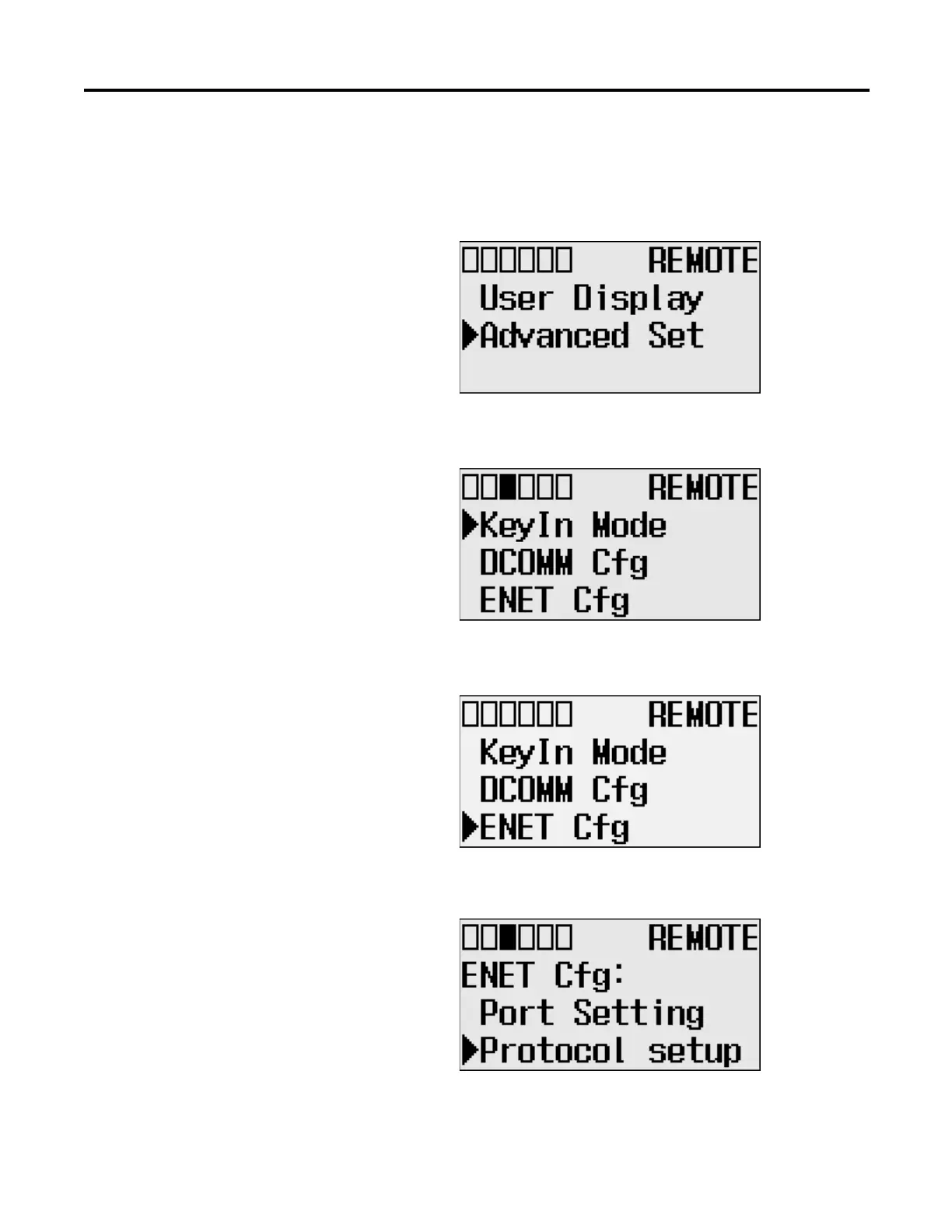

1. On the Main Menu screen, select Advanced Set by using the Up and Down
keys on the LCD keypad, as shown below. If the menu items shown in the
figure below are not displayed on the Main Menu screen, you need to scroll
down the screen by pressing the Down key.
2. Press the OK key on the LCD keypad. The Advanced Settings Menu
screen is displayed, as shown below.
3. If ENET Cfg is selected, press the OK key. If not, select ENET Cfg using
the Up and Down keys, and then press the OK key.
4. If Protocol setup is selected, press the OK key. If not, select Protocol setup
using the Up and Down keys, and then press the OK key.

Allen-Bradley MicroLogix 1400 Specifications

General

Processor	32-bit
Expansion Modules	Up to 7 expansion I/O modules
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Communication Ports	Ethernet, RS-232/RS-485 combo port
Controller Type	Programmable Logic Controller (PLC)
Series	MicroLogix
Digital Outputs	12
Analog Inputs	6 (embedded)
Analog Outputs	2 (embedded)
High-Speed Counter	6 high-speed counters
Pulse Output	2 (embedded)
Ethernet Port	Yes
