Allen-Bradley MicroLogix 1400 User Manual

130 Rockwell Automation Publication 1766-UM001I-EN-P - June 2015
Chapter 5 Using the LCD

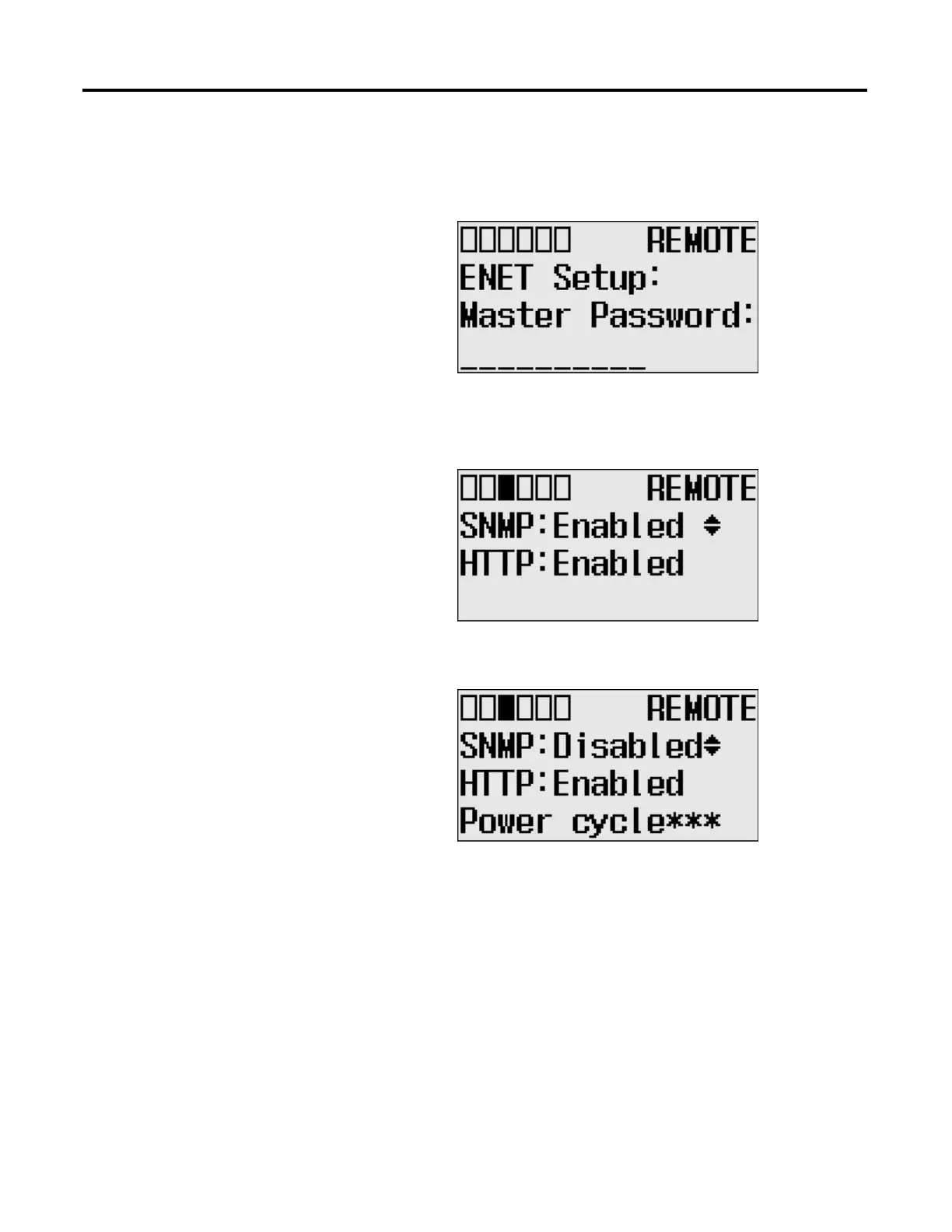

5. The password screen is displayed. Press Up, Down, Left and Right keys to
enter a Master password up to a maximum of 10 digits. In this example, the
current Master password is allocated as "1234".
After entering the Master password, press the OK key on the LCD keypad.
6. The following menu is displayed.
If you want to change the SNMP setting, press the Up or Down key and
press the OK key to apply the change.

Allen-Bradley MicroLogix 1400 Specifications

General

Processor	32-bit
Expansion Modules	Up to 7 expansion I/O modules
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Communication Ports	Ethernet, RS-232/RS-485 combo port
Controller Type	Programmable Logic Controller (PLC)
Series	MicroLogix
Digital Outputs	12
Analog Inputs	6 (embedded)
Analog Outputs	2 (embedded)
High-Speed Counter	6 high-speed counters
Pulse Output	2 (embedded)
Ethernet Port	Yes
