194 Rockwell Automation Publication 1766-UM001I-EN-P - June 2015

Appendix D Using ControlFLASH to Upgrade Your Operating System

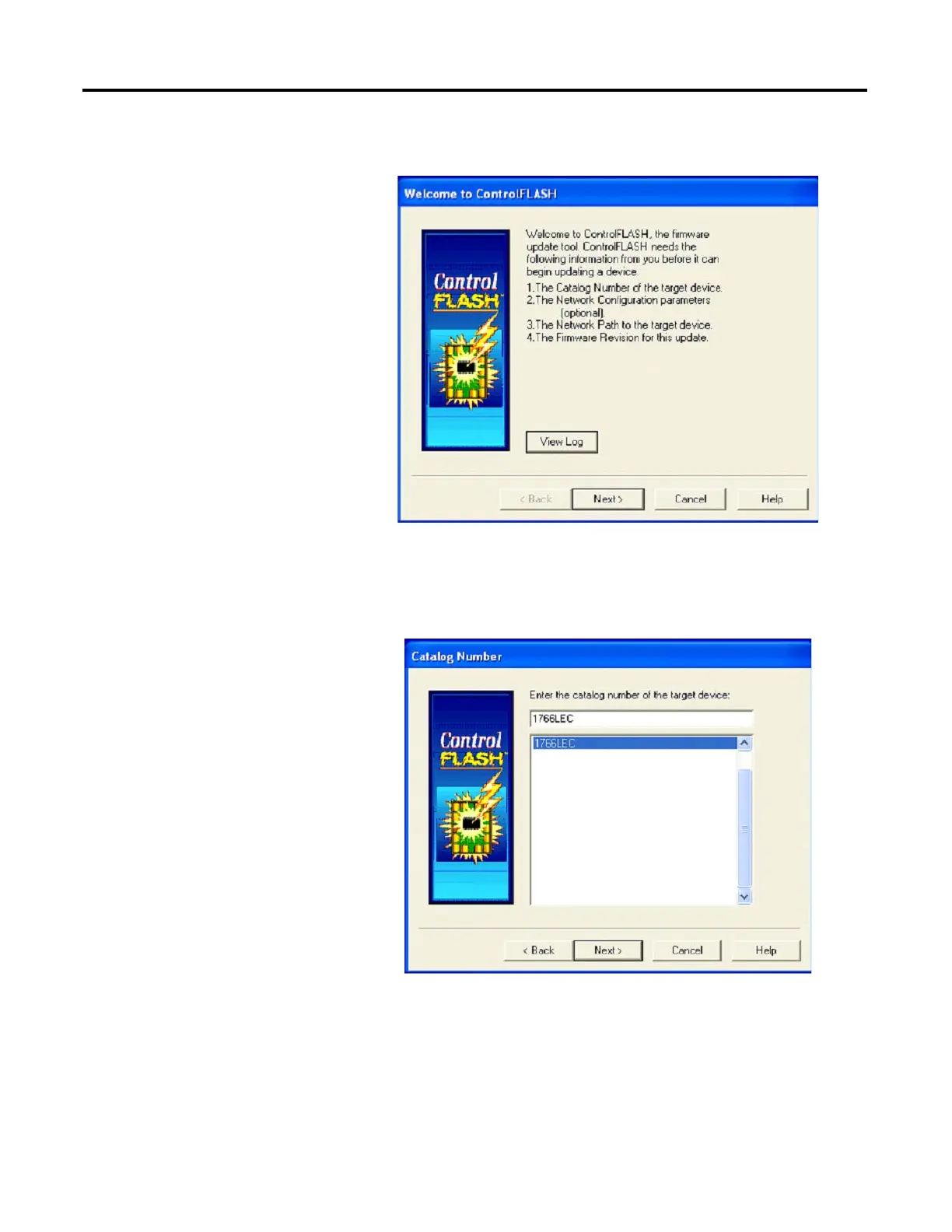

The Welcome to ControlFLASH dialog box is displayed.

2. Click the Next button.

3. Select the appropriate catalog number from the Catalog Number dialog

box and click the Next button.
