Appendix F MicroLogix 1400 Distributed Network Protocol (DNP3)
This file number is used to define default variations in a response to a Class 0 poll
request.
The value of this parameter is N file only. Valid range is 0, 7, 9 to 255. Default
value is 0.

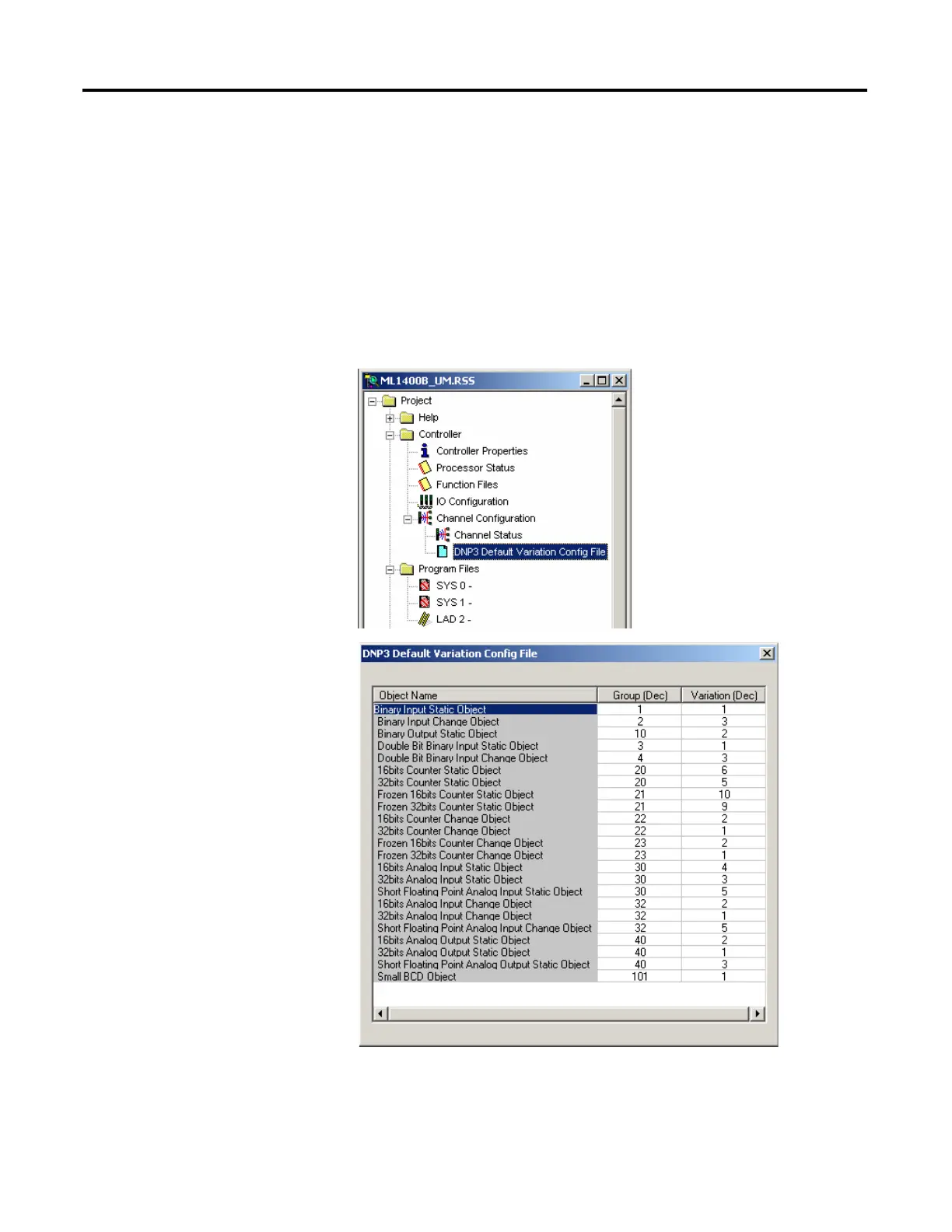

In RSLogix 500/RSLogix Micro software, when this parameter is configured
properly, you can see a DNP3 Default Variation Config File tree in Channel
Configuration.
The following table shows the structure of the DNP3 Default Variation
Configuration File.
