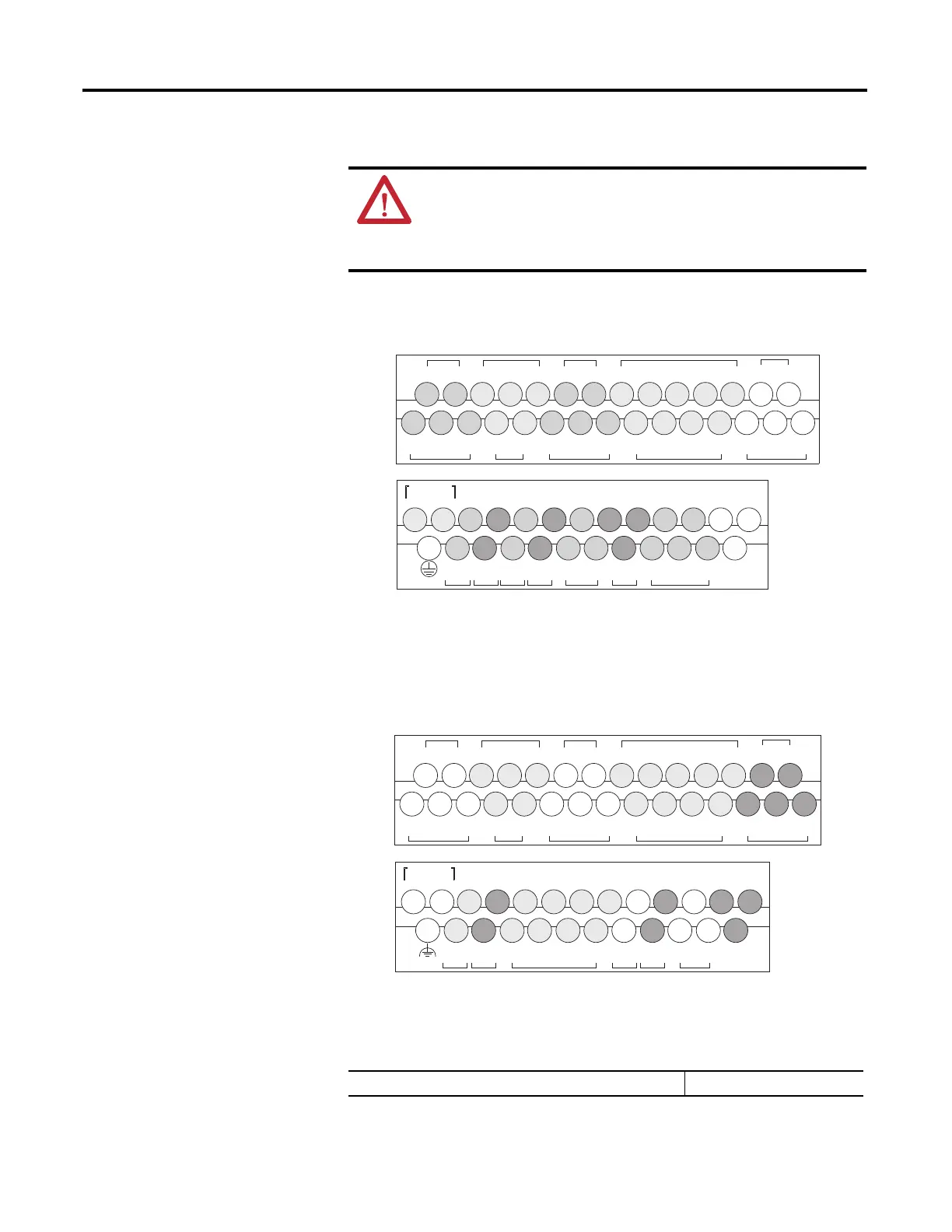

Chapter 3 Wire Your Controller
Figure 4 - 1766-L32AWA/L32AWAA
Figure 5 - 1766-L32BXB/L32BXBA
ATTENTION: The 24V DC sensor supply of the 1766-L32BWA and
1766-L32BWAA controllers should not be used to power output
circuits. It should only be used to power input devices, for example,
sensors and switches. See Master Control Relay on page 13 for
information on MCR wiring in output circuits.
Wire Types and Sizes
Wire Type Wire Size
IN1
IN0 IN2
IN3
COM 0
IV0(+) IV2(+)
COM 1
IV1(+) IV3(+)
IN5 IN7
IN4 IN6
COM 2
IN8 IN10
IN9 IN11
COM 3
IN13 IN15 IN17 IN19
IN12 IN14 IN16 IN18
COM
ANA
L1
DC0
OV1
OUT0
OUT1 OUT2 OUT3 OUT4
OUT5
OUT7 OUT8 OUT10
OUT6 OUT9 OUT11
OV0
VAC
L2/N
VAC
VAC
DC1
VAC
DC2
VAC
DC3
VAC
DC4
VAC
DC6
VAC
COM
ANA
DC5
VAC
Group 0 Group 1 Group 2 Group 3 Group 5Group 4 Group 6
Input Terminal Block
Output Terminal Block
44525
IN1
IN0 IN2
IN3
COM 0
IV0(+) IV2(+)
COM 1
IV1(+) IV3(+)
IN5 IN7
IN4 IN6
COM 2
IN8 IN10
IN9 IN11
COM 3
IN13 IN15 IN17 IN19
IN12 IN14 IN16 IN18
COM
ANA
+24
DC0
OV1
OUT0
OUT1 OUT2 OUT4 OUT6
OUT7
OUT8 OUT9 OUT10
OUT11
OV0
VDC
NEUT
VDC
VAC
DC1
VAC
VDC2 OUT3 OUT5 DC4
VAC
COM
ANA
COM 2
DC3
VAC
DC5
VAC
Group 0 Group 1 Group 3 Group 4 Group 5Group 2
Input Terminal Block
Output Terminal Block
44526

Allen-Bradley MicroLogix 1400 Specifications

General

Processor	32-bit
Expansion Modules	Up to 7 expansion I/O modules
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Communication Ports	Ethernet, RS-232/RS-485 combo port
Controller Type	Programmable Logic Controller (PLC)
Series	MicroLogix
Digital Outputs	12
Analog Inputs	6 (embedded)
Analog Outputs	2 (embedded)
High-Speed Counter	6 high-speed counters
Pulse Output	2 (embedded)
Ethernet Port	Yes
