Chapter 3 Wire Your Controller

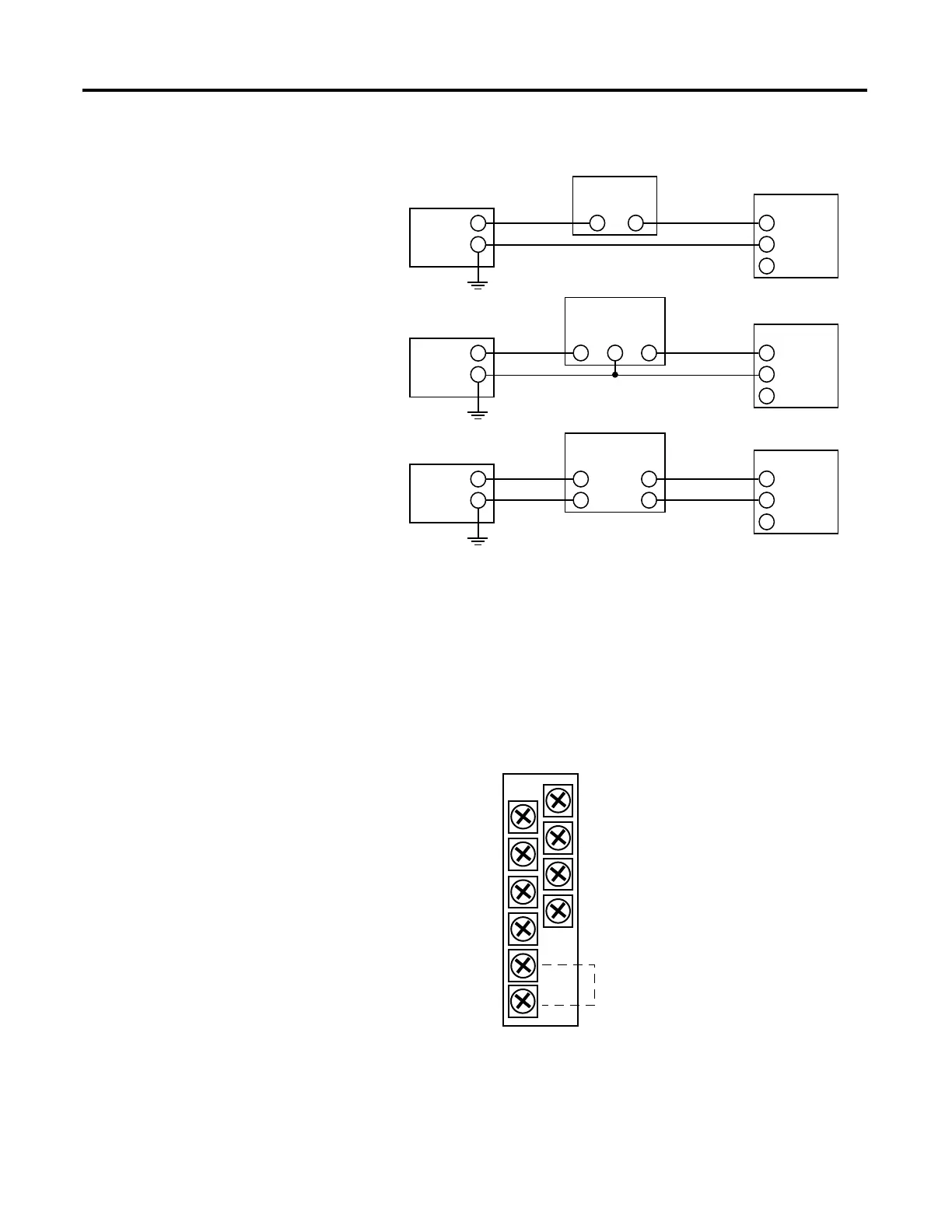

Figure 33 - Sensor/Transmitter Types
1762-OF4 Output Type Selection
The output type selection, current or voltage, is made by wiring to the
appropriate terminals, Iout or Vout, and by the type/range selection bits in the
Configuration Data File.
1762-OF4 Terminal Block Layout
+
+
-
-
+
-
+
-
IN +
IN -
COM
+
-
IN +
IN -
COM
+
-
IN +
IN -
COM
Power
Supply
(1)
Power
Supply
(1)
Power
Supply
(1)
Transmitter
Transmitter
Transmitter
Module
Supply
Signal
2-Wire Transmitter
3-Wire Transmitter
4-Wire Transmitter
(1)
All power supplies rated N.E.C. Class 2.
Supply
Signal
Module
Module
V out 3
V out 2
V out 1
V out 0
I out 3
I out 2
I out 1
I out 0
COM
COM
Commons connected internally
