Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 67

Communication Connections Chapter 4

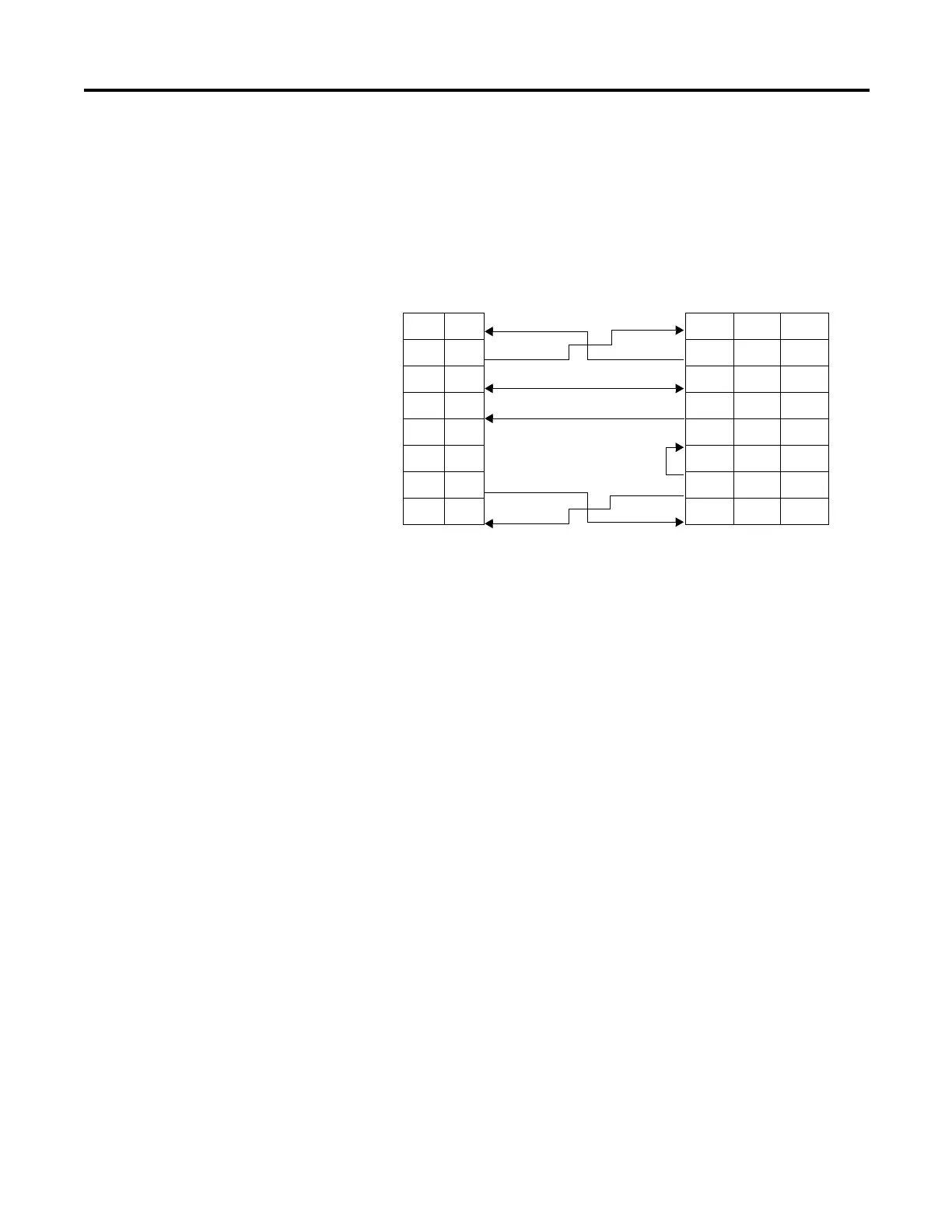

Constructing Your Own Null Modem Cable

If you construct your own null modem cable, the maximum cable length is

15.24m (50 ft) with a 25-pin or 9-pin connector. Refer to the following typical

pinout:

Optical Isolator Modem

9-Pin 25-Pin 9-Pin

3 TXD TXD 2 3

2 RXD RXD 3 2

5GND GND7 5

1CD CD8 1

4DTR DTR204

6 DSR DSR 6 6

8 CTS CTS 5 8

7 RTS RTS 4 7
