78 Rockwell Automation Publication 1766-UM001I-EN-P - June 2015
Chapter 4 Communication Connections

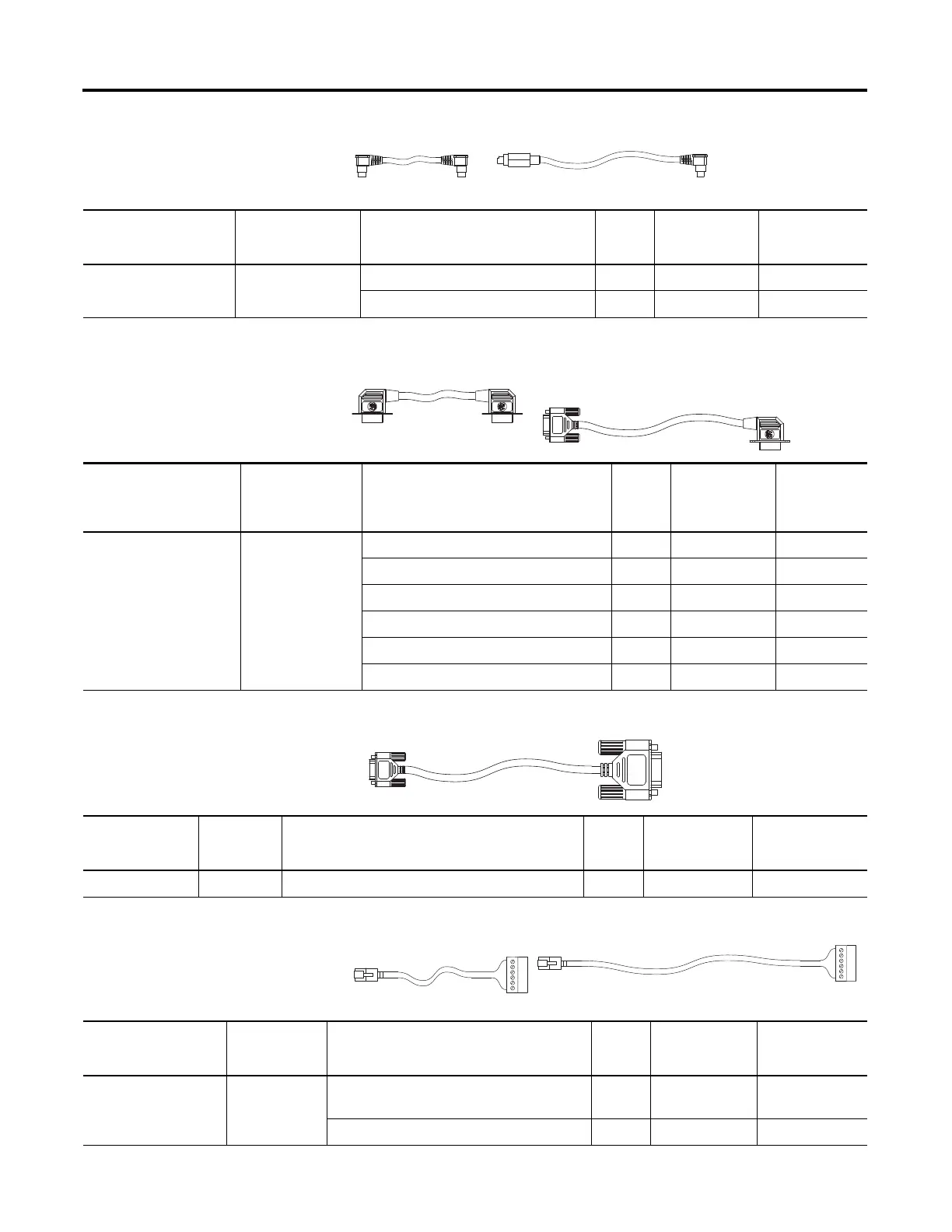

1761-CBL-HM02
(2)
1761-CBL-AM00
(2)
44601
Cable Length Connections from to AIC+ External Power
Supply
Required
(1)
Power Selection
Switch Setting
1761-CBL-AM00
(2)
1761-CBL-HM02
(2)
45 cm (17.7 in.)
2 m (6.5 ft)
MicroLogix 1000, 1200, or 1500 ch 0 port 2 no cable
to port 2 on another AIC+ port 2 yes external
(1)
External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
(2)
Series C or later cables are required.
1761-CBL-AC00 1747-CP3
44602
Cable Length Connections from to AIC+ External Power
Supply
Required
(1)
Power
Selection
Switch
Setting
(1)
1747-CP3
1761-CBL-AC00
(1)
3 m (9.8 ft)
45 cm (17.7 in.)
SLC 5/03 or SLC 5/04 processor, channel 0 port 1 yes external
PC COM port port 1 yes external
PanelView 550 through NULL modem adapter port 1 yes external
DTAM Plus / DTAM Microâ„¢ port 1 yes external
Port 1 on another AIC+ port 1 yes external
MicroLogix 1400 ch 2 port 2 yes external
(1)
External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
user-supplied cable
44603
Cable Length Connections from to AIC+ External Power
Supply
Required
(1)
Power Selection
Switch Setting
(1)
straight 9-25 pin — modem or other communication device port 1 yes external
(1)
External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
1761-CBL-AS03 1761-CBL-AS09
44604
Cable Length Connections from to AIC+ External Power
Supply
Required
(1)
Power Selection
Switch Setting
(1)
1761-CBL-AS03
1761-CBL-AS09
3 m (9.8 ft)
9.5 m (31.17 ft)
SLC 500 Fixed,
SLC 5/01, SLC 5/02, and SLC 5/03 processors
port 3 yes external
PanelView 550 RJ45 port port 3 yes external
To Next Page
