Publication 1766-RM001A-EN-P - October 2008
636 Knowledgebase Quick Starts
Proper wiring of a single ended encoder (Typical Allen-Bradley 845TK)
when configuring HSC.MOD for Mode 6 (Quadrature Counter)

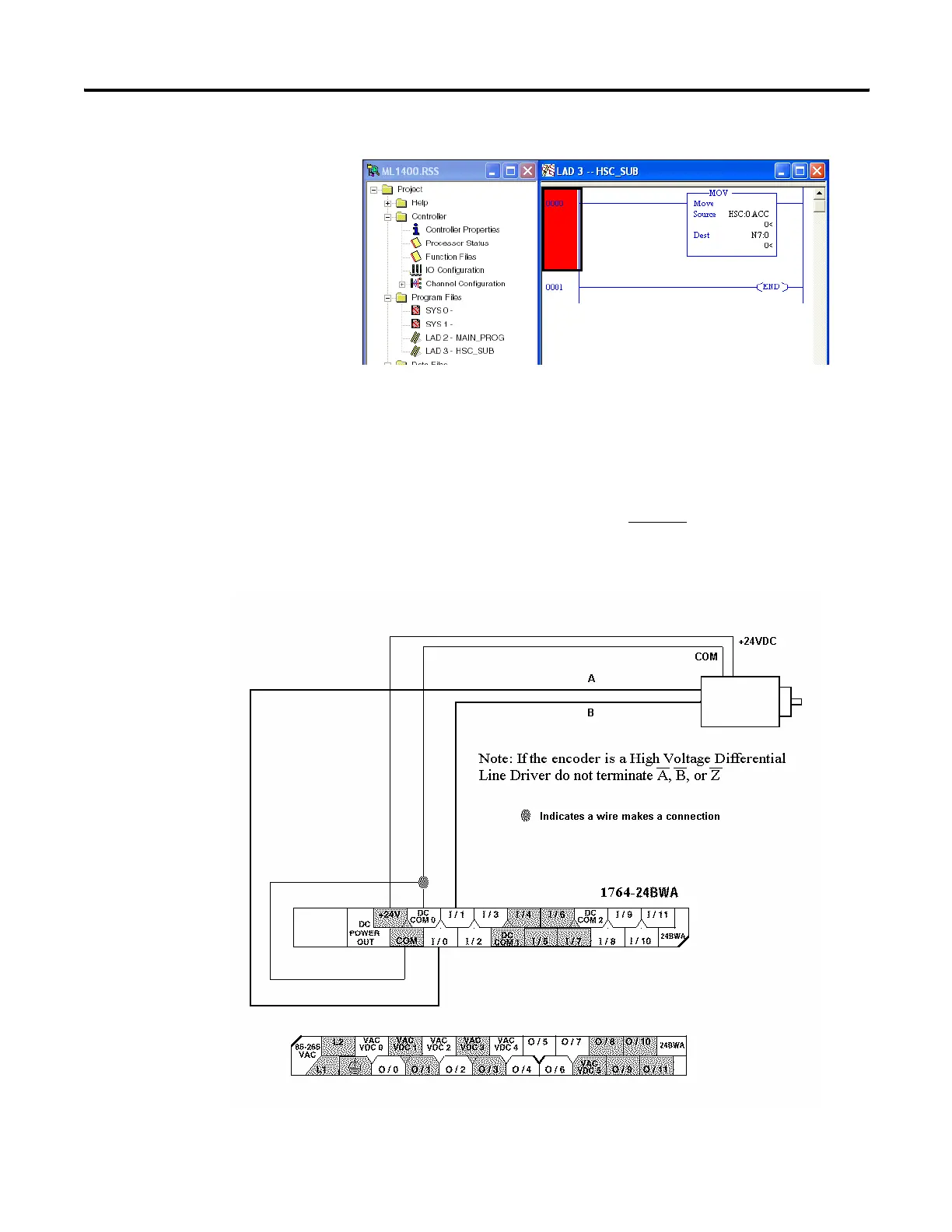

The following diagram illustrates connecting an encoder to the
MicroLogix 1400.
The minimum configuration required for Mode 6
operation is to enter a
file number for the PFN parameter, set the AS and CE bits to a (1) and
enter a (6) for the MOD parameter.
