Chapter 10 Create a Project Using RSLogix 5000 Programming Software

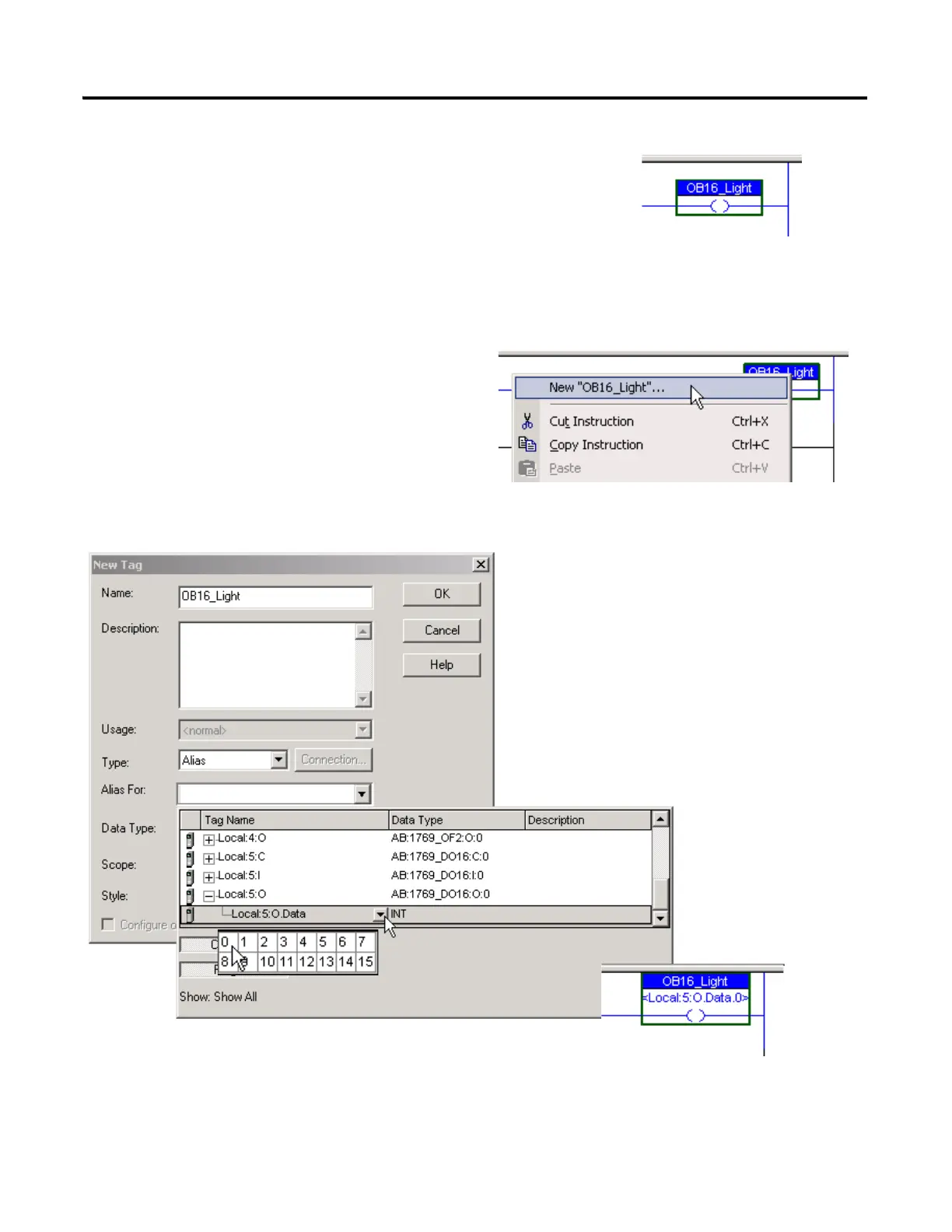

9. Right-click the xxxx_Light tag name and
select New ‘xxxx_Light’.
xxxx_Light is an alias tag for the I/O
point tag name. This lets you assign a
simple name to a physical I/O point
address.
10. From the Type pull-down menu,
select Alias.
11. In the Alias For pull-down menu,
browse to a local 1769 digital output
module and select any bit.
In this example, Local:5:O.Data.0 is
used.
12. Click OK.
8. Name the Output Energize xxxx_Light (where xxxx is
the suffix of the catalog number of the 1769 Compact I/O
digital output module).
Important: Do not use spaces in the tag name. Use
underscores (_) instead.

Allen-Bradley PowerFlex 40 Specifications

General

Output Voltage	0 to Input Voltage
Enclosure	IP20
Control Method	V/Hz, Sensorless Vector Control
Communication	RS485
Frequency	0 to 400 Hz
Protection	Overload, Overvoltage, Undervoltage, Short Circuit
Operating Temperature	-10 to 50°C (14 to 122°F)
Storage Temperature	-40...70 °C (-40...158 °F)
Humidity	5% to 95% non-condensing
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC (depending on model)
