Allen-Bradley PowerFlex 40 User Manual

40 Publication IASIMP-QS001C-EN-P - October 2009
Chapter 2 Prepare the Computer

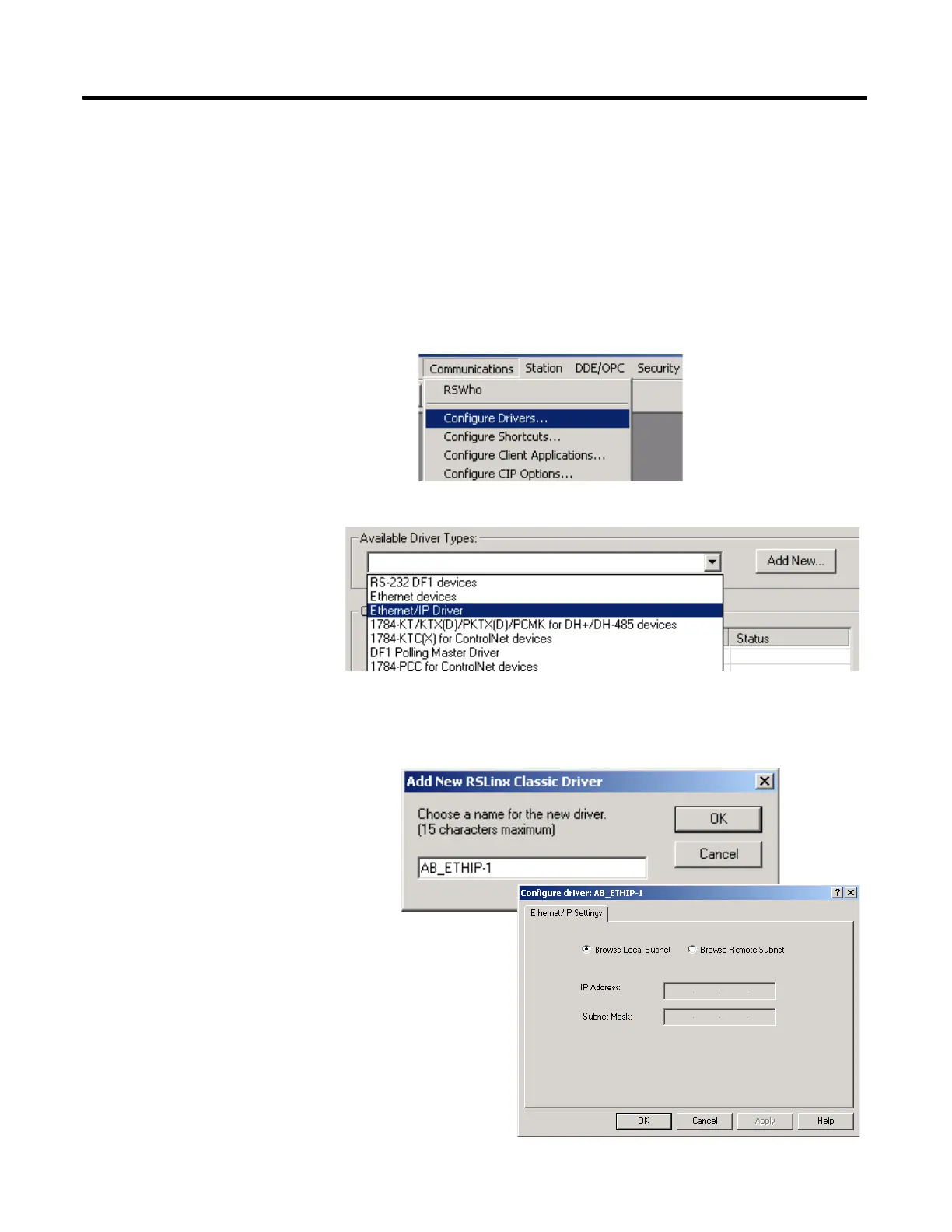

Configure the EtherNet/IP Driver in RSLinx Software
Required for 1769-L32E,1767-L35E, and PanelView Plus
1. If RSLinx software is not open, launch RSLinx software.
2. From the Communications
menu, choose Configure
Drivers.
3. From the Available
Driver Types, select
Ethernet/IP Driver.
4. Click Add New.
5. Click OK to keep the default
name.
6. Click OK to Browse Local
Subnet.

Allen-Bradley PowerFlex 40 Specifications

General

Output Voltage	0 to Input Voltage
Enclosure	IP20
Control Method	V/Hz, Sensorless Vector Control
Communication	RS485
Frequency	0 to 400 Hz
Protection	Overload, Overvoltage, Undervoltage, Short Circuit
Operating Temperature	-10 to 50°C (14 to 122°F)
Storage Temperature	-40...70 °C (-40...158 °F)
Humidity	5% to 95% non-condensing
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC (depending on model)
