Allen-Bradley PowerFlex 40 User Manual

190 Publication IASIMP-QS001C-EN-P - October 2009
Chapter 14 Create a PanelView Plus Application

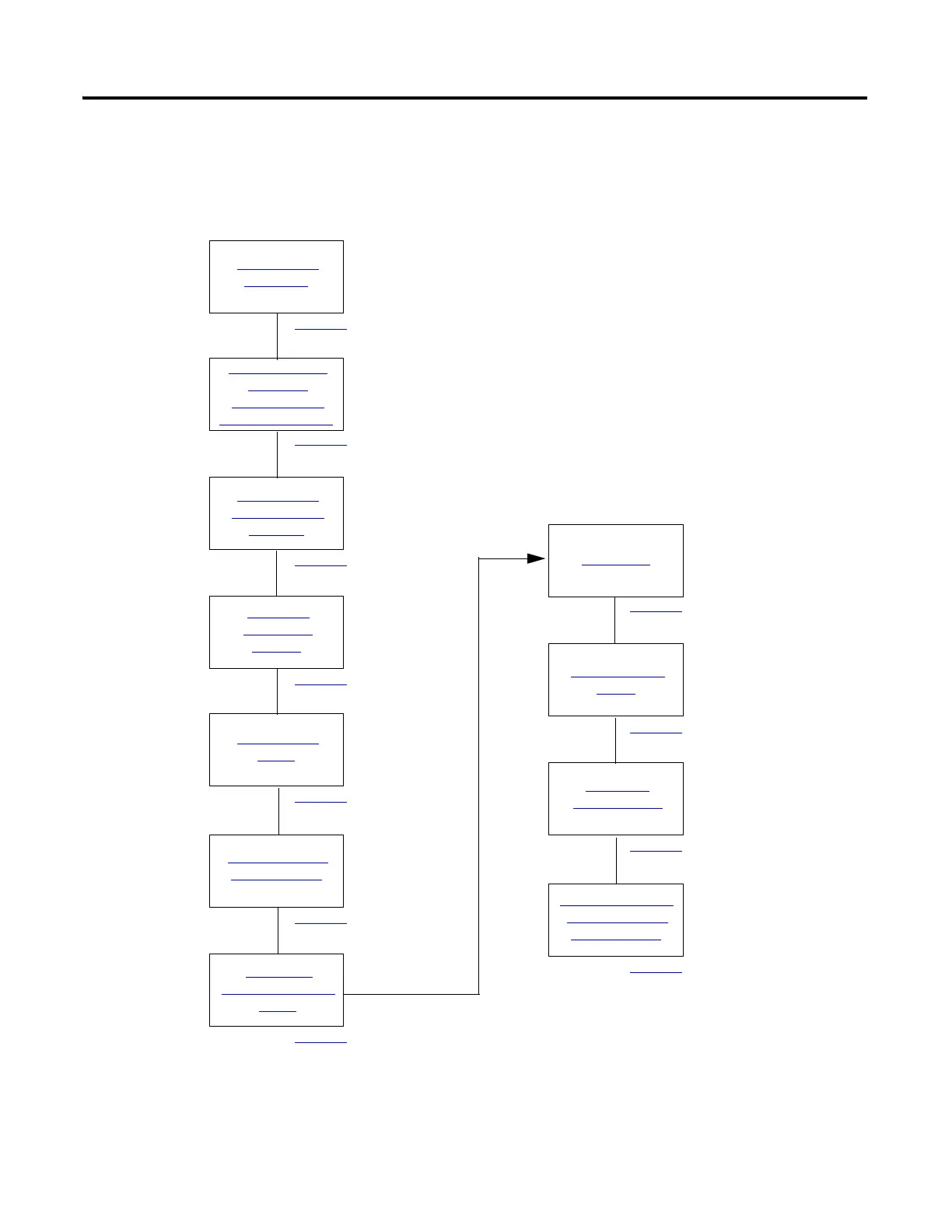

Follow These Steps
If you have a PanelView Plus terminal, complete these steps.
Create a New
Application
Create an RSLinx
Enterprise
Configuration in
FactoryTalkView ME
Create Device
Shortcuts to the
Controller
Create the
OB16_Light
Indicator
Create a Push
Button
Test the Indicator
and Push Button
page 191
page 192
page 194
page 200
page 203
page 205
Add a Goto
Configuration Mode
Button
page 207
Assign Keys
page 208
Assign an Initial
Screen
page 209
Transfer to
PanelView Plus
page 210
Test the Application
on the PanelView
Plus Application
page 212

Allen-Bradley PowerFlex 40 Specifications

General

Output Voltage	0 to Input Voltage
Enclosure	IP20
Control Method	V/Hz, Sensorless Vector Control
Communication	RS485
Frequency	0 to 400 Hz
Protection	Overload, Overvoltage, Undervoltage, Short Circuit
Operating Temperature	-10 to 50°C (14 to 122°F)
Storage Temperature	-40...70 °C (-40...158 °F)
Humidity	5% to 95% non-condensing
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC (depending on model)
