Allen-Bradley PowerFlex 40 User Manual

Publication IASIMP-QS001C-EN-P - October 2009 157
Create a PowerFlex 70 Application Chapter 12

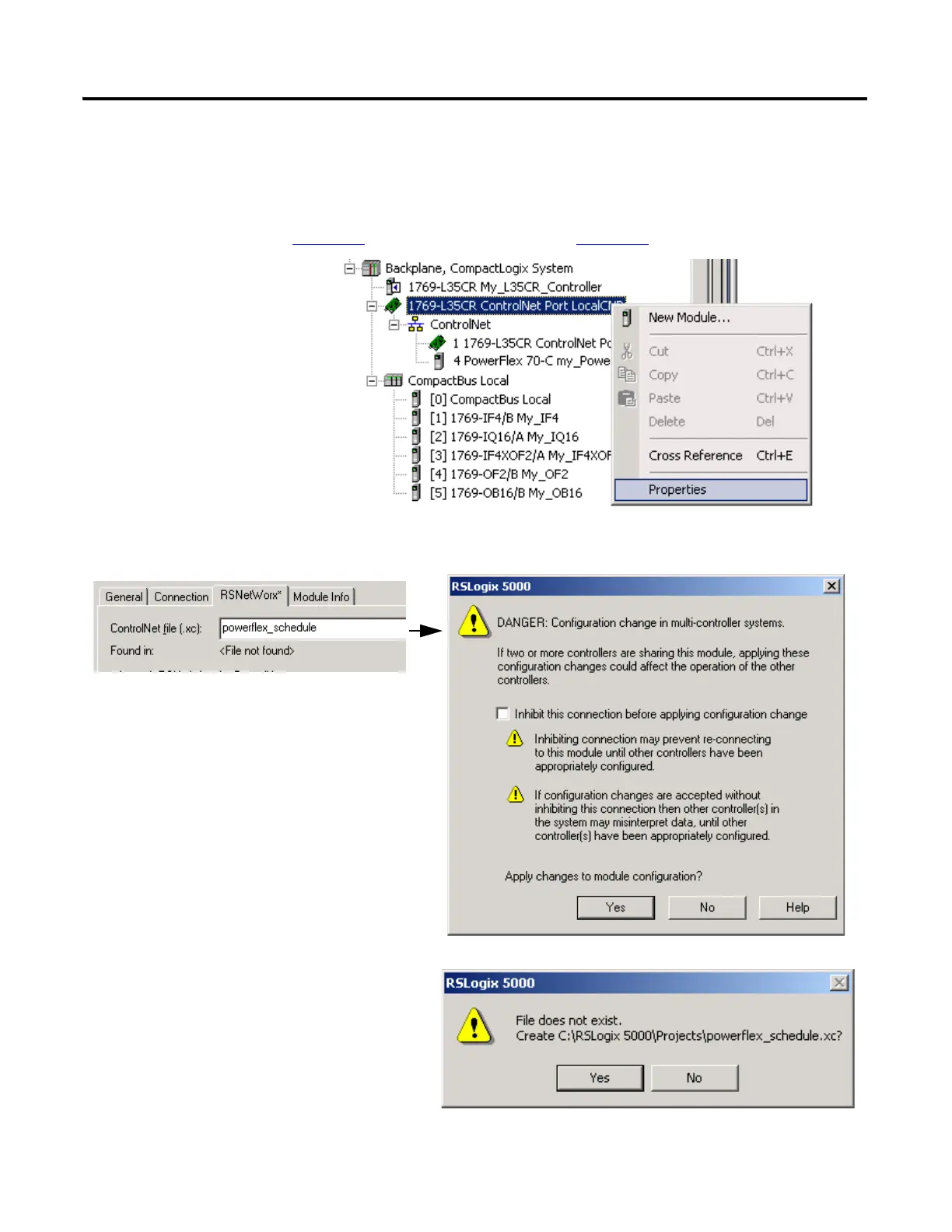

Schedule the ControlNet Network
ControlNet only
(for Ethernet/IP, skip to
page 161; for DeviceNet, skip to page 163)
1. Right-click the
ControlNet Port and
select Properties.
2. On the RSNetWorx tab, enter
a new ControlNet file name and
click Apply.
3. Click Yes.
4. Click Yes.

Allen-Bradley PowerFlex 40 Specifications

General

Output Voltage	0 to Input Voltage
Enclosure	IP20
Control Method	V/Hz, Sensorless Vector Control
Communication	RS485
Frequency	0 to 400 Hz
Protection	Overload, Overvoltage, Undervoltage, Short Circuit
Operating Temperature	-10 to 50°C (14 to 122°F)
Storage Temperature	-40...70 °C (-40...158 °F)
Humidity	5% to 95% non-condensing
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC (depending on model)
