Add Distributed I/O Modules to the Project Chapter 11
Test the Distributed I/O Light
EtherNet/IP, ControlNet, and DeviceNet

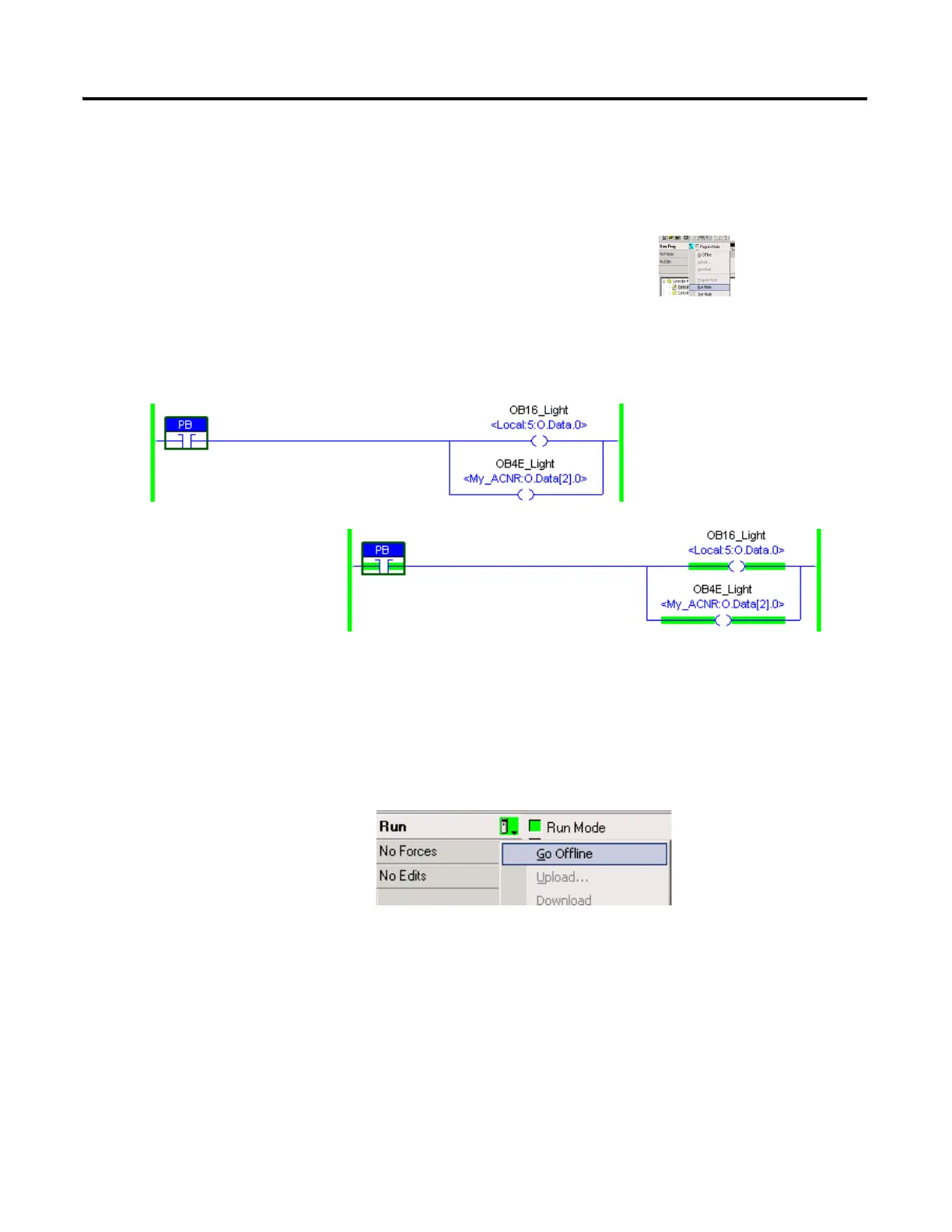

1. Move the keyswitch on your controller to RUN.
2. Select the PB and press Ctrl+T.
This toggles the state from 0 to 1 (off to on).
3. Verify that the light on both the local and distributed digital
output modules turn on.
4. Press Ctrl+T to toggle the state back to 0 (off).
5. Select Go Offline.
Off
On
ControlNet
Shown

Allen-Bradley PowerFlex 40 Specifications

General

Output Voltage	0 to Input Voltage
Enclosure	IP20
Control Method	V/Hz, Sensorless Vector Control
Communication	RS485
Frequency	0 to 400 Hz
Protection	Overload, Overvoltage, Undervoltage, Short Circuit
Operating Temperature	-10 to 50°C (14 to 122°F)
Storage Temperature	-40...70 °C (-40...158 °F)
Humidity	5% to 95% non-condensing
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC (depending on model)
