Add Distributed I/O Modules to the Project Chapter 11

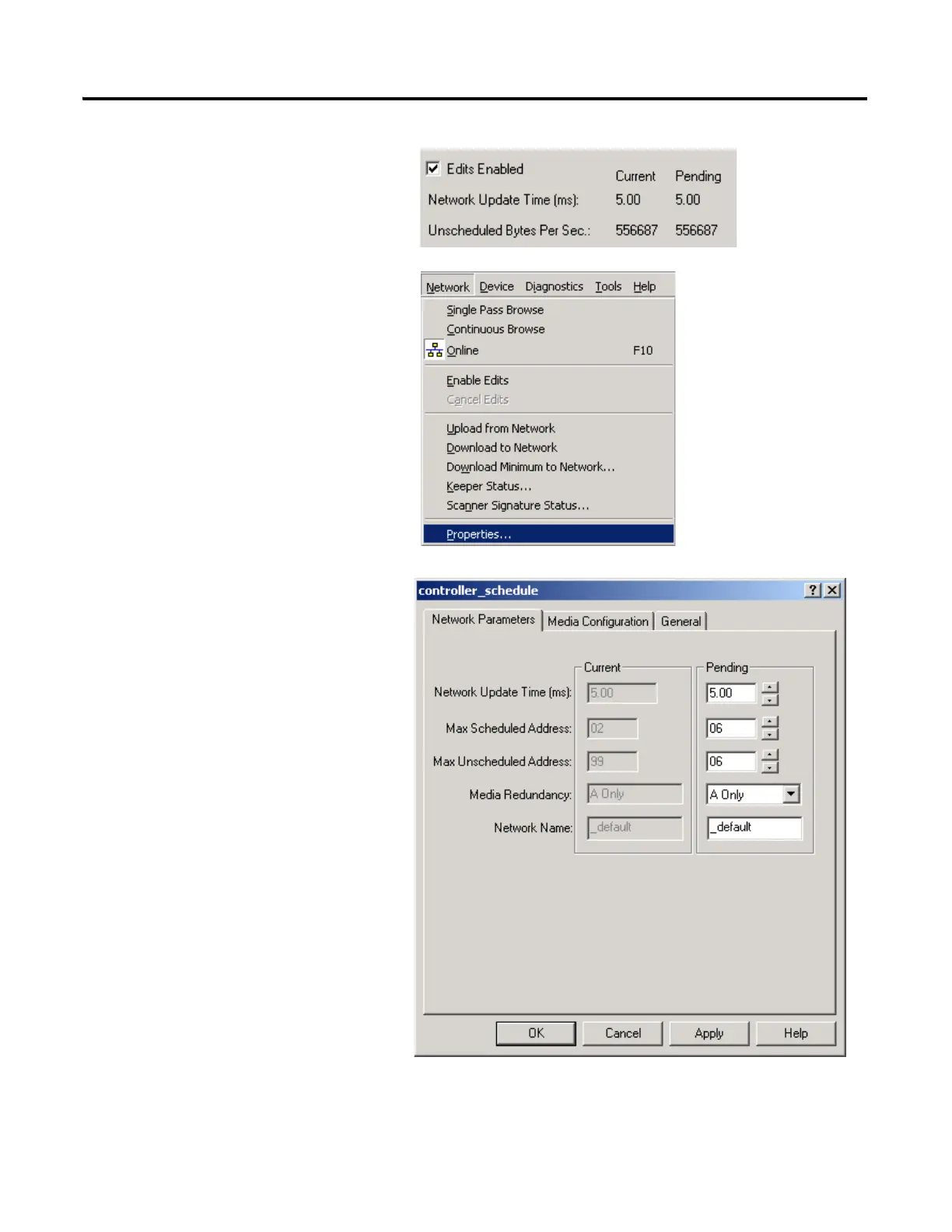

9. Check the Edits Enabled
checkbox.
10. From the Network menu,
choose Properties.
11. In the Pending column, select
a Max Scheduled Address
and Max Unscheduled
Address that are equal to the
largest node addresses in your
system.
This example uses 6.
12. Click OK.

Allen-Bradley PowerFlex 40 Specifications

General

Output Voltage	0 to Input Voltage
Enclosure	IP20
Control Method	V/Hz, Sensorless Vector Control
Communication	RS485
Frequency	0 to 400 Hz
Protection	Overload, Overvoltage, Undervoltage, Short Circuit
Operating Temperature	-10 to 50°C (14 to 122°F)
Storage Temperature	-40...70 °C (-40...158 °F)
Humidity	5% to 95% non-condensing
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC (depending on model)
