Chapter 14 Create a PanelView Plus Application
1769-L32C or 1769-L35CR controllers
(to complete this step on the 1769-L32E or 1769-L35E controllers, see page 194
;
for a 1769-L31 controller, skip to page 198
)

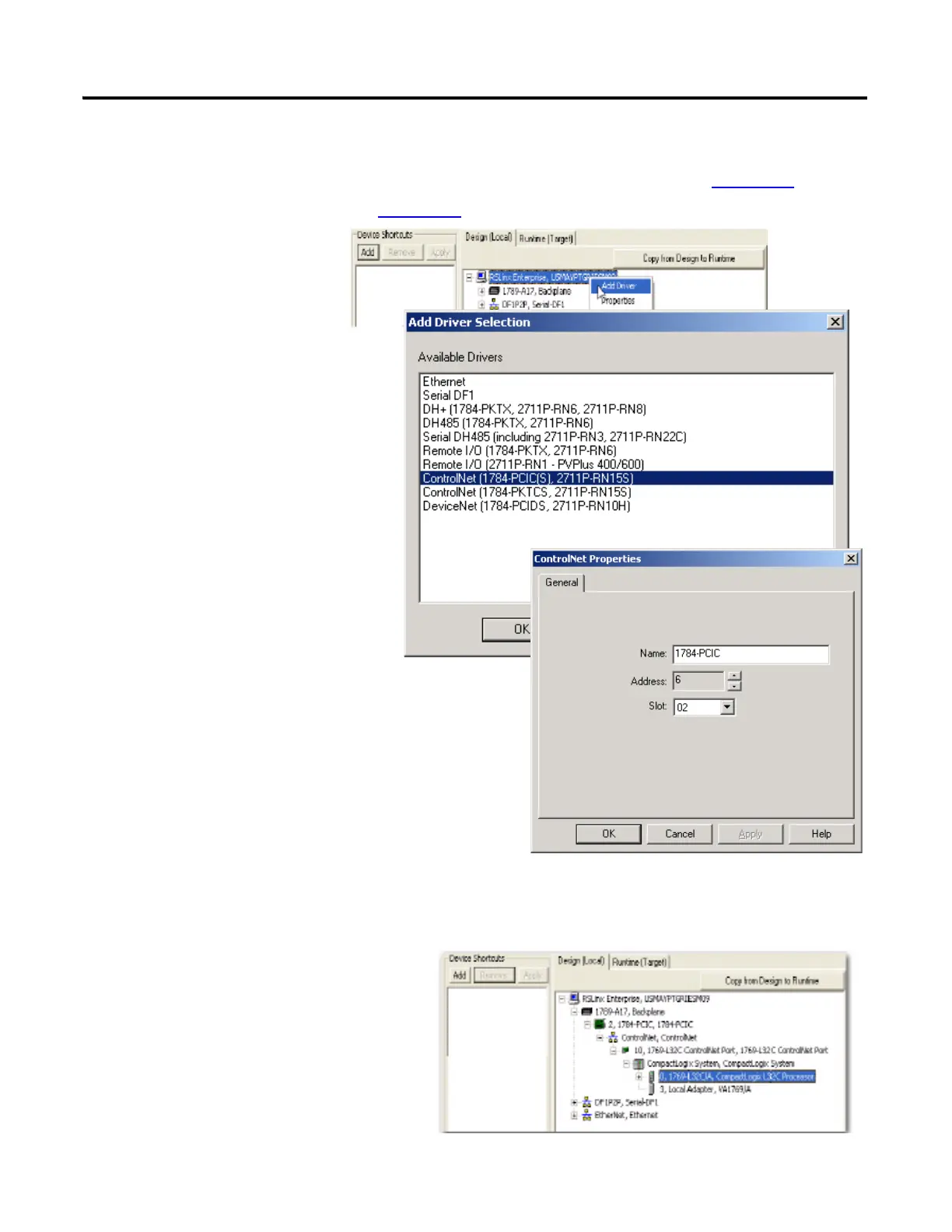

1. Right-click RSLinx
Enterprise and select
Add Driver.
2. Select the 1784-PCIC(S) driver
and click OK.
3. Define the properties for the
ControlNet card.
a. Keep the default Name to
represent the card in the
computer.
b. Select an available
ControlNet node Address
for the card in the computer.
c. Select any Slot number other
than 0 (which is reserved).
The slot number does not
matter, so any number other
than 0 works.
d. Click OK.
5. Expand the Backplane tree, select
your controller and click Add.

Allen-Bradley PowerFlex 40 Specifications

General

Output Voltage	0 to Input Voltage
Enclosure	IP20
Control Method	V/Hz, Sensorless Vector Control
Communication	RS485
Frequency	0 to 400 Hz
Protection	Overload, Overvoltage, Undervoltage, Short Circuit
Operating Temperature	-10 to 50°C (14 to 122°F)
Storage Temperature	-40...70 °C (-40...158 °F)
Humidity	5% to 95% non-condensing
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC (depending on model)
