204
Publication
IASIMP-QS001C-
EN-P - Octobe
r 2009
Chapter 14
Create a Pa
nelView Plus Application

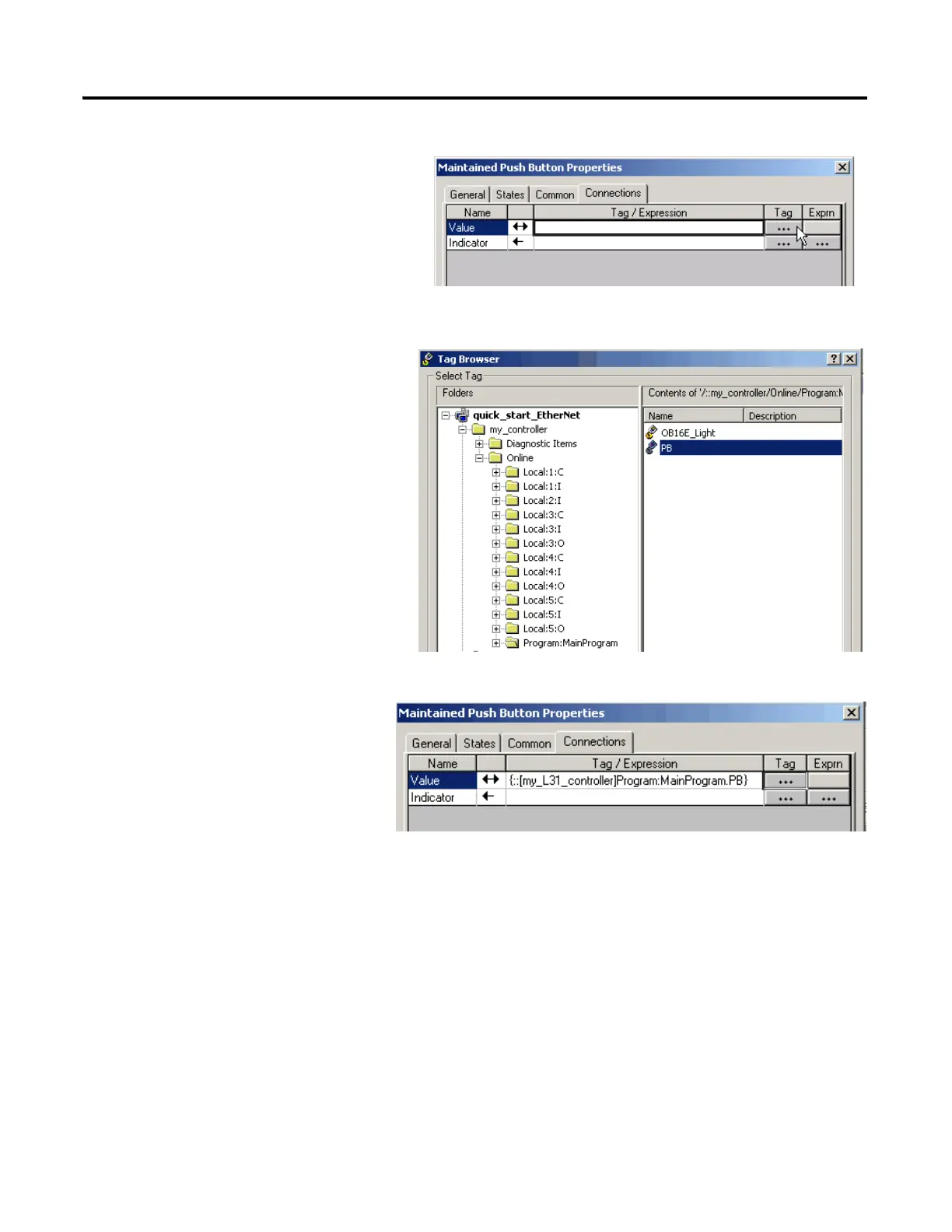

8.
Select the
Connections
tab
.
9.
In the V
alue ro
w
, click
...
under
Ta
g.
10.
Expand your controller shortcut
and select
Online > Program:
MainProgram
.
11.
Select
PB
and click
OK
.
The V
alue tag is populated.
12.
Clic
k
OK
.
203
205
