Allen-Bradley PowerFlex 40 User Manual

24 Publication IASIMP-QS001C-EN-P - October 2009
Chapter 1 Prepare the CompactLogix Hardware
1769-SDN module

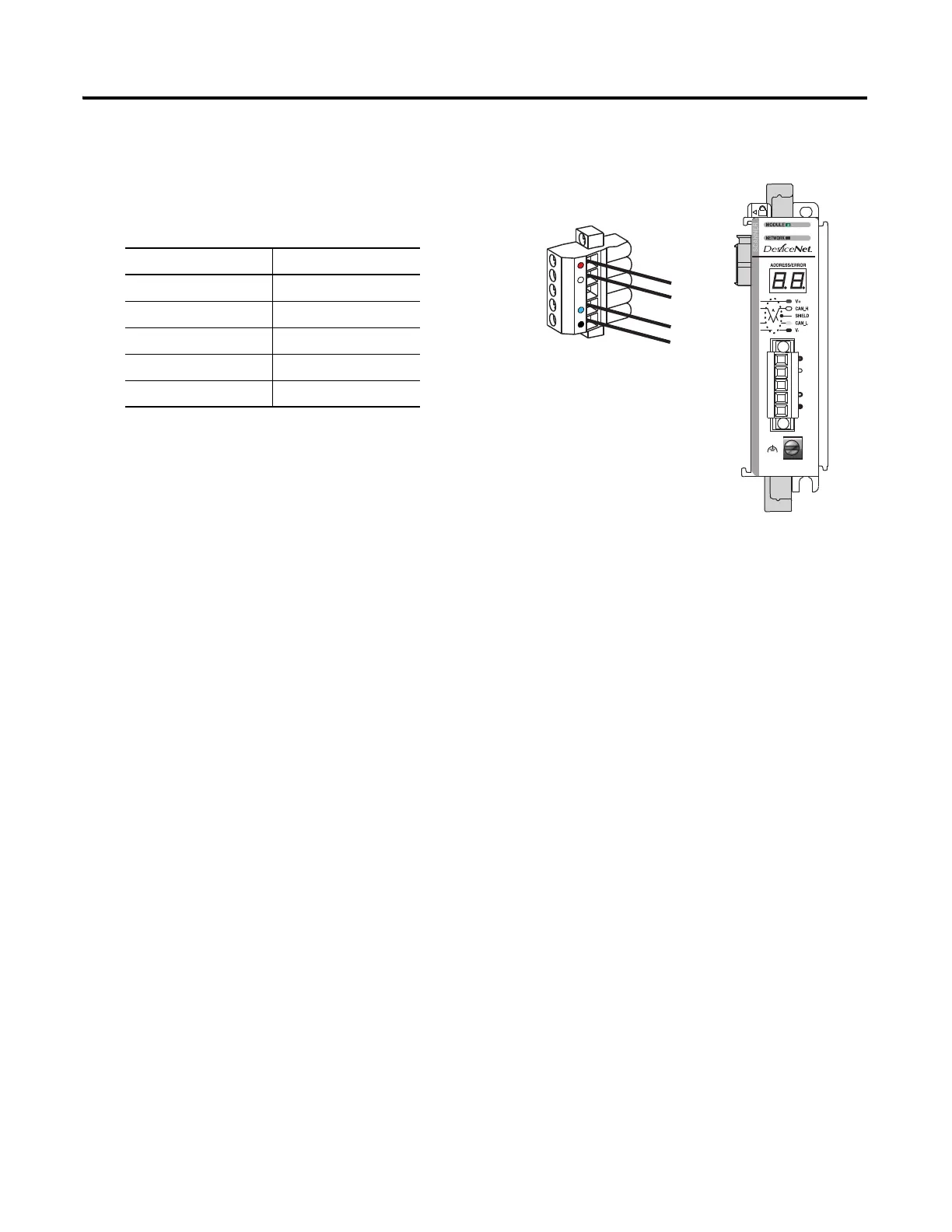

1. Connect a DeviceNet cable to the
removable connector.
2. Connect the removable connector to the
module.
Connect To
Red V+
White CAN High
Bare Shield
Blue CAN Low
Black V-

Allen-Bradley PowerFlex 40 Specifications

General

Output Voltage	0 to Input Voltage
Enclosure	IP20
Control Method	V/Hz, Sensorless Vector Control
Communication	RS485
Frequency	0 to 400 Hz
Protection	Overload, Overvoltage, Undervoltage, Short Circuit
Operating Temperature	-10 to 50°C (14 to 122°F)
Storage Temperature	-40...70 °C (-40...158 °F)
Humidity	5% to 95% non-condensing
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC (depending on model)
