Chapter 4 Prepare the PowerFlex 70 Drive
20-COMM-E EtherNet/IP Adapter for EtherNet/IP System

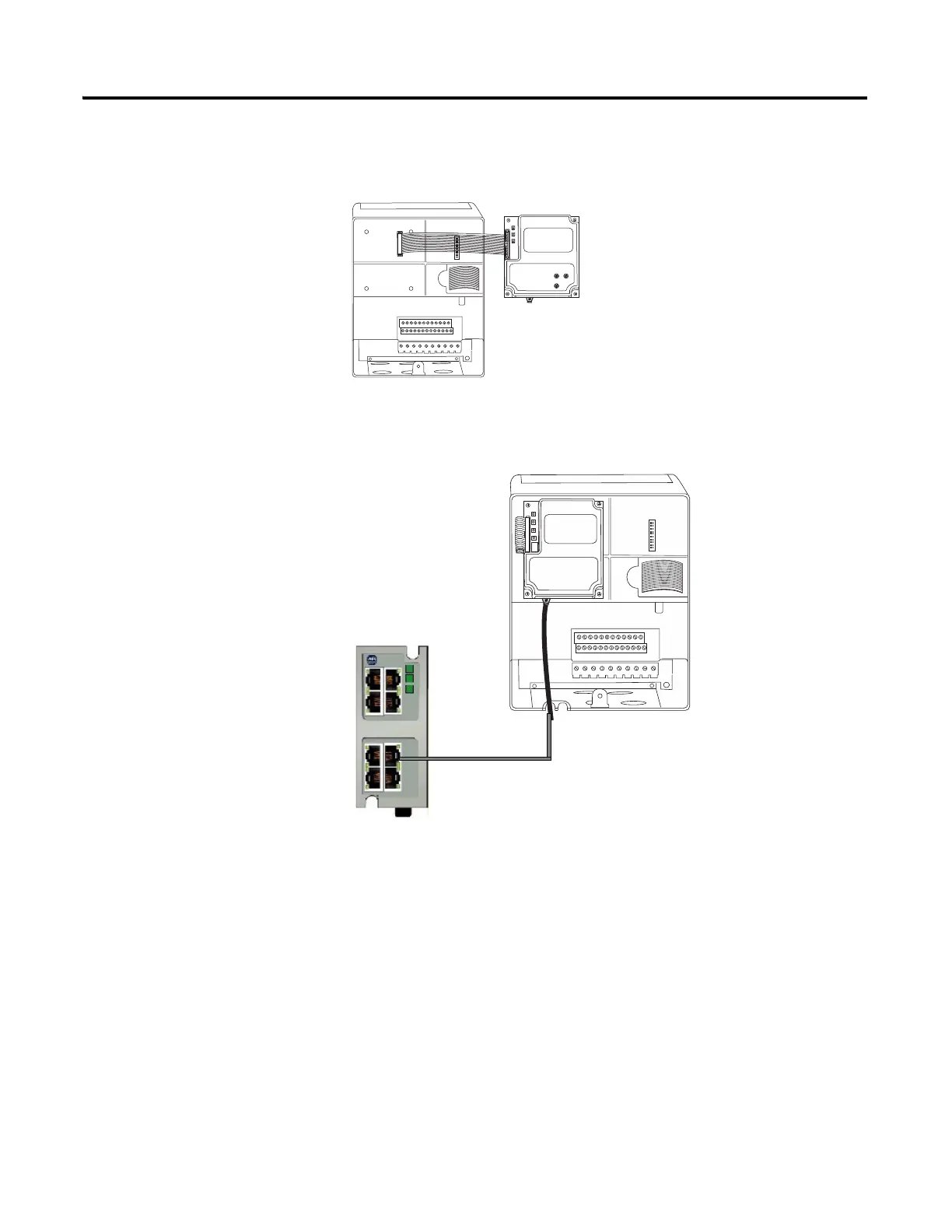

1. Connect the flat-ribbon
cable between the adapter
and the PowerFlex 70
drive.
2. Fold the cable under the
adapter without creasing
and secure the adapter on
the drive using the captive
screws.
3. Remove a knockout from
the bottom plate on the
drive route the Ethernet
cable through the hole.
4. Connect a CAT5
Ethernet cable between
the Ethernet adapter and
the Ethernet switch.
5. Replace drive cover.

Allen-Bradley PowerFlex 40 Specifications

General

Output Voltage	0 to Input Voltage
Enclosure	IP20
Control Method	V/Hz, Sensorless Vector Control
Communication	RS485
Frequency	0 to 400 Hz
Protection	Overload, Overvoltage, Undervoltage, Short Circuit
Operating Temperature	-10 to 50°C (14 to 122°F)
Storage Temperature	-40...70 °C (-40...158 °F)
Humidity	5% to 95% non-condensing
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC (depending on model)
