Allen-Bradley PowerFlex 40 User Manual

Publication IASIMP-QS001C-EN-P - October 2009 95
Configure the DeviceNet Network Chapter 9

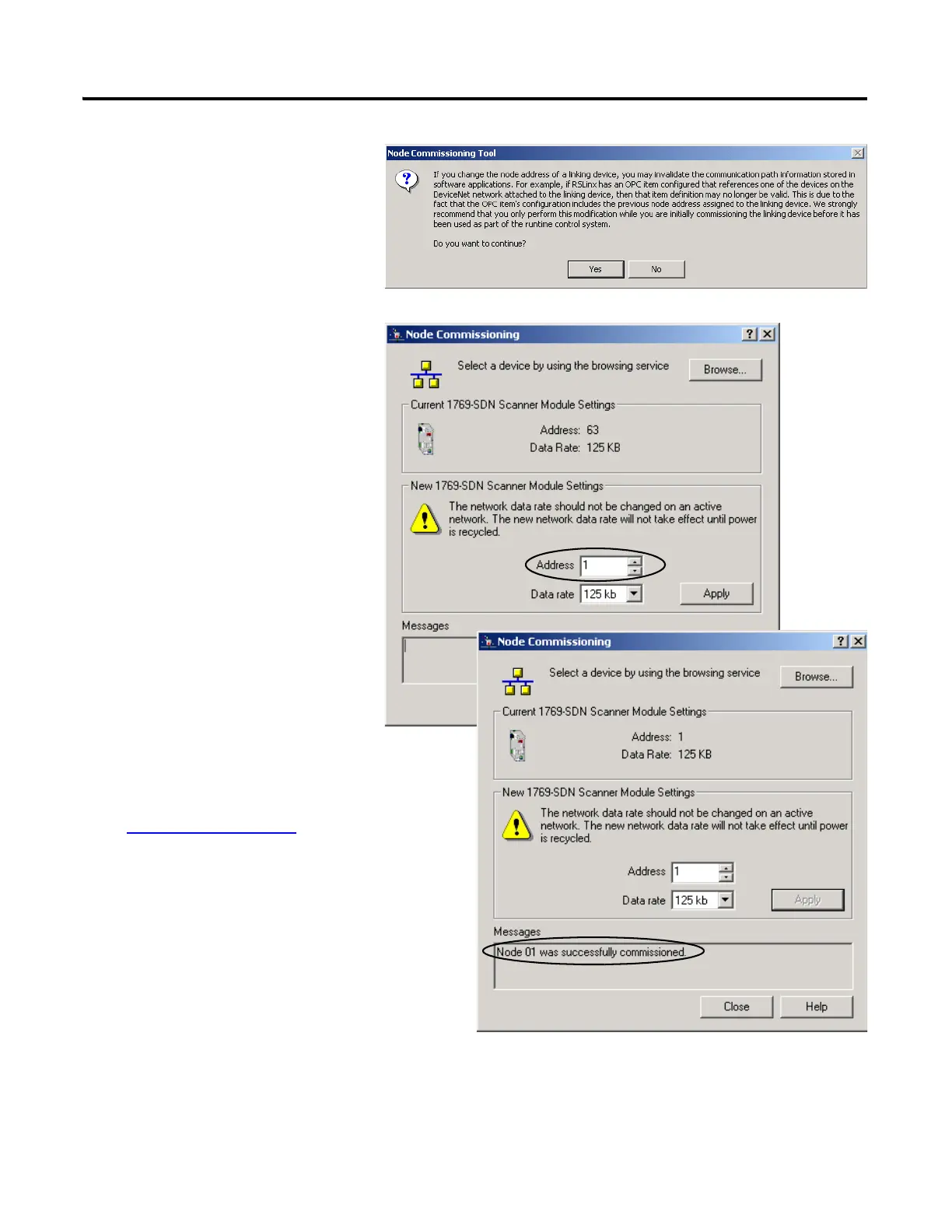

The Node Commissioning
dialog is populated with the
1769-SDN module’s current
settings.
8. Select 1 for the node Address
of the 1769-SDN and click
Apply.
The Address is applied and is
confirmed in the Messages box.
9. Record the node address on the
Network Worksheet
.
10. Click Close.
7. If you receive a linking device
warning, click Yes.

Allen-Bradley PowerFlex 40 Specifications

General

Output Voltage	0 to Input Voltage
Enclosure	IP20
Control Method	V/Hz, Sensorless Vector Control
Communication	RS485
Frequency	0 to 400 Hz
Protection	Overload, Overvoltage, Undervoltage, Short Circuit
Operating Temperature	-10 to 50°C (14 to 122°F)
Storage Temperature	-40...70 °C (-40...158 °F)
Humidity	5% to 95% non-condensing
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC (depending on model)
