Adjustments
ZA
-V BAG0087.11 01.20
107
Adjust according to the type of fertiliser and border distance
Fig. 69

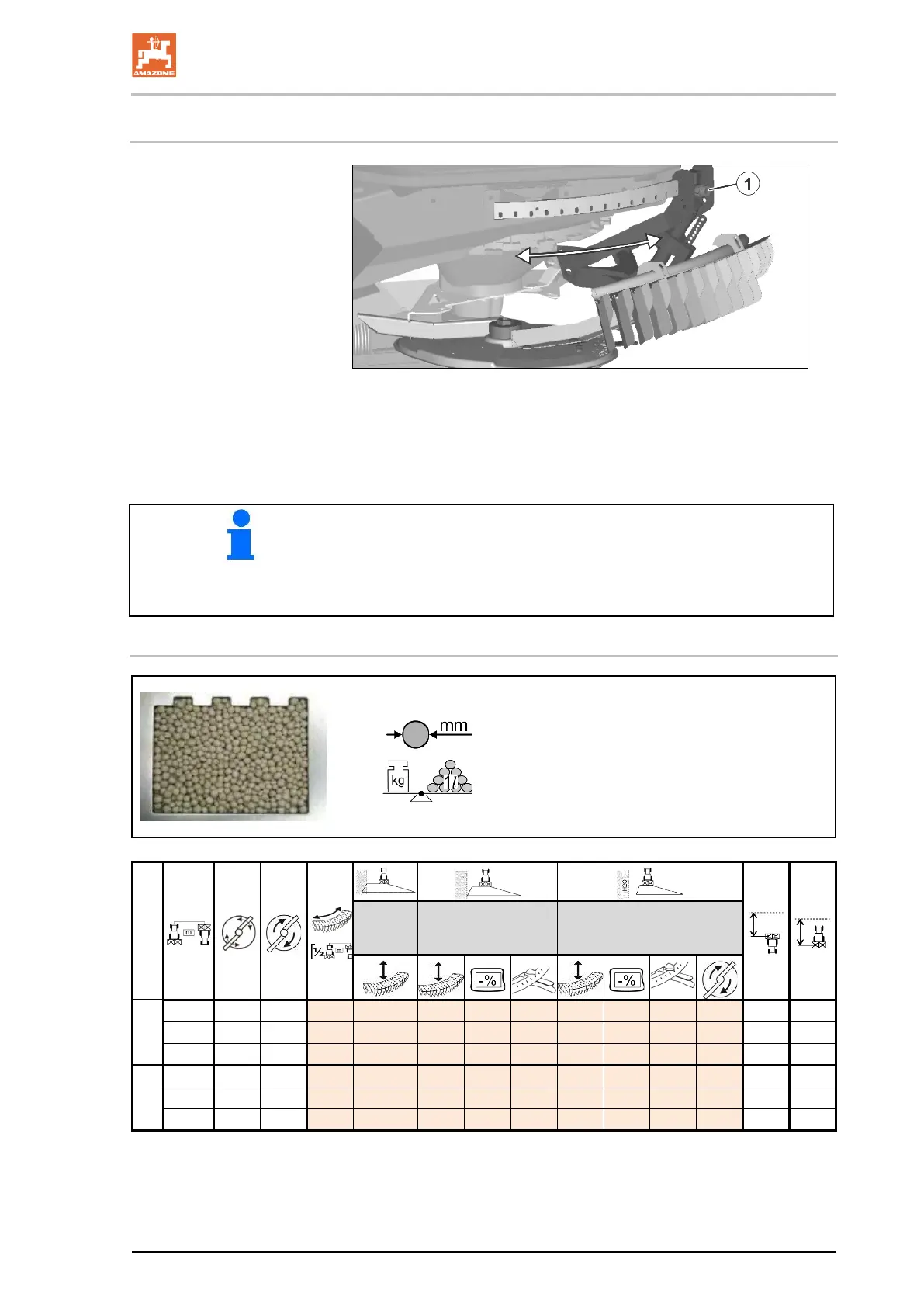

1. Pull the adjusting knob (1) and swivel the border spreading de-
flector up to the set value on the scale according to the setting
chart.
2. Let go of the adjusting knob, so that it catches in the scale.
• The values in the setting table are intended as guideline values,
since fertiliser condition may differ. Readjust the limiter if neces-
sary.
• The border/edge distance in the setting table always represents
half of the working width.
Extract from setting chart
YaraBela® EXTRAN 27
3,72 mm
1,03 kg/l
Calibration factor
1,00
ZA- V
Side
sprea-
ding
Boundary spreading Ditch spreading
V-Set 2
18,0
17/46 720
C 60 90 25 5 90 60 9 -220 18 -8
24,0
17/46 720
D 60 90 25 5 90 60 10 -220 23 -4
28,0
18/47 720 E 60 90 25 5 90 60 12 -220 27 1
V-Set 3
27,0
14/46 720
E 50 80 25 5 80 60 12 -220 28 -3
32,0
15/46 720
F 50 80 25 5 80 60 13 -220 31 0
36,0
15/48 720 G 50 80 25 5 80 60 14 -220 32 2
