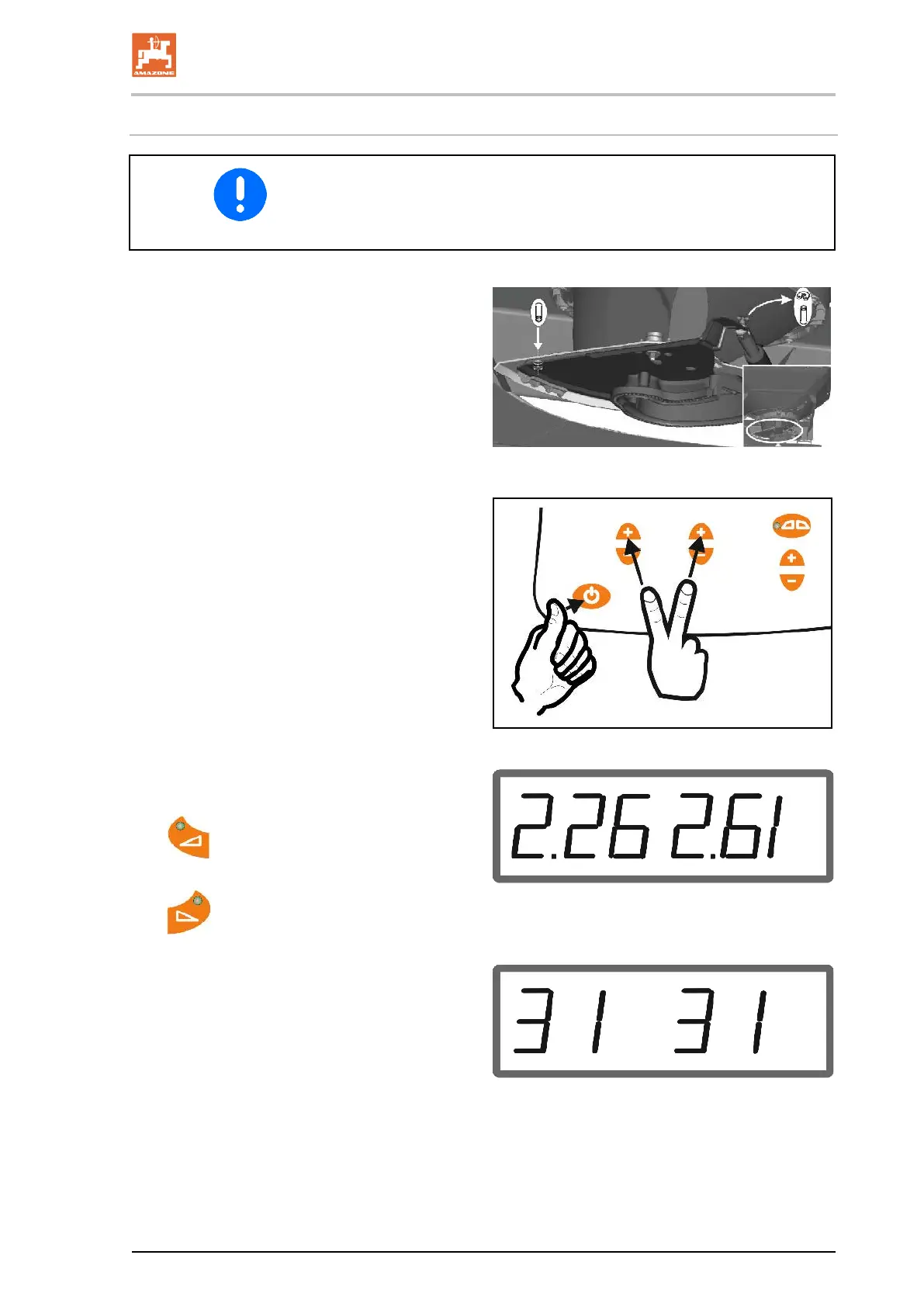

5.14.5 EasySet calibration
EasySet must be calibrated in the following situations:
• After working on the base plate or replacing the metering motor.
• If the desired and actual spread rate do not concur.
1. Disengage motor.
2. Put the shutter into the calibration position.
3. Mark calibration position with pivot pins
(10 mm diameter).
Fig.
33
EasySet is switched off!
4. Press the Power on, shutter position left +
and r
ight + buttons simulatneously and hold
for 3 seconds.
→ CAL for calibration appears briefly.
→ The shutter LEDs are flashing.
Fig.
34
→ The voltage values in volts for the left and
right shutters are shown.
5.
Confirm the calibration of the left
shutter.
6.
Confirm the calibration for the right
shutter.
Fig.
35
→ By confirming the calibration, the displayed
voltage in volts is assigned to shutter posi-
tion 31.
→ EasySet then switched itself off automati-
cally and the calibration is finished.
7. Attach the motor to the shutter again.
