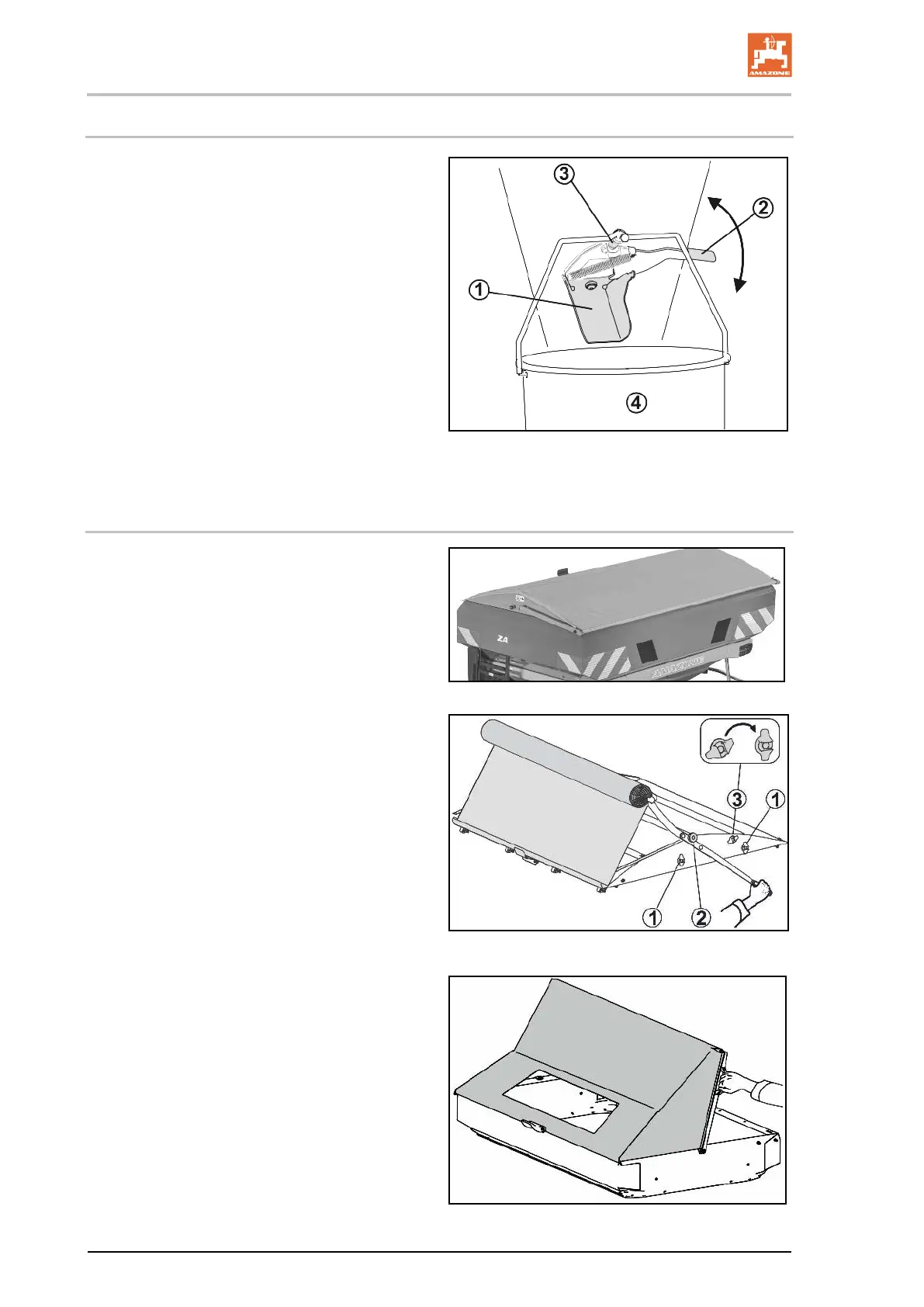

5.15 Calibration kit (option)
Using the calibration kit, the operating terminal
can determine the calibration factor of the ferti-
lizer.
The calibration factor and the application rate set
are used to calculate the necessary shutter posi-
tion.
Refer to the software operating manual Imple-
ment control.
(1) Calibration kit is mounted on the hopper at
the rear on the left.
(2) Hand lever
(3) Sensor
(4) Bucket to collect the fertilizer
37
5.16 Cover tarpaulin (optional)
Cover tarpaulin for dry goods to be spread, even
in event of wet weather.
The actuation of the rollover cover is carried out
ο manually using the hand lever
ο hydraulically using the tractor control
unit natural.
Cover tarpaulin with hand lever
(1) Locking mechanism
The tarpaulin locked in open and closed
position.
(2) Locking pin
Pull the locking pin for unlocking the cover
tarpaulin.
(3) Rotating locking mechanism for tarpaulin in
slightly opened cleaning position.
Thus the underside of the cover tarpaulin
can be cleaned.
