-V BAG0087.11 01.20
6.4 Adjusting the hydraulic system with the system setting screw
ZA-V Hydro
• Be sure to match the hydraulic systems of the tractor and the
implement.
• The implement hydraulic system is adjusted using the system
setting screw on the hydraulic block of the implement.
• Elevated hydraulic oil temperatures are the result of incorrect
adjustment of the system setting screw, caused by persistent
strain on the pressure relief valve of the tractor hydraulic system.
• Adjustments may only be made in a pressureless state!
• If there are hydraulic malfunctions between the tractor and the
implement during start-up, please contact your service partner.

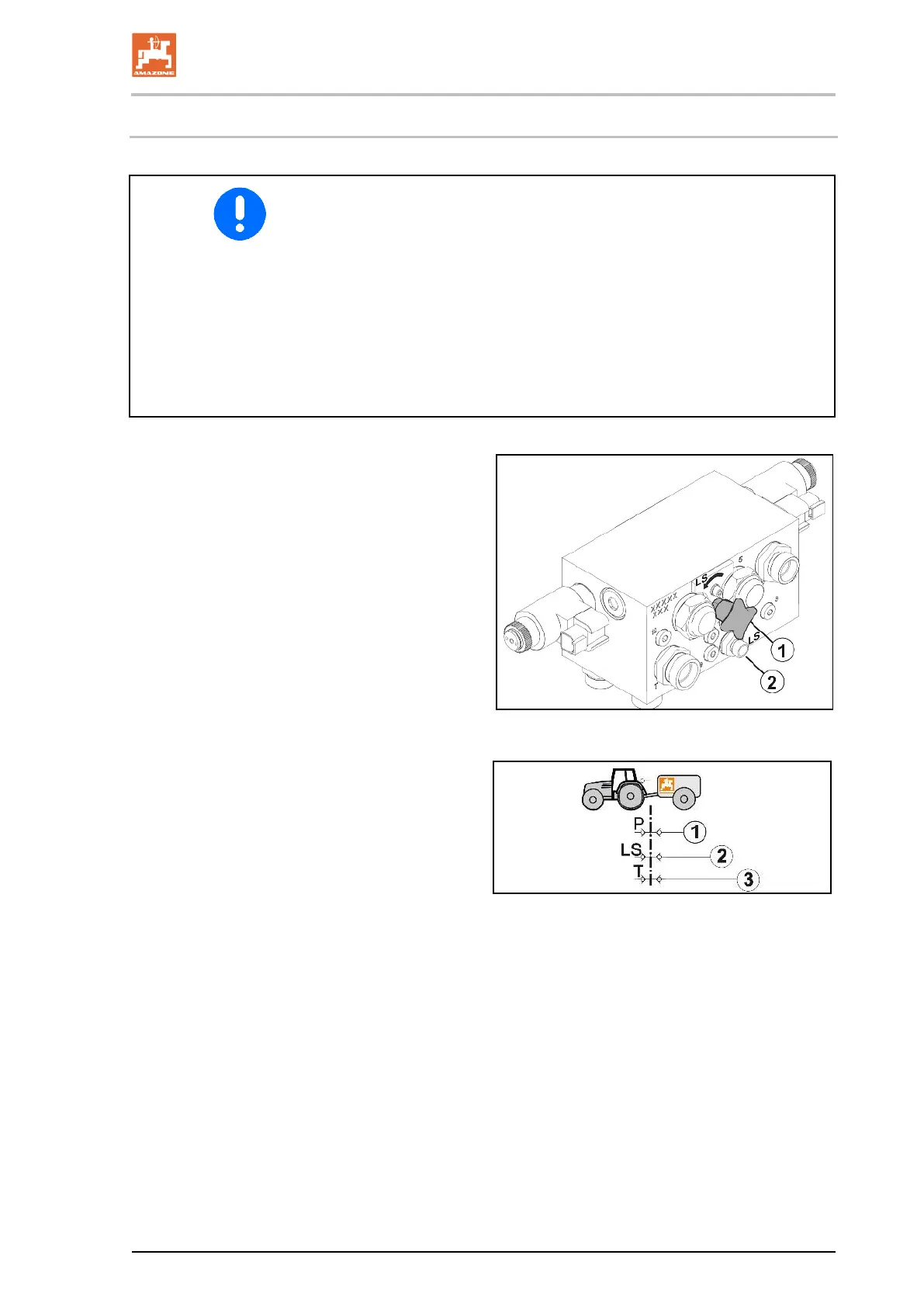

(1) System setting screw can be adjusted in
position A and B
(2) LS connection for the load sensing control
line
50
Implement-side connections in compliance with
ISO15657:
(1) P – feed line, pressure line, plug standard
width 20
(2) LS – control line, plug standard width 10
(3) T - return line, socket standard width 20
