Structure and function
ZA
-V BAG0087.11 01.20
39
5 Structure and function
The following section provides information on the machine structure
and the functions of the individual components.
5.1 Function

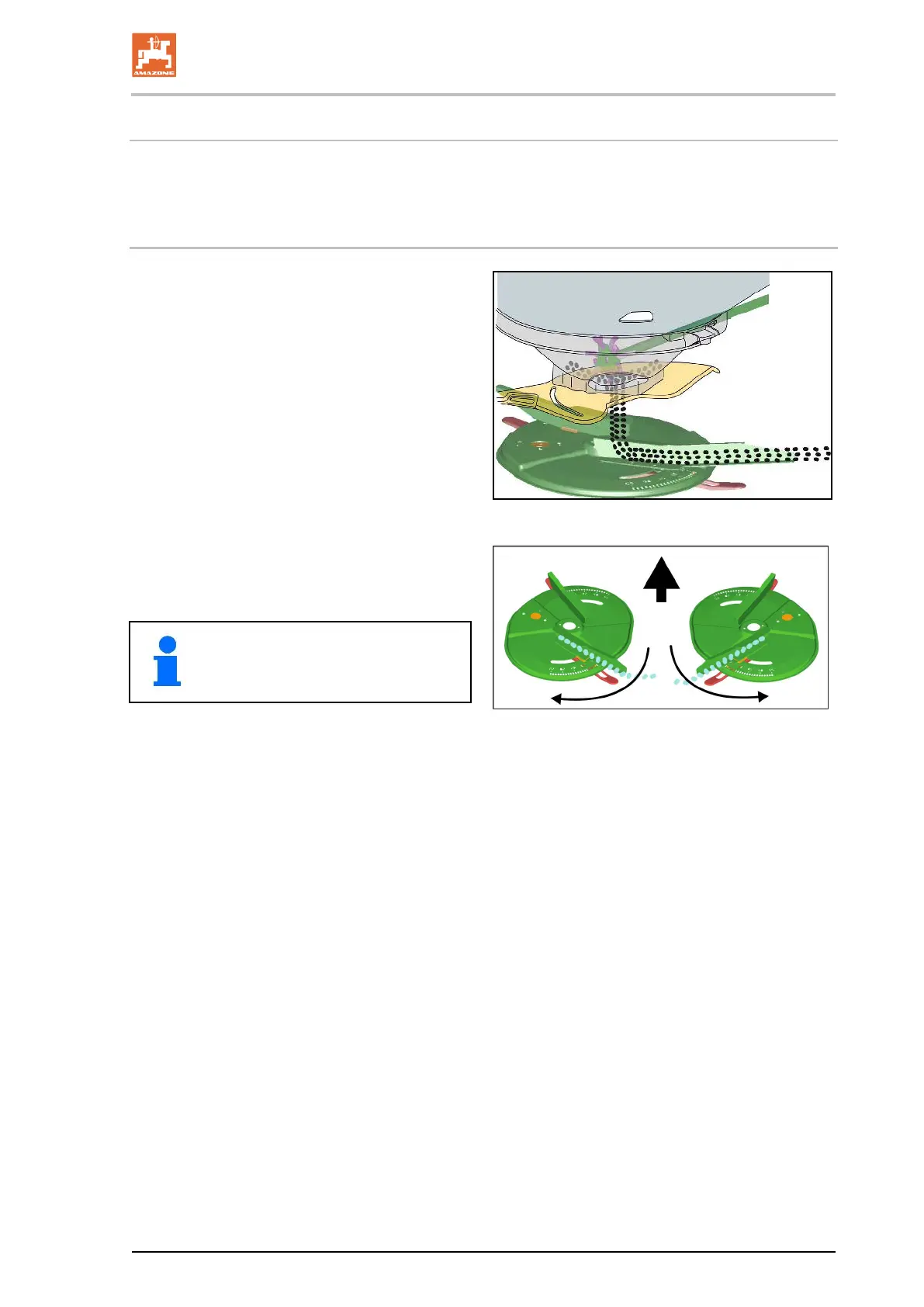

The AMAZONE ZA-V fertiliser spreader is
equipped with two hopper tips and replaceable
spreading discs (Fig. 7/1) that are driven from
the inside out in opposite directions and counter
to the direction of travel, and are equipped with
one short (Fig. 7
/2) and one long spreading vane
(Fig. 7/3).
The fertiliser is
•
transferred evenly by the agitator shaft from
the hopper onto the spreading discs.
• led outwards along the spreading vane and
discharged.
Use the setting chart to adjust the fertiliser
spreader to the fertiliser being distributed.
Fig.
7
Fig.
8
Perform a spread rate check before
using the fertiliser spreader.
