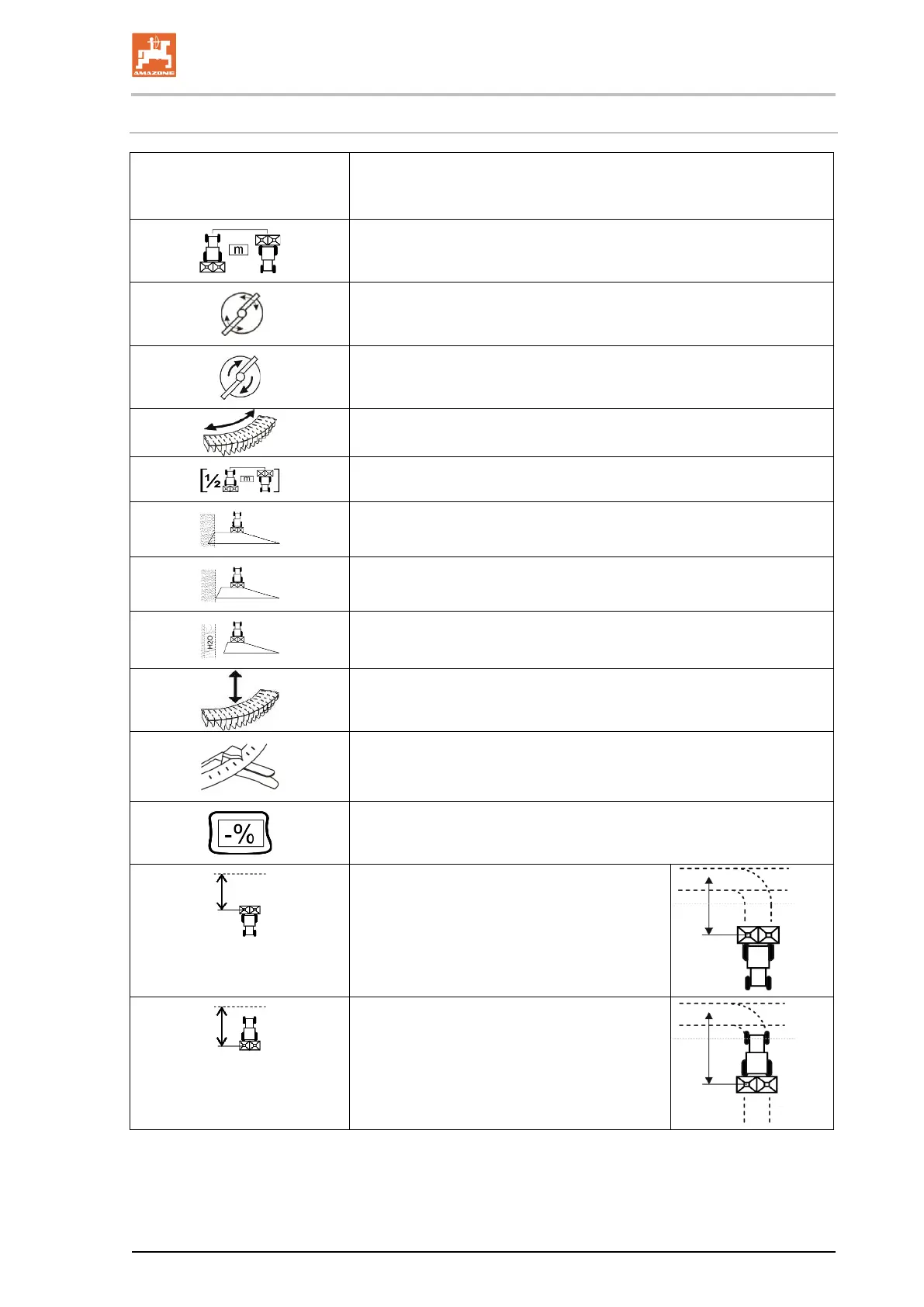

Symbols and units:
V-Set-2
Fit spreading vane units V-Set1, 2 or 3 onto the spreading disc for
one working width spectrum each
Working width in m (metre)
Spreading vane position
Spreader disc speed in rpm depending on the type of spreading
Limiter position
Half the working width in metres
Side spreading
Boundary spreading
Ditch spreading
Tilt of the limiter
Quantity reduction for boundary spreading / ditch spreading
Shutter position
Quantity reduction for boundary spreading / ditch spreading in % for
entry in the control terminal
Switch-on point (point at which the shutters
open) when driving into the field given as
distance in m.
Measured from the centre of the spreading
disc to the centre of the track in the head-
lands.
Switch-off point (point at which the shutters
close) prior to driving into the headlands giv
as distance in m.
Measured from the centre of the spreading
disc to the centre of the track in the head-
lands.
