6.1.1.1 Data required for the calculation

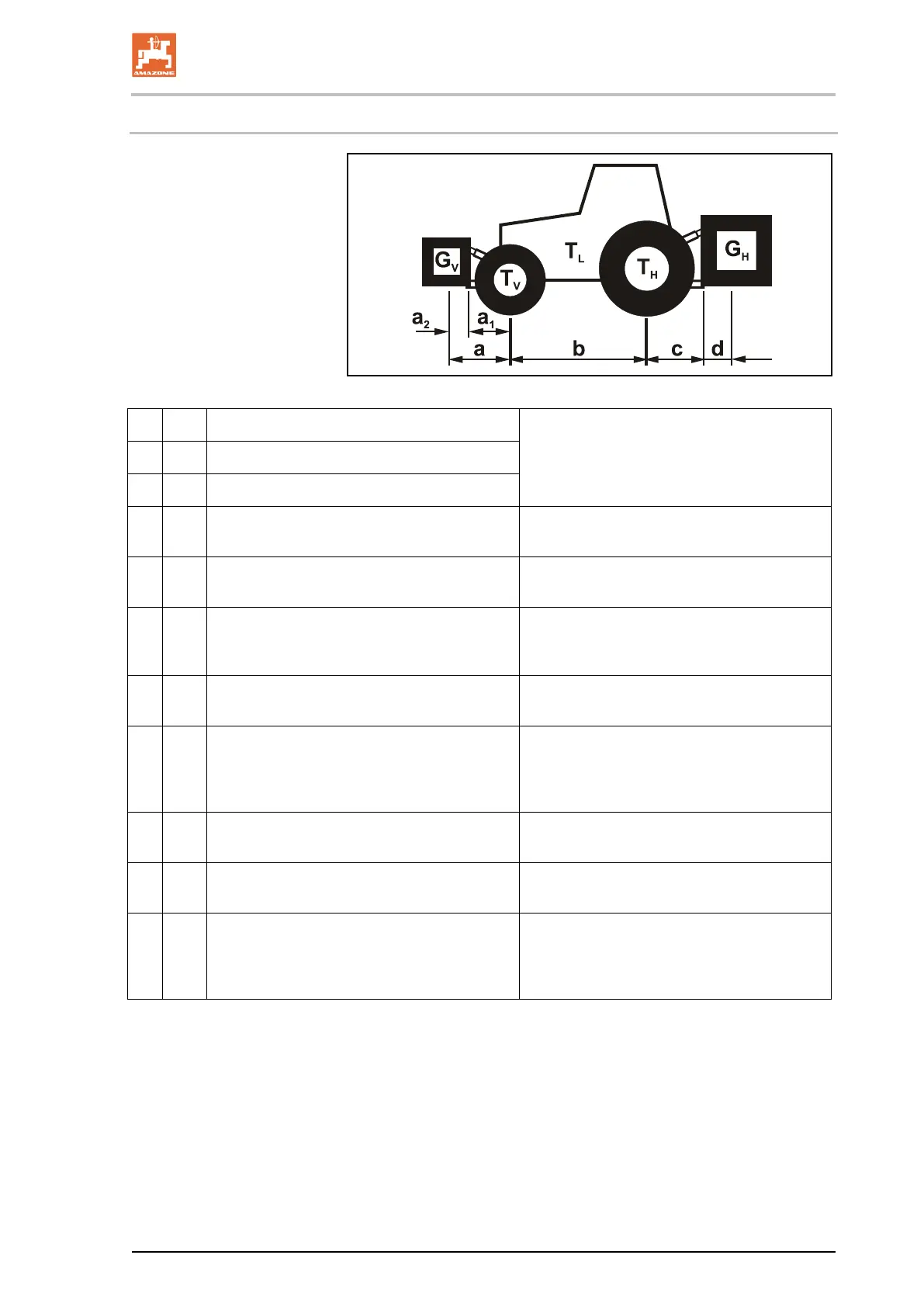

Fig. 49
T
L
[kg] Empty tractor weight
See tractor operating manual or vehicle
documentation
T
V
[kg] Front axle load of the empty tractor
T
H
[kg] Rear axle load of the empty tractor
G
H
[kg] Total weight of rear-mounted machine or
rear ballast
See technical data for machine or rear bal-
last
G
V
[kg] Total weight of front-mounted machine or
front ballast
See technical data for front-mounted ma-
chine or front ballast
a [m]
Distance between the centre of gravity of the
front machine mounting or the front weight
and the centre of the front axle (total a
1
+ a
2
)
See technical data of tractor and front ma-
chine mounting or front weight or measure-
ment
a
1
[m] Distance from the centre of the front axle to
the centre of the lower link connection
See tractor operating manual or measure-
ment
a
2
[m] Distance between the centre of the lower
link connection point and the centre of gravi-
ty of the front machine mount or front weight
(centre of gravity distance)
See technical data of front machine mount-
ing or front weight or measurement
b [m] Tractor wheel base See tractor operating manual or vehicle
documents or measurement
c [m]
Distance between the centre of the rear axle
and the centre of the lower link connection
See tractor operating manual or vehicle
documents or measurement
d [m] Distance between the centre of the lower
link connection point and the centre of gravi-
ty of the rear-mounted machine or rear bal-
last (centre of gravity distance)
See technical data of machine
