January 2016 Page 7–5
Chapter 7. Communication Protocols
7

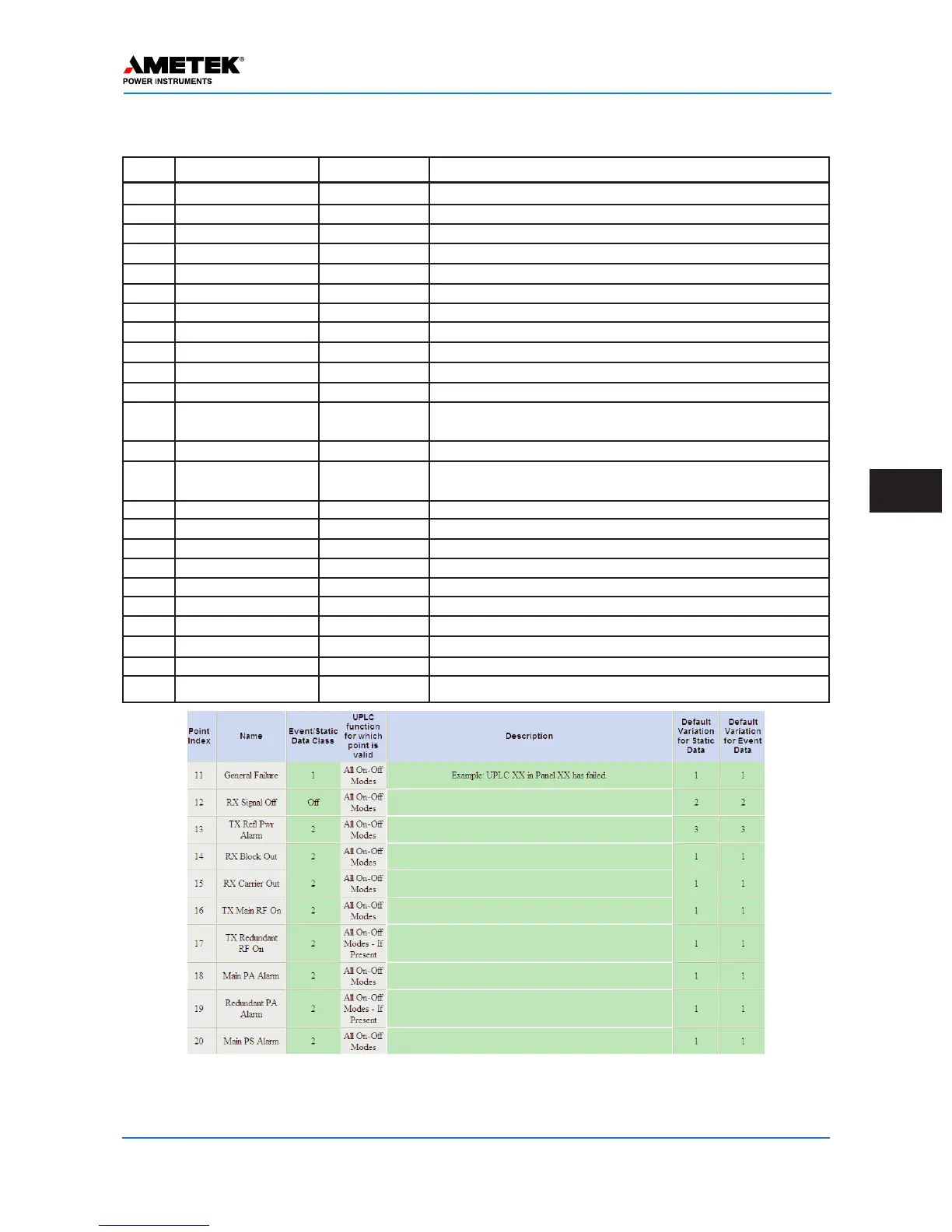

Figure 7–4. DNP Binary Inputs / UPLC™ Outputs Settings Page
(Admin > Protocol > DNP > UPLC-II™ Outputs)
Table 7–3. UPLC-II™ Outputs – DNP Points (FSK Mode)
Point Name Setting Mode Definition
13 General Failure All FSK Hardware Failure in the UPLC
™
14 RX Fade Alarm All FSK Rec. Level has Dropped Below Fade Alarm Setting
15 RX Noise Alarm All FSK Noise Alarm has Occurred
16 RX Good Chanel All FSK Channel Good (Rec. Signal Level & Freq. OK)
17 TX Refl Pwr Alarm All FSK % Refl Power Exceeded Alarm Threshold Setting
18 TX Main RF On All FSK TX Level on Main Power Amp Above 0.5W
19 TX Red. RF On All FSK TX Level on Redundant Power Amp Above 0.5W
20 Main PA Alarm All FSK Main Power Amp has Failed
21 Red. PA Alarm All FSK Redundant Power Amp has Failed
22 Main PS Alarm All FSK Main Power Supply has Failed
23 Red. PS Alarm All FSK Redundant Power Supply has Failed
24 Trip 1 Out Non-PC FSK Trip 1 Output Present (LF Trip for 2F,
Line Relay Trip for 3F, Trip A for 4F)
25 Trip 2 Out 3F/4F Only Trip 2 Output Present (DTT Trip for 3F, Trip B for 4F)
26 Guard 1 Out Non-PC FSK Guard 1 Output Present (HF Guard for 2F
LR Guard for 3F, Guard A for 4F)
27 Guard 2 Out 3F/4F Only Guard 2 Output Pres. (DTT Guard/3F, Guard B/4F)
28 CB Trip 1 Out Non-PC FSK Checkback Trip 1 Output Present (Rec. Trip 1 Freq.)
29 CB Trip 2 Out 3F/4F Only Checkback Trip 2 Output Present (Rec. Trip 2 Freq.)
30 Trip Pos. Out Phase Comp. Trip Positive Output Present
31 Trip Neg. Out Phase Comp. Trip Negative Output Present
32 TX Shift High Freq All FSK Transmit Freq. Commanded to Shift High in Freq.
33 TX Shift Low Freq All FSK Transmit Freq. Commanded to Shift Low in Freq.
34 TX Shift Ch A Trip 4 Freq. Only TX Freq. Keyed to Chan A Trip Freq. (F4)
35 TX Shift Ch B Trip 4 Freq. Only TX Freq. Keyed to Chan B Trip Freq. (F2)
36 TX Shift ChAB Trip 4 Freq. Only TX Freq. Keyed to Chan A/B Trip Freq. (F1)
To Next Page
