AMX NXT-CV10 User Manual

Firmware Pages and Descriptions
95
10" Modero Touch Panels
Video Adjustment Page
The Video Setup page (FIG. 91) (accessed by pressing the Video Adjustment button on the Setup page) sets the
Video properties of the incoming video signal from an NXA-AVB/ETHERNET Breakout Box.
The elements of the Video Setup page are described in the table below:

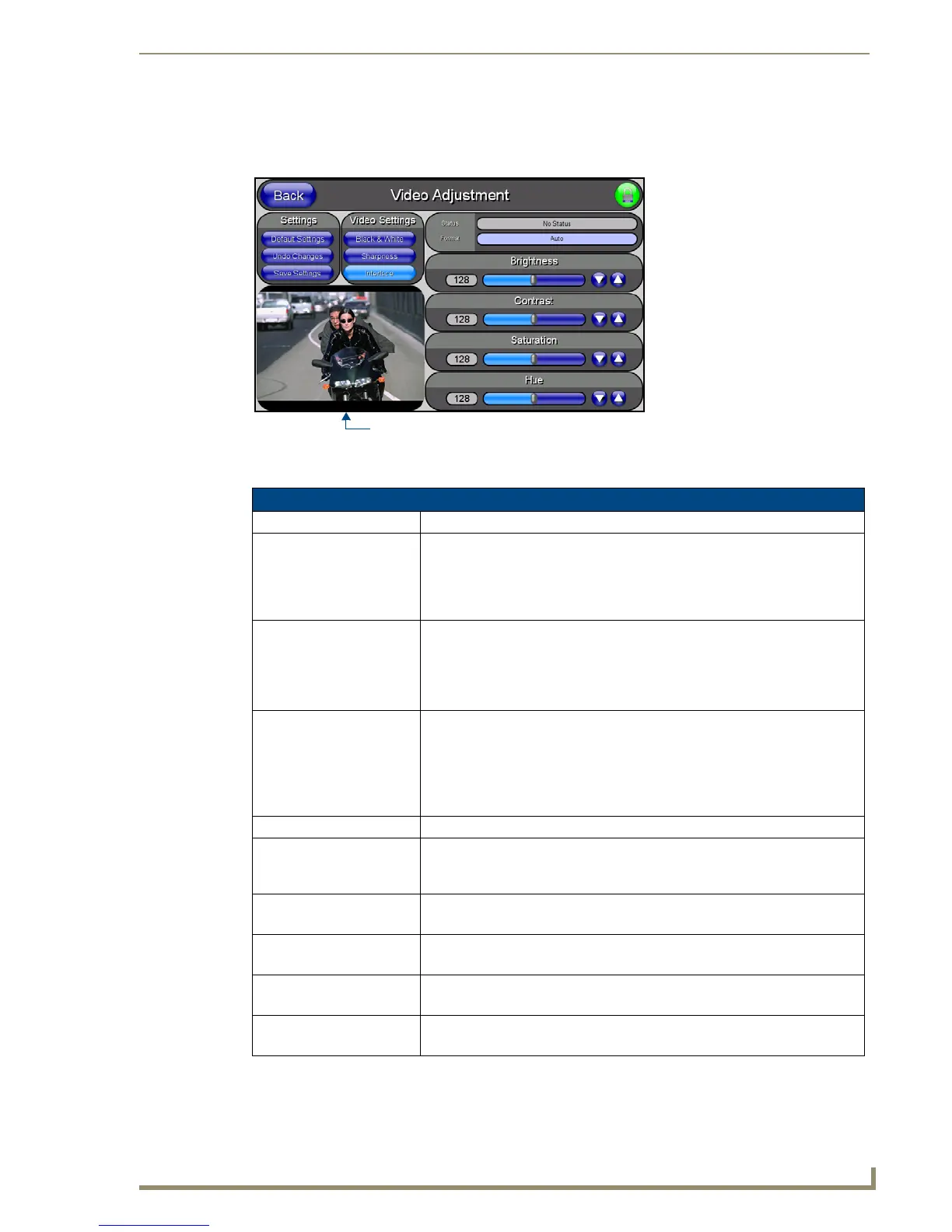

FIG. 91 Video Setup page (showing default values)
Video Setup Page Elements
Back: Saves the changes and returns you to the previously active touch panel page.
Connection Status icon: This visual display of the connection status allows the user to have a current
visual update of the panel’s connection status regardless of what page is
currently active.
• A Lock only appears on the icon if the panel has established a connection
with a currently secured target Master (requiring a username and password).
Settings: • The Default Settings button sets the video settings to their default values
(indicated in this table).
• The Undo Changes button disregards any changes made on the page since
the last settings were saved.
• The Save Settings button saves any changes made to this page.
Video Settings: • The Black & White button toggles the Black & White display mode.
Default = Off.
• The Sharpness button toggles the Interpolate (Sharpness) feature.
Default = Off.
•The Interlace button toggles the Interlacing feature.
Default = On.
Status: Displays whether or not a video-sync signal is detected.
Format: Allows you to press this blue field and cycle through a choice of available video
formats (NTSC, PAL, SECAM, or Auto detect).
• Default = Auto.
Brightness: Use the UP/DN buttons to alter the brightness level of the incoming signal.
• Range = 0 - 255, default = 128.
Contrast: Use the UP/DN buttons to alter the contrast level of the incoming signal.
• Range = 0 - 255, default = 128.
Saturation: Use the UP/DN buttons to alter the color saturation level of the incoming signal.
• Range = 0 - 255, default = 128.
Hue: Use the UP/DN buttons to alter the hue level of the incoming signal.
• Range = 0 - 255, default = 128.
Incoming Video signal
Once done making your screen
adjustments, SAVE SETTINGS.

AMX NXT-CV10 Specifications

General

Dimensions (WxDxH)	283 x 84 x 202 mm
Ethernet LAN (RJ-45) ports	1
Pixel pitch	0.28 x 0.28 mm
Aspect ratio	16:9
Screen shape	Flat
Display diagonal	10 \
Display brightness	350 cd/m²
Display resolution	800 x 480 pixels
Contrast ratio (typical)	350:1
USB Type-A downstream ports quantity	2
Certification	FCC 15 B, CE, EN60950
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
NVIDIA G-SYNC	No

Weight and Dimensions

Weight (without stand)	1200 g
