CV10 Touch Panel Accessories
27
10" Modero Touch Panels
Checking the NXT-BP charge
1.
Press the Battery Life Indicator button (FIG. 28) once to illuminate the Battery Life LEDs and display the
percent charge remaining on the battery (this indication lasts a few seconds).
2. Charge the NXT-BP battery by either inserting it into the battery base or from within the optional NXT-
CHG charger (which can sequentially charge up to two batteries).
Installing an NXT-BP into the NXA-BASE/1
The base does not directly connect to a power supply. Instead, it receives the power necessary to charge the
battery from the Modero panel (through the Panel Interface connector).
1. Install the NXT-BP battery into the base’s battery compartment with the label-side facing up.
2. Align the battery connector with its corresponding battery connector port (located in the battery
compartment shown in FIG. 29).
NXA-BASE/1 Specifications
Dimensions (HWD): • 0.93" x 5.96" x 6.89" (2.36 cm x 15.14 cm x 17.51 cm)
Power Requirements: • 1.4 A @ 12 VDC (max power draw while charging a single battery)
Weight: • Base unit: 0.75 lbs (0.34 kg)
• Base and 1 battery: 1.75 lbs (0.79 kg)
Features: • Charge time for single depleted battery: ~ 5 - 8 hours
• Must be connected to a Modero unit utilizing a 12 VDC-compliant power
supply
Operating / Storage
Environment:
• Operating Temperature: 0° C (32° F) to 40° C (104° F)
• Operating Humidity: 20% - 85% RH
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
Included Accessories: • NXA-BASE/1 (FG2250-05k): 1 battery base and 1 NXT-BP battery
Other AMX Equipment: • NXT-CHG Kit (FG2250-50K):
1 charger and 2 NXT-BP batteries
• NXT-BP battery pack (FG2255-10) (additional)
Before beginning the installation of the battery base to the Modero panel, verify the
Modero panel has the latest firmware. Only the latest build incorporates the
necessary updates for using the Modero with the NXA-BASE/1. From the Battery
Base page, verify that the battery base is loaded with the latest NXA-BASE/1
firmware (v2.xx or higher).

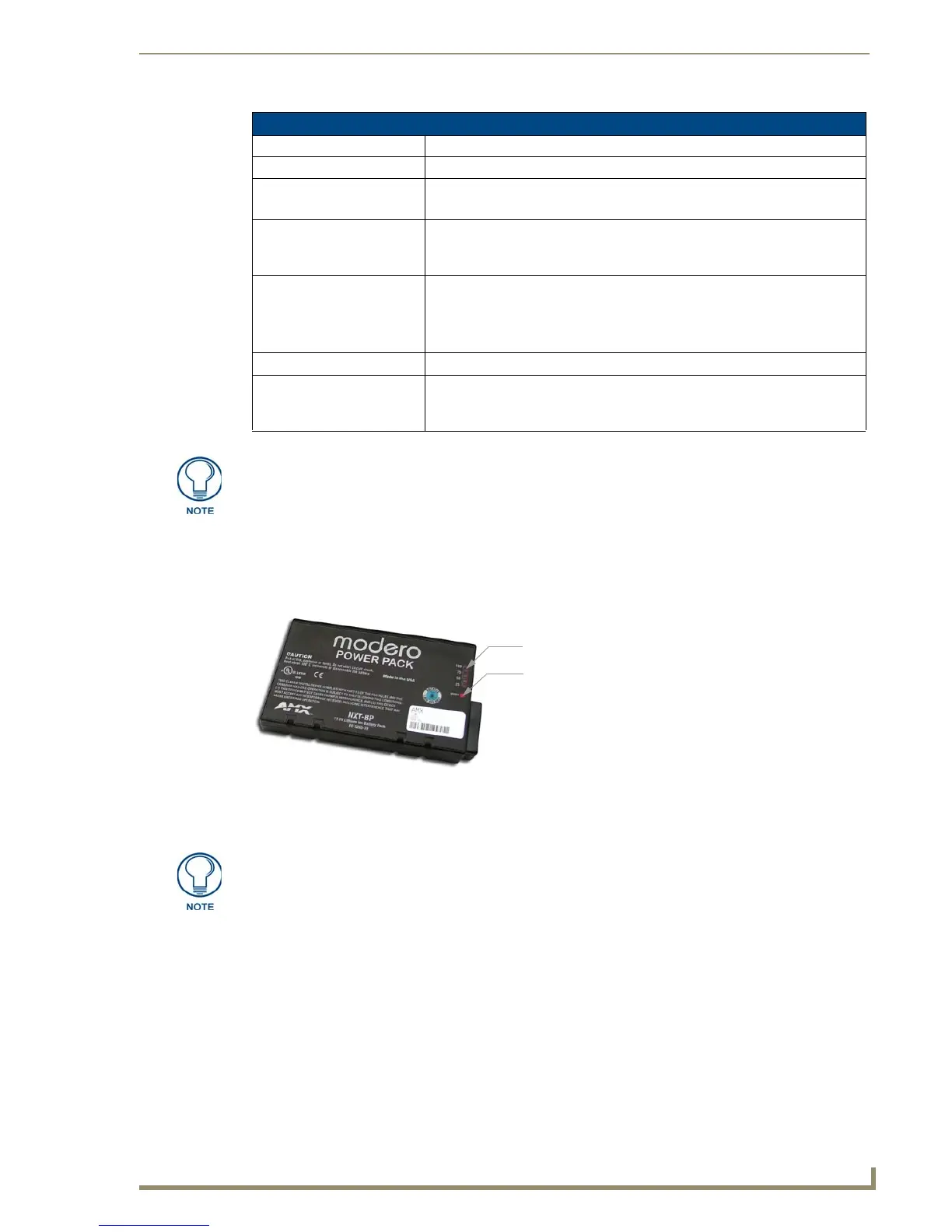

FIG. 28 NXT-BP Battery Pack (showing the battery life indicator and button)
Battery Life Indicator button
Battery Life (Charge) Display
It is recommended to fully charge this battery before using it to power an NXT-CV10
panel. If the 25% LED indicator is blinking, recharge your battery immediately.
This blinking indicates there is less than 5% of a charge remaining on the battery.
