AMX NXT-CV10 User Manual

Configuring Communication
74
10" Modero Touch Panels
Using your NetLinx Master to control the G4 panel
Refer to your particular NetLinx Master’s instruction manual for detailed information on how to download the
latest firmware from www.amx.com. This firmware build enables SSL certificate identification and
encryption, HTTPS communication, ICSP data encryption, and disables the ability to alter the Master security
properties via a TELNET session.
Once the Master’s IP Address has been set through NetLinx Studio version 2.x or higher:
1. Launch your web browser.
2. Enter the IP Address of the target Master (ex: http://198.198.99.99) into the web browser’s Address field.
3. Press the Enter key on your keyboard to begin the communication process between the target Master and
your computer.
Initially, the Master Security option is disabled (from within the System Security page) and no
username and password is required for access or configuration.
Both HTTP and HTTPS Ports are enabled by default (via the Manage System > Server page).
If the Master has been previously configured for secured communication, click OK to accept the
AMX SSL certificate (if SSL is enabled) and then enter a valid username and password into the
fields within the Login dialog.
4. Click OK to enter the information and proceed to the Master’s Manage WebControl Connections
window.
5. This Manage WebControl Connections page (FIG. 76) is accessed by clicking on the Manage
connections link (within the Web Control section within the Navigation frame). Once activated, this page
displays links to G4 panels running the latest G4 Web Control feature (previously setup and activated on
the panel).
6. Click on the G4 panel name link associated with the target panel. A secondary web browser window
appears on the screen (FIG. 77).
Verify your NetLinx Master’s IP Address and System Number have been properly
entered into the Master Connection section of the System Settings page.
In order to fully utilize the SSL encryption, your web browser should incorporate the an encryption
feature. This encryption level is displayed as a Cipher strength.

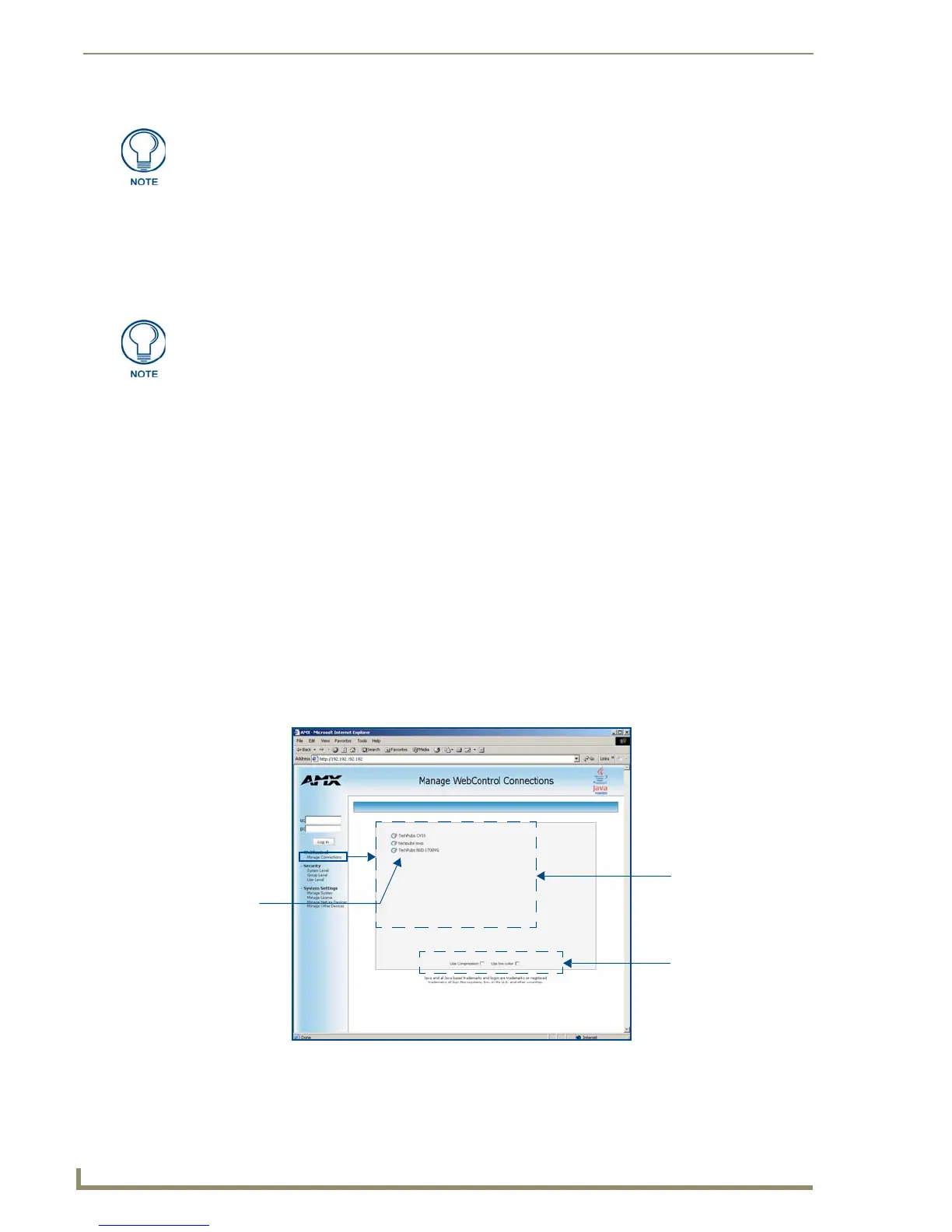

FIG. 76 Manage WebControl Connections page (populated with compatible panels)
Compatible
devices field
G4 panels
Compression
Options
(showing G4
WebControl links)

AMX NXT-CV10 Specifications

General

Dimensions (WxDxH)	283 x 84 x 202 mm
Ethernet LAN (RJ-45) ports	1
Pixel pitch	0.28 x 0.28 mm
Aspect ratio	16:9
Screen shape	Flat
Display diagonal	10 \
Display brightness	350 cd/m²
Display resolution	800 x 480 pixels
Contrast ratio (typical)	350:1
USB Type-A downstream ports quantity	2
Certification	FCC 15 B, CE, EN60950
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
NVIDIA G-SYNC	No

Weight and Dimensions

Weight (without stand)	1200 g
