Configuring Communication
71
10" Modero Touch Panels
3. Press the Master IP/URL field to open a Keyboard and enter the Master IP Address (obtained from the
Diagnostics - Networking Address dialog of the NetLinx Studio application).
4. Click Done to accept the new value and return to the System Settings page.
5. Do not alter the Master Port Number value (this is the default value used by NetLinx).
6. Enter a username and password (into their respective fields) if the target Master has been previously
secured.
7. Press the Back button to open the Protected Setup page.
8. Press the on-screen Reboot button to both save any changes and restart the panel.
Master Connection section - NetLinx Master Ethernet IP Address - Listen Mode
In this mode, you must add the Modero panel IP Address into the URL List of the Master (using NetLinx
Studio). This mode sets the Modero panel to "listen" for broadcasts from the Master (using the panel IP from
its URL list).
1. Obtain either a Static IP for the Modero panel (from your System Administrator) or a DHCP Address
from the IP Settings of the System Settings page.
The DHCP/Static field (in the IP Settings section of the System Settings page) must be set to
DHCP to get Dynamic IP information for the panel.
Press the on-screen Reboot (from the Protected Setup page) to both save any changes and restart
the panel.
After power-up, press the grey Front Setup Access button for 3 seconds to access the Setup page.
Navigate to the Setup > Protected Setup > System Settings page and note the newly obtained
Dynamic IP Address information from the IP Settings section. This information is then entered into
the URL List for the connected NetLinx Master.
2. Toggle the Type field until Ethernet is selected (from the Master Connection section of the System
Settings page).
3. Press the Mode field (to set the connection Mode) until the choice cycles to the word Listen.
The System Number and Master IP/URL fields are then greyed-out.
4. Enter a username and password (into their respective fields) if the target Master has been previously
secured.
5. Select the OnLine Tree tab from the Workspace window.
6. Select Diagnostics > URL Listing from the Main menu (FIG. 73).
7. Enter the System and Device number for the specific Master associated with your panel (as seen in the
OnLine Tree tab).
8. Click Add and enter the IP Address of the Modero touch panel into the Add URL dialog.
9. Click OK to enter your IP Address and add it to the list.
10. Click Done once you are finished adding your panel information to the list.
11. Press the on-screen Reboot button to save any changes and restart the panel.

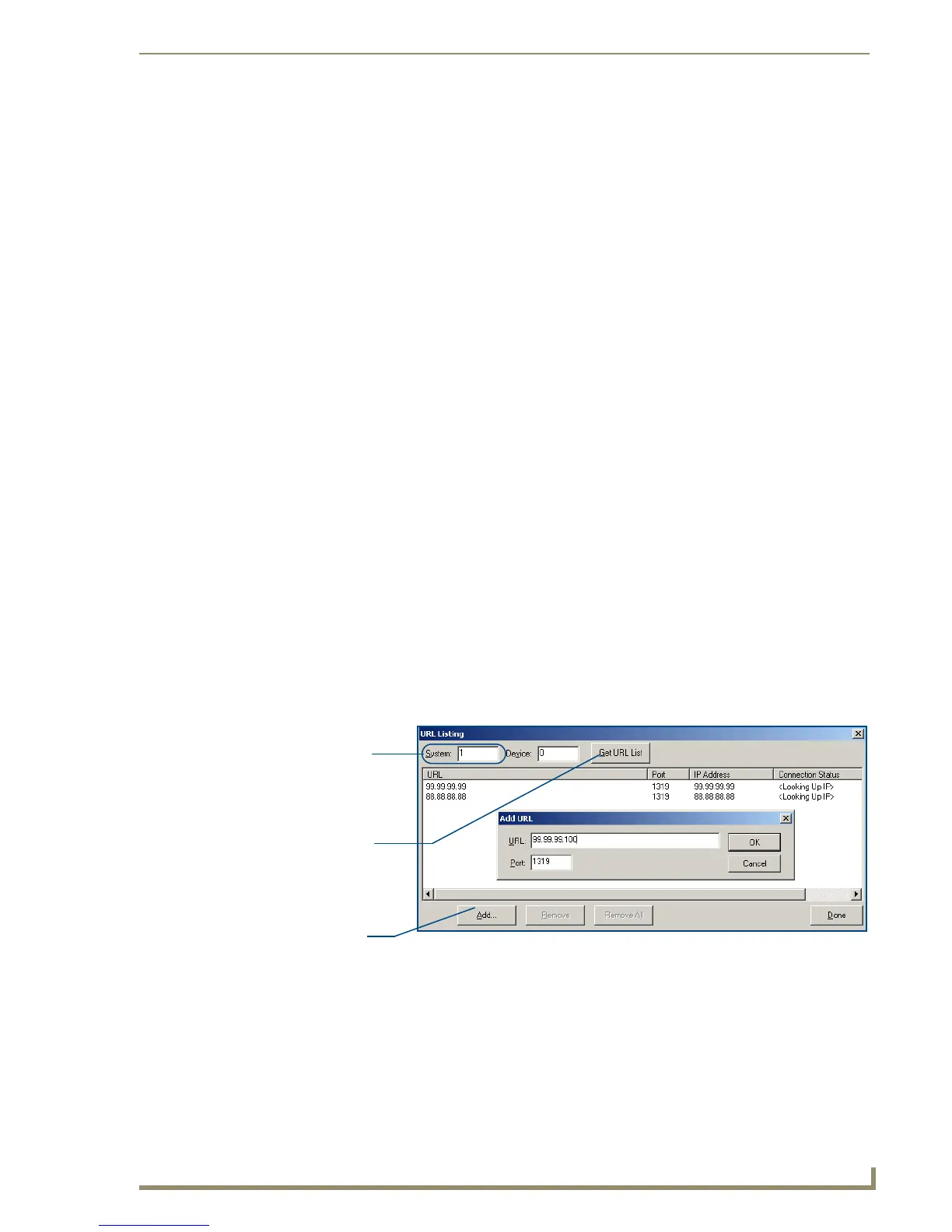

FIG. 73 URL List dialog
System Address
reflects the value
set in the Device
Addressing tab
Used to obtain an
existing URL
Used to set the
URL List
List from Master
on Master

AMX NXT-CV10 Specifications

General

Dimensions (WxDxH)	283 x 84 x 202 mm
Ethernet LAN (RJ-45) ports	1
Pixel pitch	0.28 x 0.28 mm
Aspect ratio	16:9
Screen shape	Flat
Display diagonal	10 \
Display brightness	350 cd/m²
Display resolution	800 x 480 pixels
Contrast ratio (typical)	350:1
USB Type-A downstream ports quantity	2
Certification	FCC 15 B, CE, EN60950
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
NVIDIA G-SYNC	No

Weight and Dimensions

Weight (without stand)	1200 g
