AMX NXT-CV10 User Manual

CV10 Touch Panel Accessories
23
10" Modero Touch Panels
Step 3: Install the new 802.11g CF Card and Antenna
1.
Discharge any static electricity from your body by touching a grounded metal object and then locate the
wireless card slot on the main board (FIG. 23).
2. Insert the tip of a grounded flat-head screwdriver into one of the card removal grooves (located on either
side of the existing card), and gently pry the card out of the slot (FIG. 23). Repeat this process on the
opposite card removal groove. This alternating action causes the card to "wiggle" away from the on-
board connector pins.
3. Grip the old card by its sides and then carefully pull it out of the slot.
4. Remove one of the included alcohol pads and use it to thoroughly clean both the CF metal cover
(FIG. 23) and the metal pate on the underside of the terminal antenna. These surfaces must be properly
cleaned to provide good adhesion for the later installation of the wireless antenna.
5. Remove the new NXA-WC80211G CF card from it’s anti-static bag.
6. Grip the sides of the new wireless card and insert it firmly into the slot opening until the contact pins are
completely inside the card and securely attached to the pin sockets.
7. Carefully peel-off one side of the included double-sided tape and adhere the adhesive side to the surface
of the antenna’s metal plate.
8. Grip the antenna by its sides and carefully peel-off the remaining protective film on the
double-sided tape.
9. Align the antenna atop the CF metal cover plate and press down firmly to securely adhere it.
10. To complete the upgrade process, close and re-secure the panel enclosure using the procedures in the
following step.

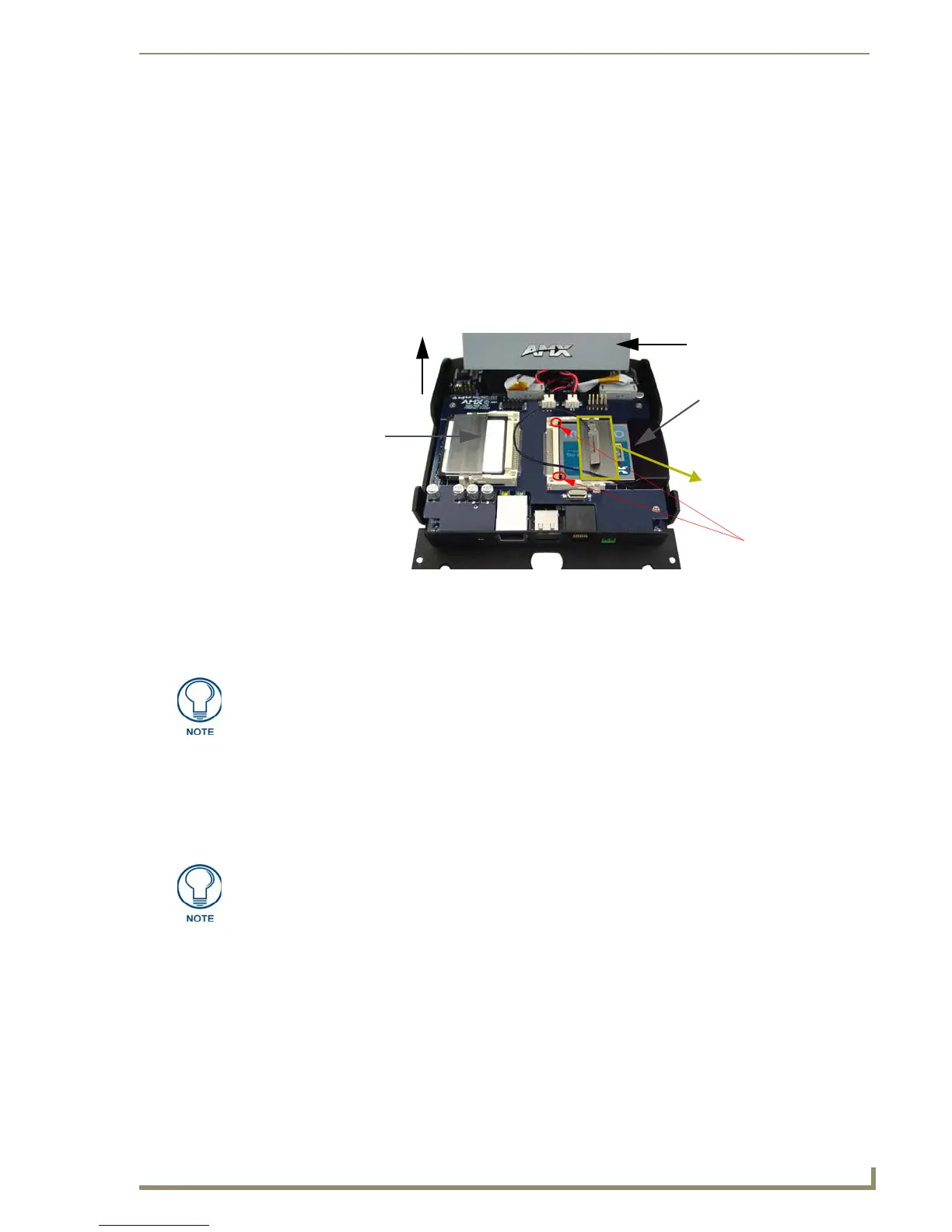

FIG. 23 Location and orientation of the card slots (both CV7/CV10 panels)
Compact Flash
Memory Card (Slot 1)
Wireless CF Card
(Slot 2)
Front of panel
Tilt Bracket cover plate
CF metal plate
(with antenna
shown installed)
Card Removal
Grooves
You must precisely align the double-sided tape to the surface of the antenna’s
metal plate in order to properly secure the antenna within to the CF metal cover
plate.
If the CF metal cover plate is not present over the wireless card slot, you can
use the adhesive tape to secure the terminal antenna to the surface of the new
card (atop the product label).

AMX NXT-CV10 Specifications

General

Dimensions (WxDxH)	283 x 84 x 202 mm
Ethernet LAN (RJ-45) ports	1
Pixel pitch	0.28 x 0.28 mm
Aspect ratio	16:9
Screen shape	Flat
Display diagonal	10 \
Display brightness	350 cd/m²
Display resolution	800 x 480 pixels
Contrast ratio (typical)	350:1
USB Type-A downstream ports quantity	2
Certification	FCC 15 B, CE, EN60950
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
NVIDIA G-SYNC	No

Weight and Dimensions

Weight (without stand)	1200 g
