AMX NXT-CV10 User Manual

Configuring Communication
56
10" Modero Touch Panels
Step 5: Confirm and View the current AMX USB device connections
Use the CC-USB Type-A to Mini-B 5-wire programming cable (FG10-5965) to provide communication
between the mini-USB Program port on the touch panel and the PC. This method of communication is used to
transfer firmware KIT files and TPD4 touch panel files.
1. Verify this direct USB connection (Type-A on the panel to mini-USB on the panel) is configured properly
using the steps outlined in the previous two sections.
2. With the panel already configured for USB communication and the Virtual Master setup within NetLinx
Studio, its now time to verify the panel is ready to receive files.
3. Click the OnLine Tree tab in the Workspace window to view the devices on the Virtual System.
The default System value is one.
4. Right-click on the System entry (A in FIG. 59) and select Refresh System. This causes a refresh of all
project systems, establishes a new connection to the Virtual Master, and populates the System list with
devices on your particular system.
A mini-USB connection is only detected after it is installed onto an active panel.
Connection to a previously powered panel which then reboots, allows the PC to
detect the panel and assign an appropriate USB driver.

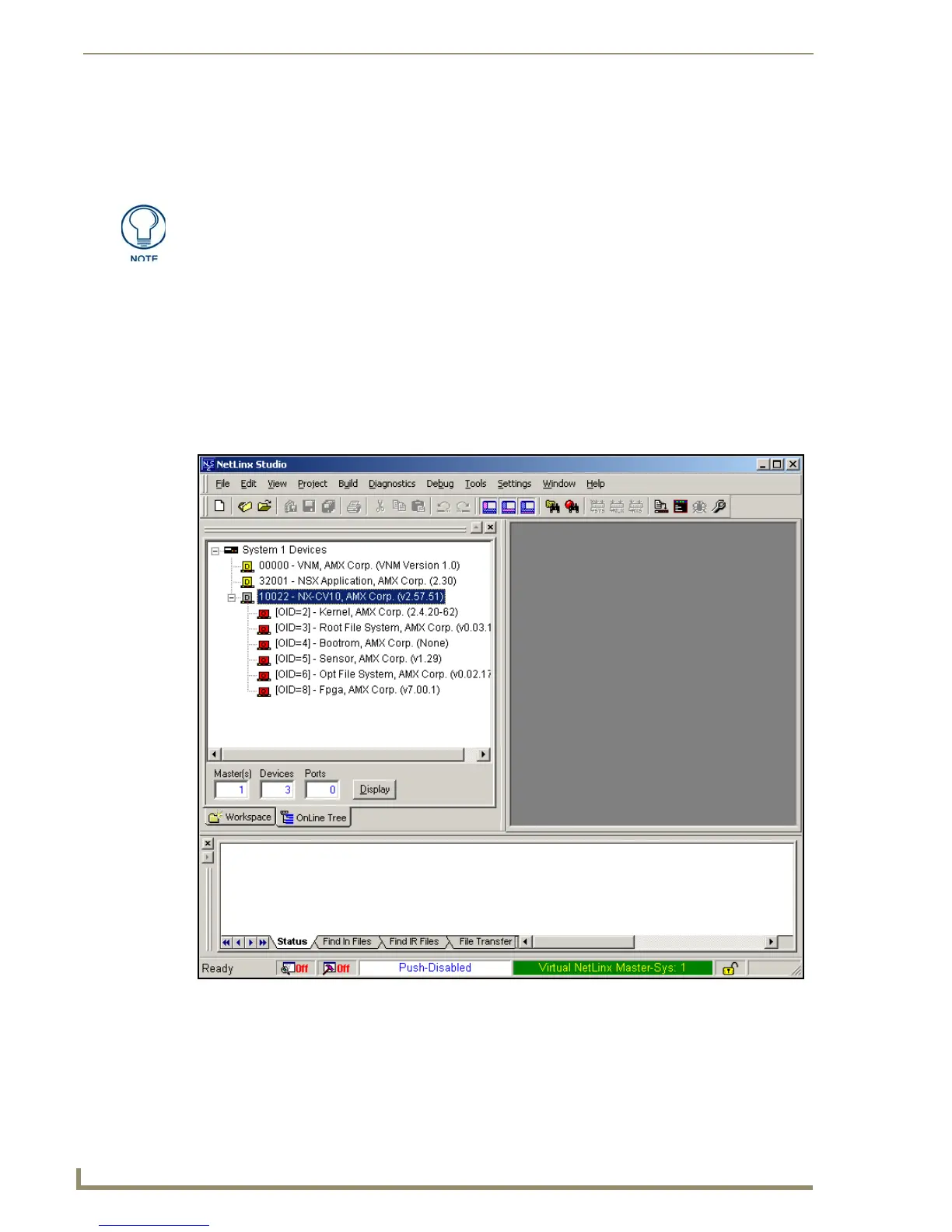

FIG. 59 Using USB for Virtual Master communication

AMX NXT-CV10 Specifications

General

Dimensions (WxDxH)	283 x 84 x 202 mm
Ethernet LAN (RJ-45) ports	1
Pixel pitch	0.28 x 0.28 mm
Aspect ratio	16:9
Screen shape	Flat
Display diagonal	10 \
Display brightness	350 cd/m²
Display resolution	800 x 480 pixels
Contrast ratio (typical)	350:1
USB Type-A downstream ports quantity	2
Certification	FCC 15 B, CE, EN60950
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
NVIDIA G-SYNC	No

Weight and Dimensions

Weight (without stand)	1200 g
