AMX NXT-CV10 User Manual

Introduction
6
10" Modero Touch Panels
CV10 Panels - Connector Layout

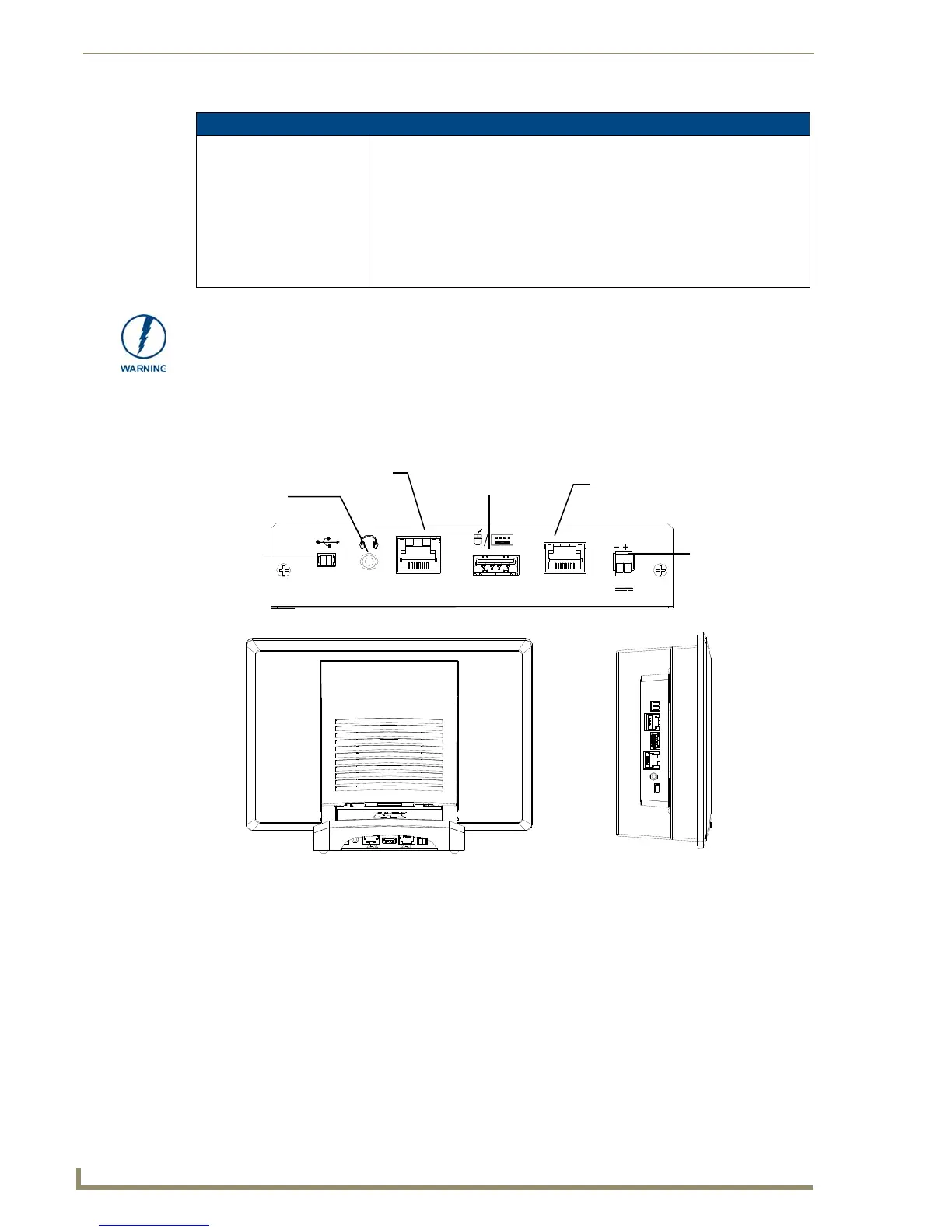

FIG. 3 shows the layout of the connectors (located on the rear of the base on the NXT and on the left side panel
of the NXD panels).
Specifications for 10" Widescreen Video Touch Panels (Cont.)
Other AMX Equipment
(Cont.):
• NXT-BP (FG2255-10)
- Battery pack for Table Top panels.
• NXT-CHG Kit (FG2250-50K)
- Battery charger and 2 NXT-BP batteries
• Upgrade Compact Flash (factory programmed with firmware):
NXA-CV10CF128M - 128 MB Compact Flash card (FG2116-65)
NXA-CV10CF256M - 256 MB Compact Flash card (FG2116-66)
NXA-CV10CF512M - 512 MB Compact Flash card (FG2116-67)
NXA-CV10CF1G - 1 GB Compact Flash card (FG2116-68)
It is recommended that firmware KIT files only be transferred over a direct USB or
Ethernet connection and only when the panel is connected to a power supply. If
battery power or wireless connection fails during a firmware upgrade, the panel flash
file system may become corrupted.
FIG. 3 Connector layout on the CV10 touch panels
PROGRAM
PWR
12VDC
ETHERNET
MOUSE
KEYBOARD /
10/100
AUDIO / VIDEO
LA
Audio-Video from
Ethernet (CAT5)
Power
Keyboard/Mouse
Mini-USB
NXA-AVB/ETHERNET (CAT5)
(Program)
(USB)
Stereo Output
NXT-CV10 - connectors located
on rear panel of the base
NXD-CV10 - connectors located
on left side panel

AMX NXT-CV10 Specifications

General

Dimensions (WxDxH)	283 x 84 x 202 mm
Ethernet LAN (RJ-45) ports	1
Pixel pitch	0.28 x 0.28 mm
Aspect ratio	16:9
Screen shape	Flat
Display diagonal	10 \
Display brightness	350 cd/m²
Display resolution	800 x 480 pixels
Contrast ratio (typical)	350:1
USB Type-A downstream ports quantity	2
Certification	FCC 15 B, CE, EN60950
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
NVIDIA G-SYNC	No

Weight and Dimensions

Weight (without stand)	1200 g
