AMX NXT-CV10 User Manual

Configuring Communication
68
10" Modero Touch Panels
Step 3: Configure an Ethernet Connection Type
Before beginning:
1. Verify the panel has been configured to communicate either through an Ethernet cable (from the panel to
a valid Ethernet Hub) or to a wirelessly (from the panel to a compatible Wireless Access Point (WAP)).
2. Verify that the NetLinx Master is receiving power and is communicating via an Ethernet connection with
the PC running NetLinx Studio.
3. Connect the terminal end of the 12 VDC-compliant power supply cable to the power connector on the
rear/side of the touch panel.
4. Verify the green Ethernet LED (from the rear Ethernet port on the Master) is illuminated (indicating a
proper connection).
5. Verify the yellow LED (from the rear Ethernet port on the Master) is blinking (indicating
communication).
6. After the panel powers-up, press and hold the grey Front Setup Access button (for 3 seconds) to proceed
to the Setup page.
7. Select Protected Setup > System Settings (located on the lower-left) to open the System Settings page
(FIG. 70).
When using Ethernet as your communication method, the NetLinx Master must first
be setup with either a Static IP or DHCP Address obtained from either NetLinx Studio
or your System Administrator.
Before commencing, verify you are using the latest NetLinx Master firmware.

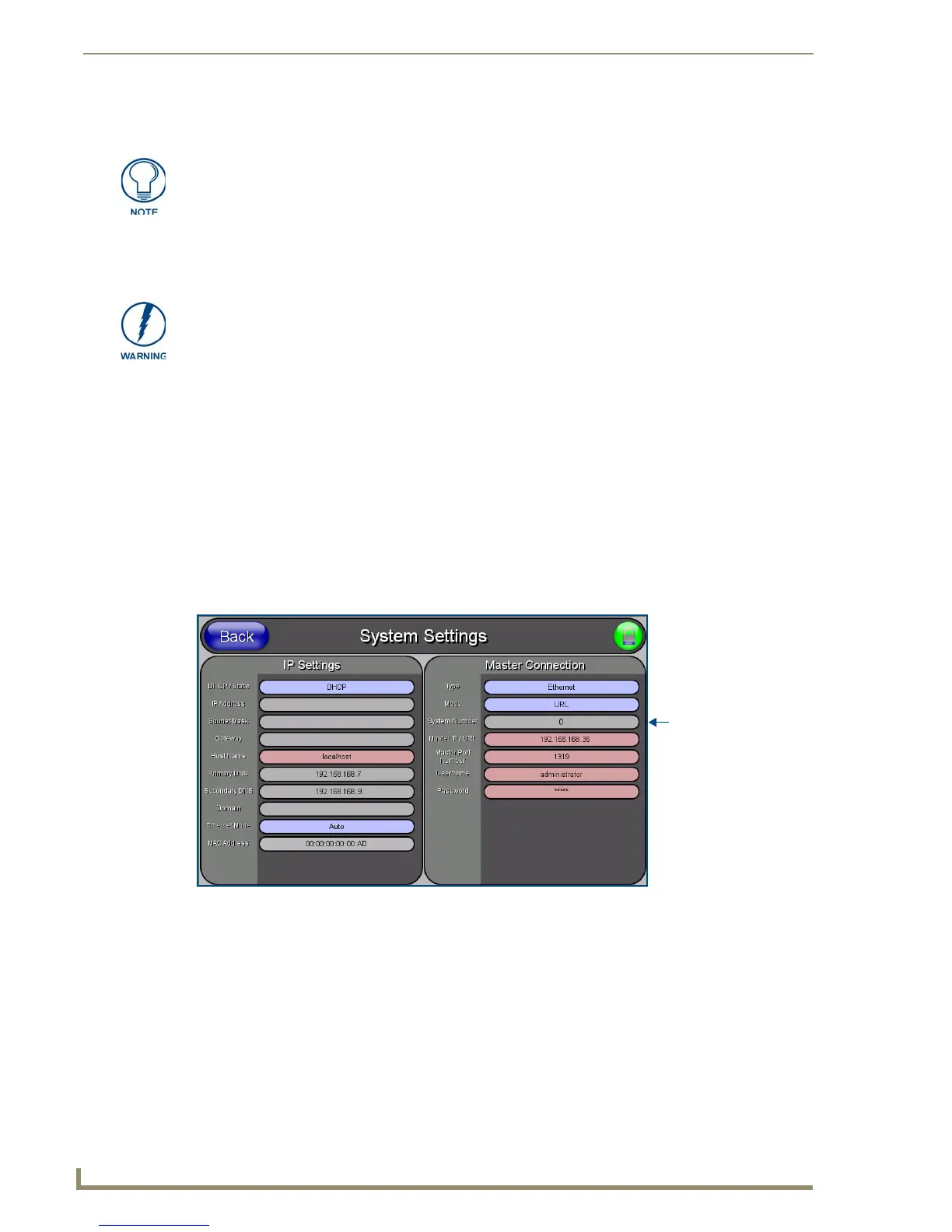

FIG. 70 System Settings page
Obtained from
NetLinx Master

AMX NXT-CV10 Specifications

General

Dimensions (WxDxH)	283 x 84 x 202 mm
Ethernet LAN (RJ-45) ports	1
Pixel pitch	0.28 x 0.28 mm
Aspect ratio	16:9
Screen shape	Flat
Display diagonal	10 \
Display brightness	350 cd/m²
Display resolution	800 x 480 pixels
Contrast ratio (typical)	350:1
USB Type-A downstream ports quantity	2
Certification	FCC 15 B, CE, EN60950
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
NVIDIA G-SYNC	No

Weight and Dimensions

Weight (without stand)	1200 g
