AMX NXT-CV10 User Manual

CV10 Touch Panel Accessories
13
10" Modero Touch Panels

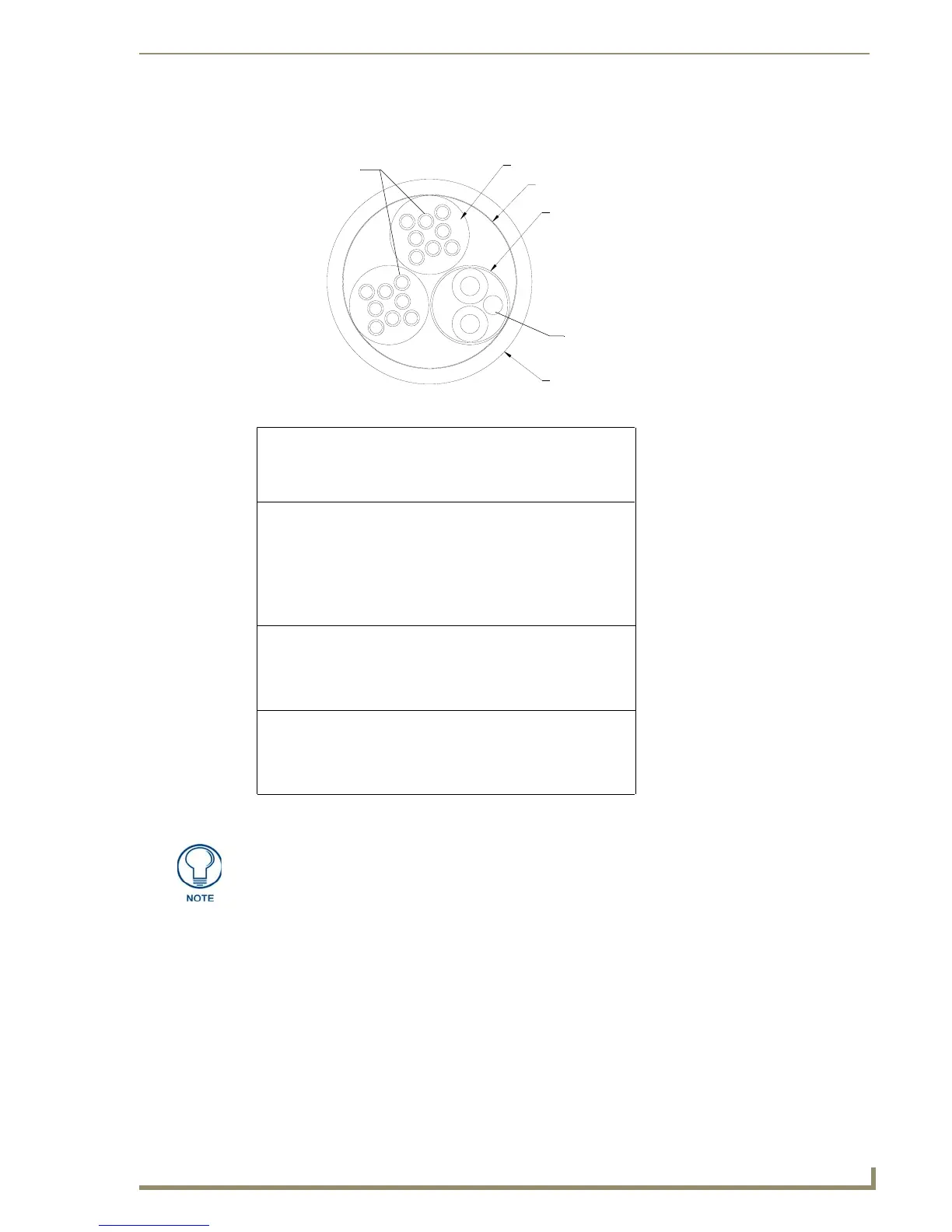

The following figures provide a cross-section view (FIG. 12) and a description (FIG. 13) of the Modero Table
Top Cable:
FIG. 12
Table Top Cable - cross-section view
FIG. 13 Table Top Cable - Specification Elements
Element #1
Binder
Element #2
Jacket
Connector #1 & 2
Connector #3
ELEMENT #1:
CONDUCTOR:
INSULATION:
COLOR CODE:
P2: WHITE/ORANGE, ORANGE
P3: WHITE/GREEN, GREEN
PAIR:
(TWISTED AT VARIED LAYS TO MINIMIZE CROSS TALK)
ELEMENT #2:
CONDUCTOR:
INSULATION:
COLOR CODE:
CABLE:
BINDER:
FINAL ASSEMBLY:
AXIS TO MINIMIZE DIAMETER
BINDER:
JACKET:
COLOR:
DIAMETER:
P4: WHITE/BROWN, BROWN
DRAIN WIRE:
SHIELD:
DESCRIPTION:
TWO 4/PAIR 24 AWG STRANDED TINNED COPPER,
POLYETHYLENE INSULATION, ELEMENT #2: 1/PAIR 18 AWG
STRANDED TNNED COPPER, PVC INSULATION AND FOIL
SHIELDED OVERALL PAPER BINDER AND FLEX-PVC JACKET.
9/PAIRS COMPOSITE CABLE CONSISTING OF: ELEMENT #1:
2 X 4/PAIRS: 24 AWG STRANDED COPPER
24 AWG 7/32 TINNED COPPER; OD .024" NOMINAL
.0075" WALL POLYETHYLENE; OD .039" NOMINAL
P1: WHITE/BLUE, BLUE
2 CONDUCTORS TWINNED LEFT HAND LAY
4/P CABLED LEFT HAND LAY (BLUE BINDER, ORANGE BINDER)
PAPER TAPE
1 PAIR: 18 AWG SHIELDED
18 AWG 16/30 TINNED COPPER; OD .046" NOMINAL
.010" WALL PVC; OD .066" NOMINAL
BLACK, RED
#22 7/30 TINNED COPPER
ALUM/POLYESTER TAPE (FOIL SIDE IN)
TWO ELEMENT #1 & ELEMENT #2 CABLED ON COMMON
CLOTH TAPE 25% OVERLAP
.045" WALL FLEXIBLE PVC,
BLACK MATT
.375 INCHES NOMINAL
NONEMARKING:
Each bundle of 4 twisted pairs includes a colored tape indicator for identification.

AMX NXT-CV10 Specifications

General

Dimensions (WxDxH)	283 x 84 x 202 mm
Ethernet LAN (RJ-45) ports	1
Pixel pitch	0.28 x 0.28 mm
Aspect ratio	16:9
Screen shape	Flat
Display diagonal	10 \
Display brightness	350 cd/m²
Display resolution	800 x 480 pixels
Contrast ratio (typical)	350:1
USB Type-A downstream ports quantity	2
Certification	FCC 15 B, CE, EN60950
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
NVIDIA G-SYNC	No

Weight and Dimensions

Weight (without stand)	1200 g
