AMX NXT-CV10 User Manual

CV10 Touch Panel Accessories
21
10" Modero Touch Panels
6. Locate the two screw holes at either sides of the front speaker grill and then use a grounded
Phillips-head screwdriver to remove the two Tilt Bracket Screws (FIG. 19). This procedure both loosens
the rear Tilt Bracket cover plate (with the AMX logo and Hinge brackets) and provides greater flexibility
for the removal of the outer housing. Without this step, the Hinge brackets (FIG. 19) present an obstacle
to the removal of the outer housing and restrict access to the circuit board.
7. Tilt the LCD panel back up to gain better access to the Tilt Bracket cover plate.
8. In a single motion, carefully pull both the Tilt Bracket cover plate and outer housing up and then out
(away from the LCD panel) to expose the internal circuit board (FIG. 20).

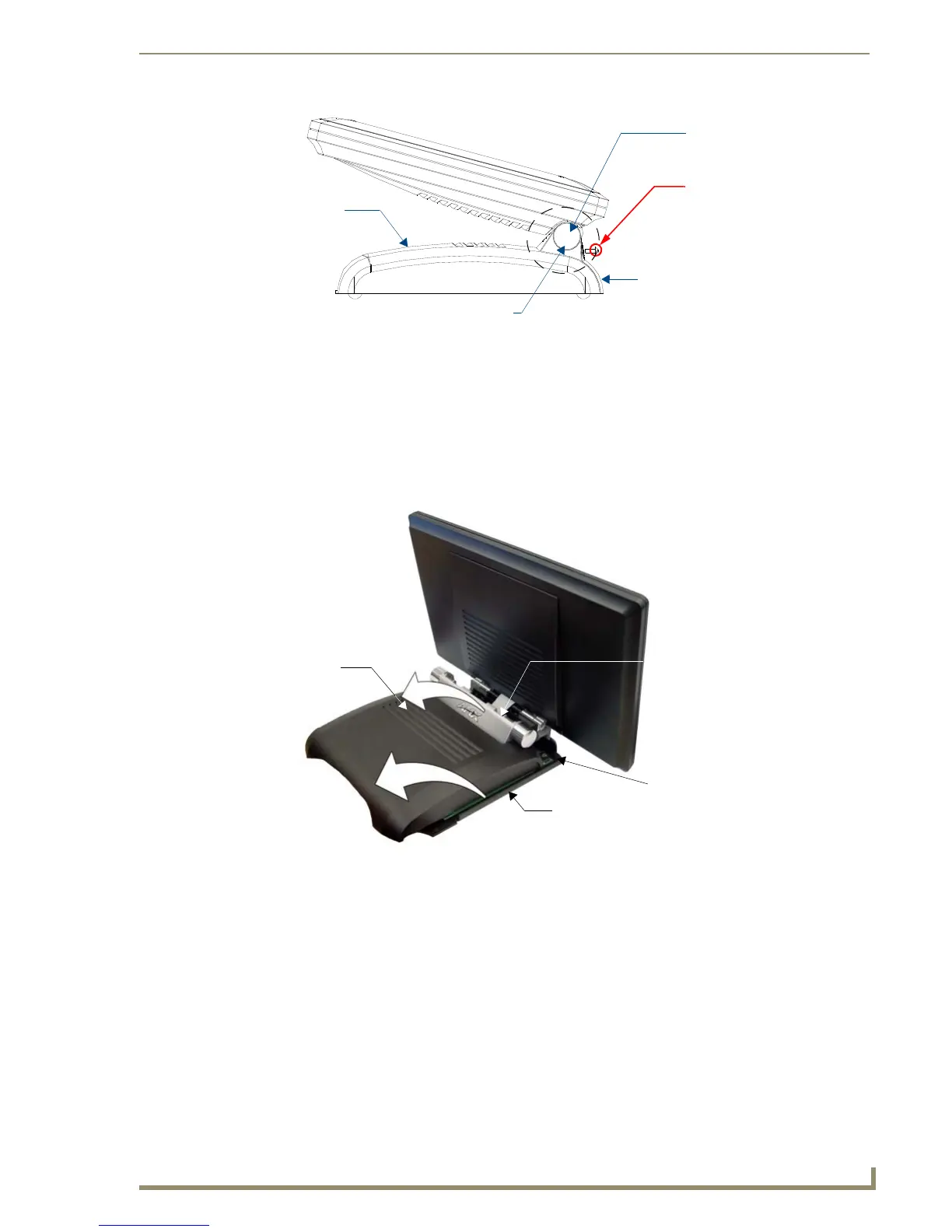

FIG. 19 Location of the Tilt Bracket screws
FIG. 20 Removal of the outer housing and wireless card location
Base
Outer Housing
Hinge Brackets (2)
Tilt Bracket Screws (2)
These two screws must
first be removed before
being able to remove
the outer housing.
Tilt Bracket/Speaker assembly
Outer housing
Tilt Bracket cover plate
Base
Outer Housing
installation holes
(located on front panel)
(must be removed first)

AMX NXT-CV10 Specifications

General

Dimensions (WxDxH)	283 x 84 x 202 mm
Ethernet LAN (RJ-45) ports	1
Pixel pitch	0.28 x 0.28 mm
Aspect ratio	16:9
Screen shape	Flat
Display diagonal	10 \
Display brightness	350 cd/m²
Display resolution	800 x 480 pixels
Contrast ratio (typical)	350:1
USB Type-A downstream ports quantity	2
Certification	FCC 15 B, CE, EN60950
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
NVIDIA G-SYNC	No

Weight and Dimensions

Weight (without stand)	1200 g
