Installation
34
10" Modero Touch Panels
5. From along the internal surface of the Faceplate, remove the six buttons by gently bending each Button
latch up and pulling the button outwards.
6. Remove the pair of clear light pipe strips by bending the two black light pipe latches inwards and pulling
out the strip.
7. Grasp the No-Button Trim Ring on both sides and fit it into the groove along the outside surface of the
Faceplate (made available by the removal of the previous Trim Ring).
8. Gently insert the Trim Ring latches into their corresponding openings on the outer surface of the internal
Faceplate (FIG. 35).
9. Firmly press down around the No-Button Trim Ring until all of the latches are securely inserted into their
openings on the Faceplate, and the No-Button Trim Ring is securely fastened. Verify the
No-Button Trim Ring is firmly inserted onto the Faceplate and that there are no gaps between this Trim
Ring and the outer surface of the Faceplate.
10. Place the Faceplate back onto the main NXD-CV10 unit. Make sure to align the Microphone, Light, and
PIR Motion sensor locations on the main unit to their respective openings on the Faceplate assembly.

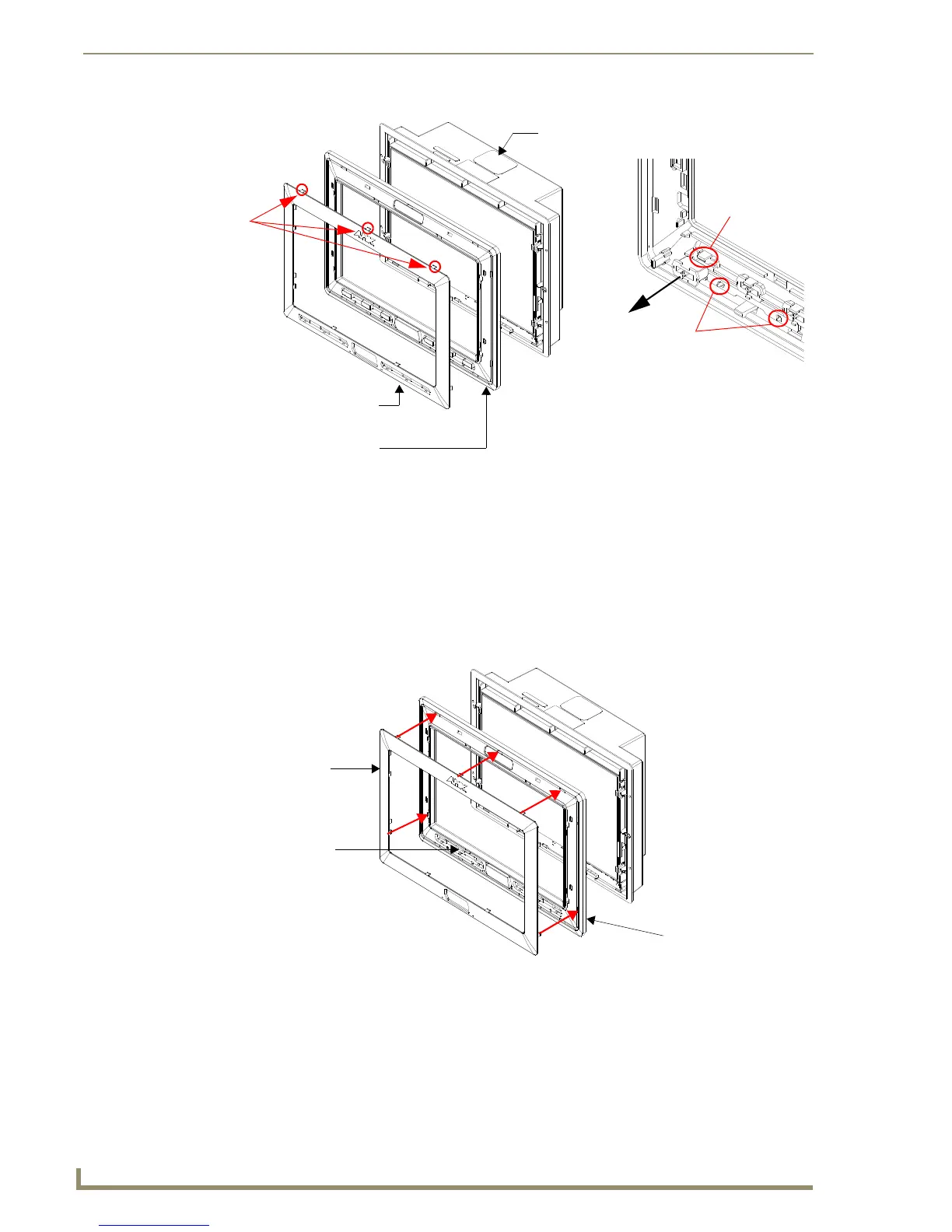

FIG. 34 Removing the default Button Trim Ring
FIG. 35 Inserting the new No-Button Trim Ring
Default Button Trim Ring
Trim
(with button openings)
B
Faceplate
CV10 Panel/enclosure
Ring
Latches
Button latch
Light Pipe latch
(black)
Button and Light Pipe removal
(showing the inside surface of Faceplate)
(outside surface shown)
No-Button Trim Ring
Faceplate
Hollow button openings
(outer surface shown)
