Anritsu MP8931A - DVB-ASI Interface Output Level

Section 6 Performance Test
6-4
6.4.2 DVB-ASI interface output level
(1) Testing specifications
Item Specifications Remarks
Level
800 mV(p-p)
±
10%
(2) Setup
MP8931A
Monitor
DVB-ASI
Output
Input
Oscilloscope
75 Ω/50 Ω converter

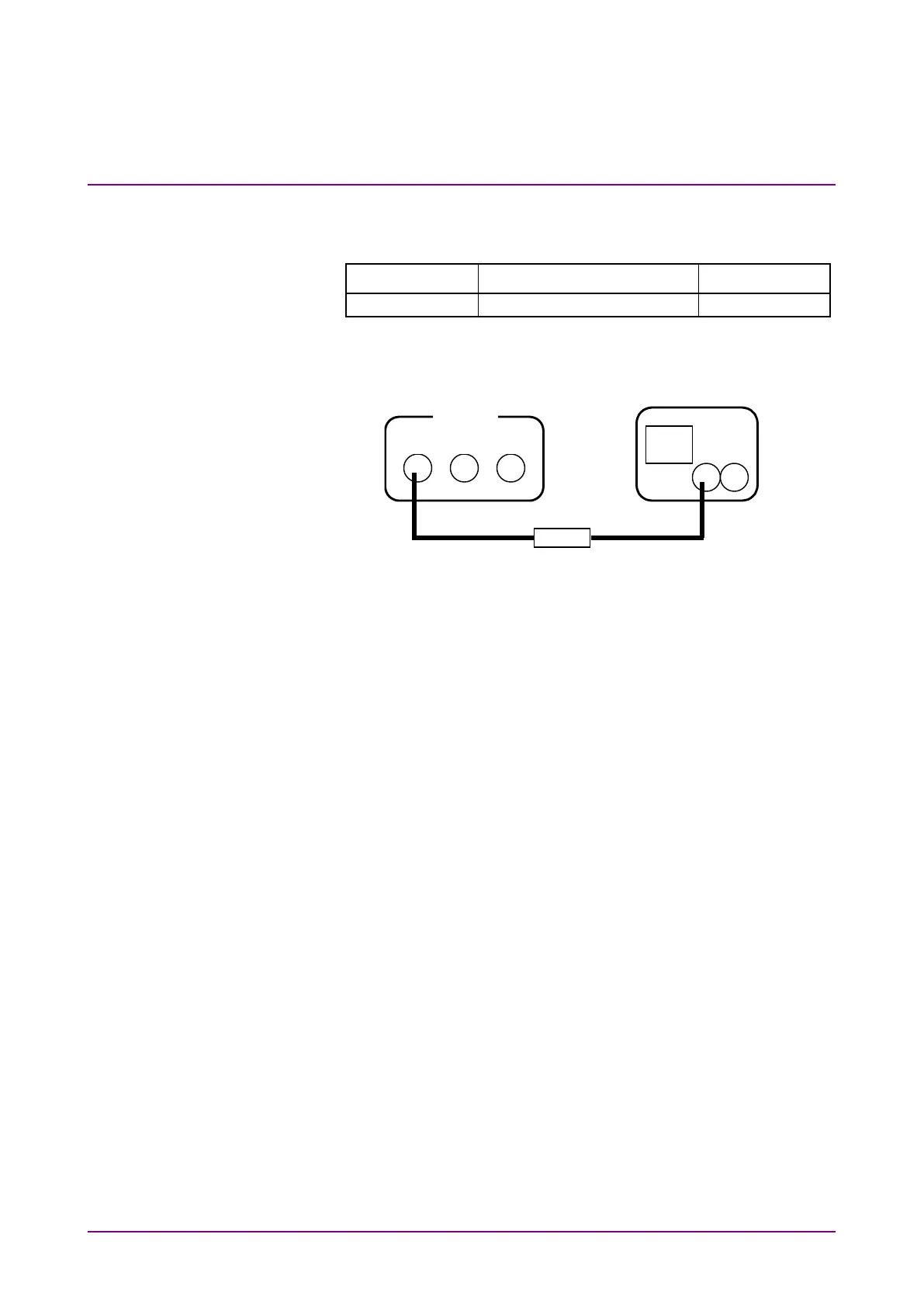

Fig. 6.4.2-1 Setup for DVB-ASI interface output level test
(3) Test procedure
1. Set up the equipment as shown in Fig. 6.4.2-1.
2. Open the main menu screen by pressing [Menu], and select
System*
→
Initialize to perform initialization.
3. On the main menu screen, select Interface
→
DVB-ASI to set
the interface.
4. Check that the obtained level meets the specifications.
