Section 5 Remote Control
5-4

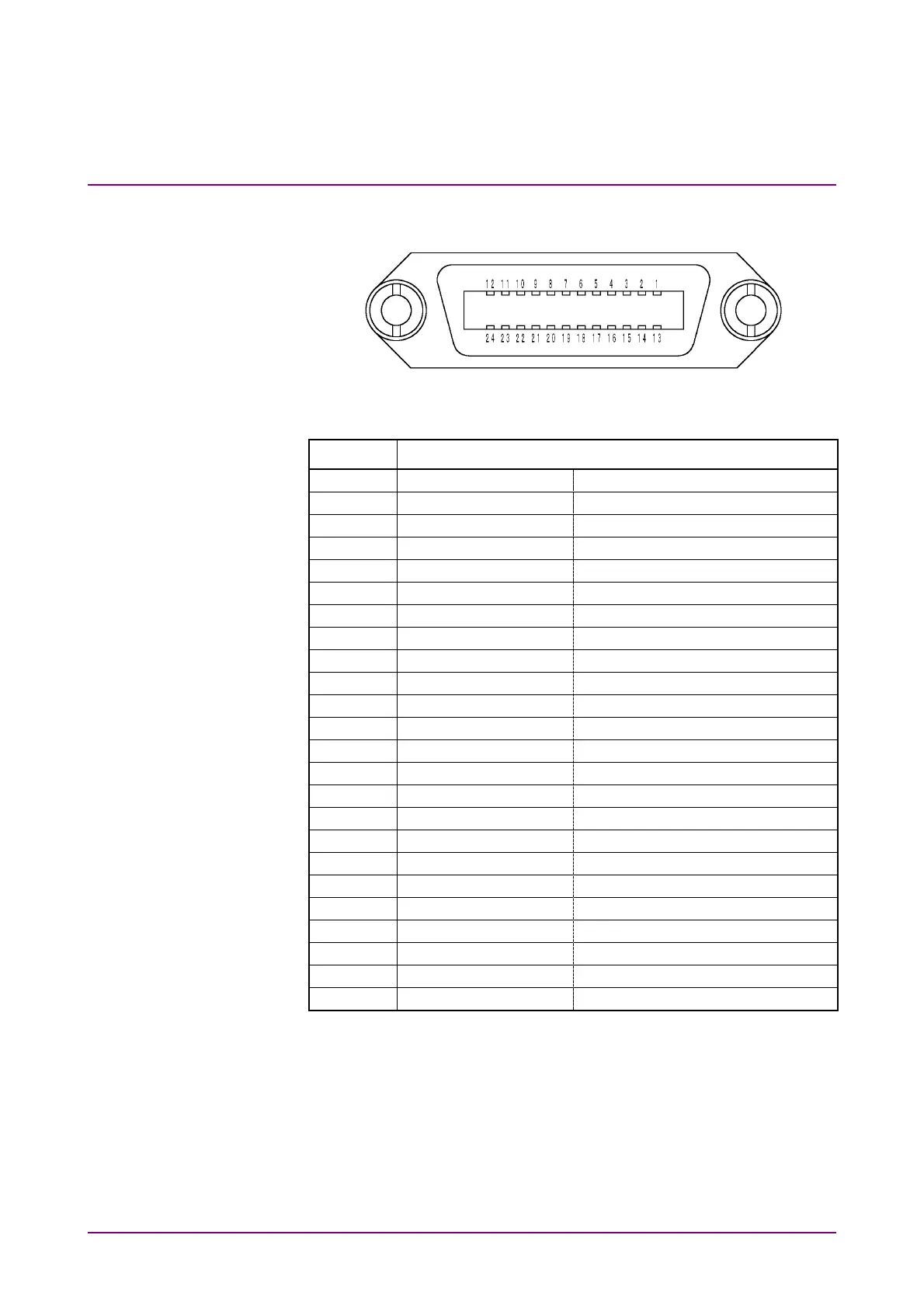

Pin assignment of the GPIB connector is shown in the figure below:
Fig. 5.2.1-1 Pin assignment of GPIB connector
No Name
1 DIO1 DATA INPUT OUTPUT1
2 DIO2 DATA INPUT OUTPUT2
3 DIO3 DATA INPUT OUTPUT3
4 DIO4 DATA INPUT OUTPUT4
5 EOI END OF IDENTITY
6 DAV DATA VALID
7 NRFD NOT READY FOR DATA
8 NDAC NOT DATA ACCEPTED
9 IFC INTERFACE CLEAR
10 SRQ SERVICE REQUEST
11 ATN ATTENTION
12 SHIELD
13 DIO5 DATA INPUT OUTPUT5
14 DIO6 DATA INPUT OUTPUT6
15 DIO7 DATA INPUT OUTPUT7
16 DIO8 DATA INPUT OUTPUT8
17 REN REMOTE ENABLE
18 DAV ground DATA VALID ground
19 NRFD ground NOT READY FOR DATA ground
20 NDAC ground NOT DATA ACCEPTED ground
21 IFC ground INTERFACE CLEAR ground
22 SRQ ground SERVICE REQUEST ground
23 ATN ground ATTENTION ground
24 Logic ground
