3-9 WCDMA/HSDPA Signal Analyzer (Options 44, 45, and 65) Verification Performance Verification 2
3-46 PN: 10580-00177 Rev. D MS2721B MM
WCDMA/HSDPA Signal Analyzer Setup:
1. Connect the MG3700A, RF power amplifier, attenuator, power meter, and sensors as shown in
Figure 3-14.
2. Turn on the MG3700A, RF amplifier, attenuator, and the power meter.
3. Connect the power sensors to the power meter and then calibrate the sensors.

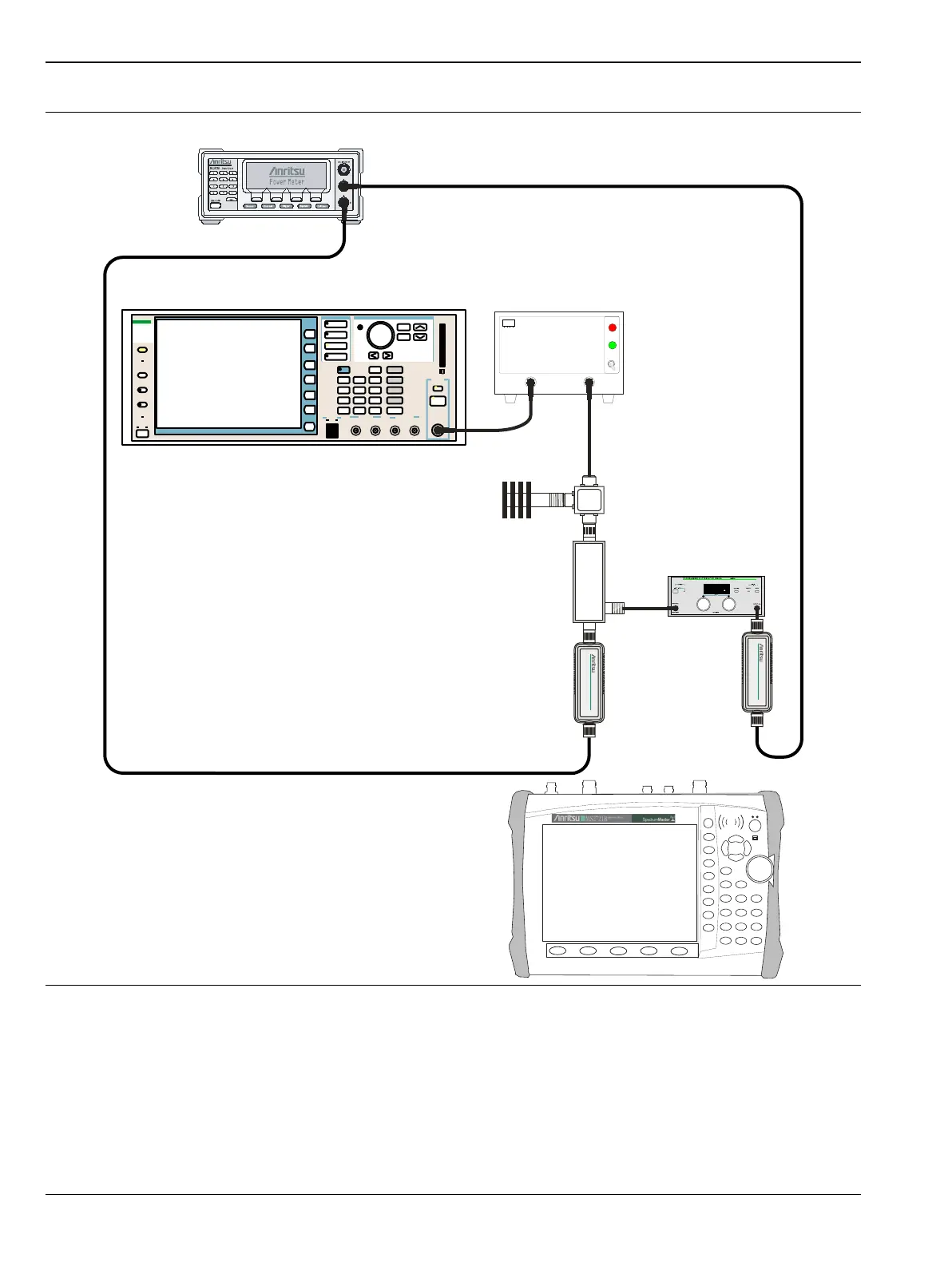

Figure 3-14. WCDMA/HSDPA Signal Analyzer Characterization Setup
3
Function
Ethernet Control Input Modulation Input
Cursor/Edit
RF Output
3
MG3700
Vector Signal
Generator
250kHz-6GHz
Mini-Circuits
RF POWER AMPLIFIER
MODEL TIA - 1000 - 1R8
INPUT
OUTPUT
ON
OFF
TEMP
AC
0.5 - 100 MHz 35dB GAIN
4 WATTS SATURATED
1.8 WATTS LINEAR
Sensor B
ML2438A Power Meter
MG3700A
RF Power Amplifier
Sensor A
MN63A
Circulator
Coupler
High
Power
Load
MS2721B
To Next Page
