ASE2000 V2 Communication Test Set User Manual 38
Display Properties
Display Tab

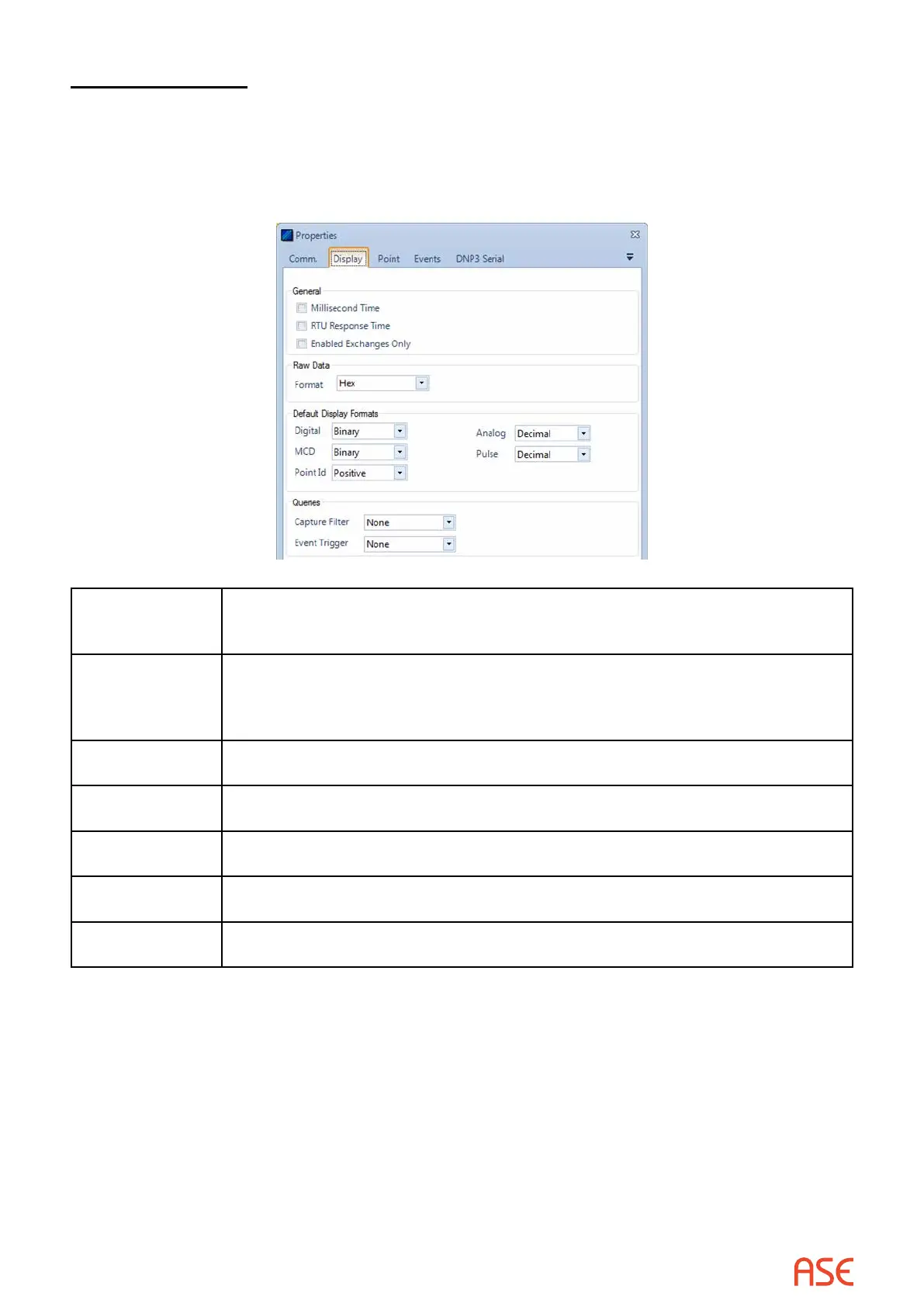

The Display Properties tab contains information located under Properties/Display in the ASE2000
Version 2 Test Set.
Millisecond Time If checked, each message sent or received is time-stamped to the nearest
millisecond (based on accuracy of the PC clock). If unchecked, messages are
time-stamped to the nearest second
RTU Response
Time
If checked, each RTU response message is shown with an elapsed millisecond
time, calculated from the last bit transmitted of the prior master request to the
îš¿rst bit of the corresponding RTU response. This feature requires ASE serial
communication hardware and is not available with standard COM ports
Enabled
Exchanges Only
If checked, only enabled exchanges identiîš¿able by ASE2000 are displayed (see
next topic, ‘Filtering Exchanges’, for details).
Raw Data Format Controls display format of raw communication words shown in the Line Monitor
and Messages views
Default Display
Formats
Controls presentation format of interpreted data values for each supported point
type (Digital, MCD, Analog, and Pulse) and for the Point ID
Capture Filter Settings for the Capture Filter (see topic Message Query Manager for more
information)
Event Trigger Settings for the Event Trigger (see topic Message Query Manager for more
information)
