LED Indications during Easy Replacement
The following table shows the LED indications that are used for the handset and the charger
during the easy replacement procedure.
14.3 Attach the Hinge-type Clip
Attach the hinge-type belt clip as described in Figure 16.

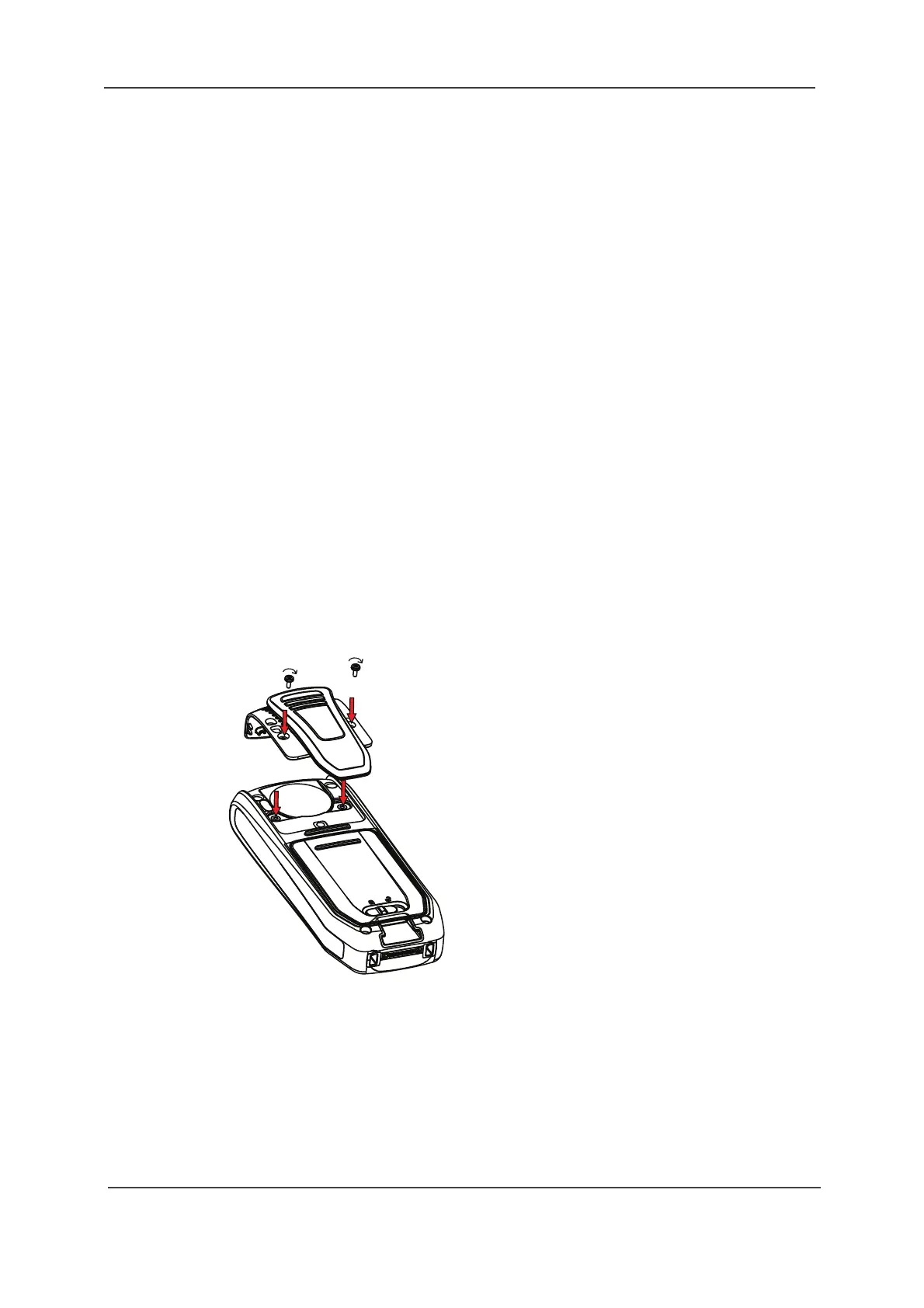

Figure 16. Screw the hinge-type clip into position.
14.4 Attach the Swivel-type Clip
Attach the swivel-type belt clip as described in Figure 17.
8 When the text "Phone successfully replaced. Please remove phone to restart."
appears in the display, remove the handset from the charger. The handset is
automatically restarted.
LED indication Description
Orange, flashing (1 000 ms on, 1 000
ms off)
File transfer during Easy Replacement.
Orange, flashing (100 ms on, 800 ms
off)
“Change phone” indication during Easy
Replacement.
Red, flashing (100 ms on, 800 ms off) Error indication during Easy Replacement. Put
back new handset in charger.
Red, flashing (900 ms on, 100 ms off) Error during Easy Replacement. Service needed
for both handsets.
