Ch. 10. Environmental Scanner Overview Sec. 10.1. Parts list

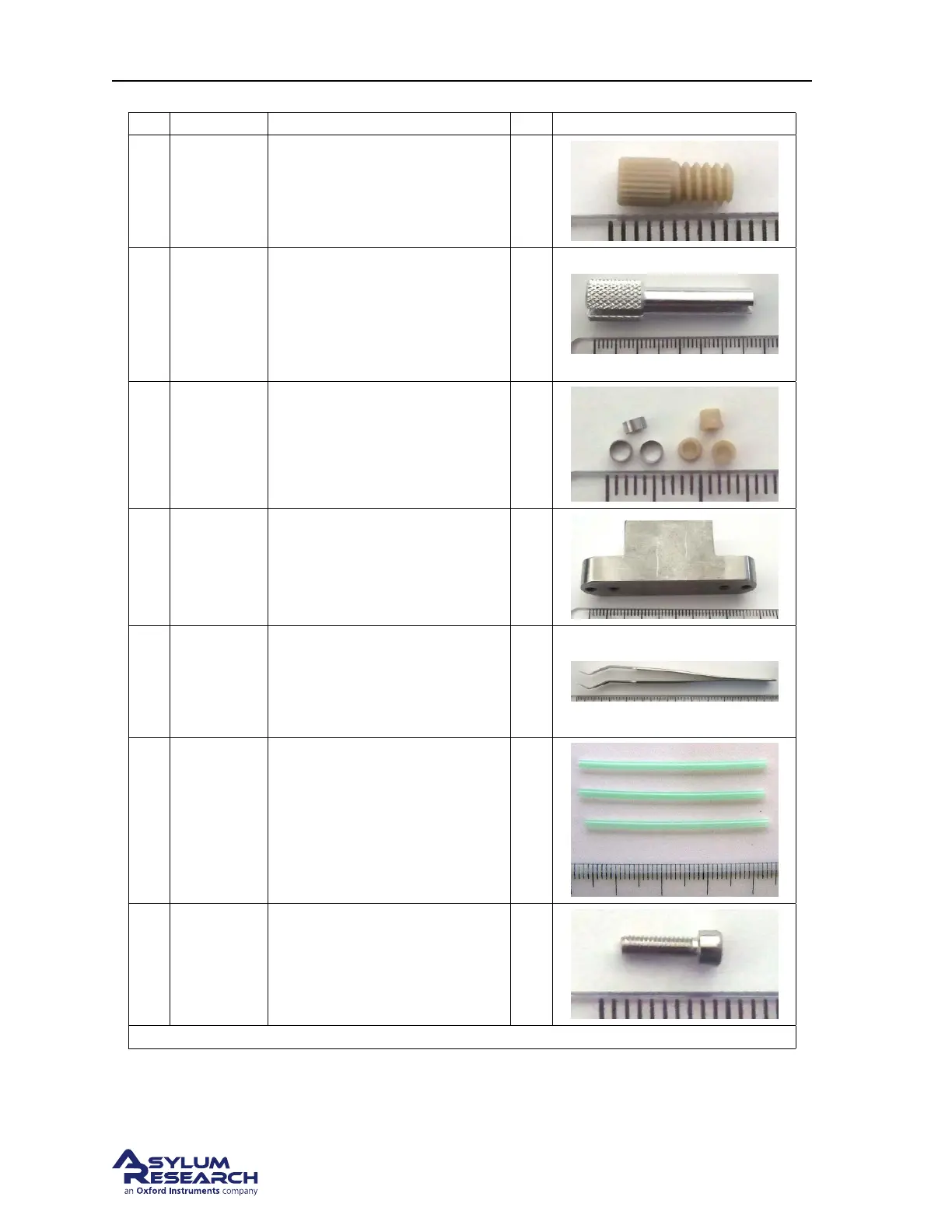

Itm Part # Item Description Qty Picture
11 232.015
Fittings, 1/16”. Used to connect
1/16” tubing to the cell chamber
wall. See Step 4 on page 167.
IDEX part number M660. Use
with tool 290.164.
4
12 114.800
Extender Tool Fitting Wrench.
Use to tighten Fittings 230.015.
See Step 1 on page 175. IDEX
part number N-290. DO NOT
use on the cell body fittings:
Step 4 on page 167.
1
13 232.016
1/16” Ferrules. Each ferrule
requires a metal and a plastic
part. Used with 1/16” fittings.
IDEX part number M660.
6
14 114.721
Fitting Compression Fixture.
Required to attach fitting
ferrules to 1/16” tubing.
1
15 290.165
Platypus Tweezers. EMS part
78317 style 2AZ. Useful for
removing standard sample pucks
from the sample chamber. See
Step 19 on page 137.
1
16* 231.019
1/16” to 1/32” tubing reducer
sleeve. Used to connect 1/32”
OD fluid perfusion tubing to
standard syringes. IDEX part
F-247X
4
17
1-72 x 0.25
SHCS SS
1-72 x 1/4” long screw. Spare
screws used to lock down the
cantilever holder. See
Step 2 on
page 159.
10
The scale in the photos is in cm and mm.
