Ch. 13. Cell Body and Sample Stage Guide Sec. 13.1. Cell Body Guide

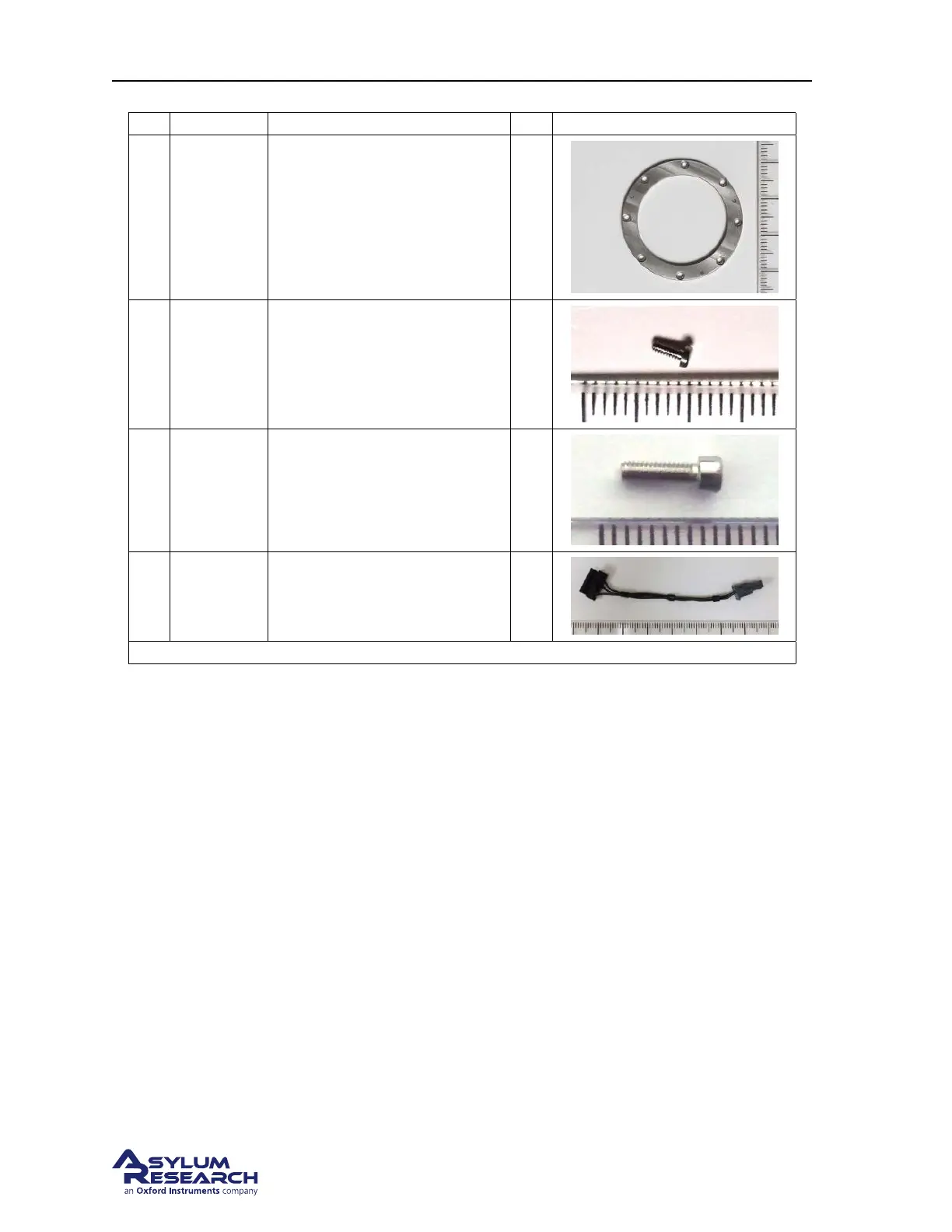

Itm Part # Item Description Qty Picture
2 114.884
Boot Clamp Ring, 8 Bolt
Pattern. Connects to the bottom
of the cell to form the seal
between the cell body and the
sample stage membrane. See
Step 3 on page 161.
1
3
00-90 x
1/8” Pan
Head SS
00-90 x 1/8” screw. Spare
screws used to fasten the sample
stage membrane to the cell body.
See
Step 4 on page 160.
8
4
1-72 x 0.25
SHCS SS
1-72 x 1/4” long screw. Used to
lock down the cantilever holder.
2
5 448.137
Gas Cell Cable. Cable to
connect to magnet contacts. See
Section 13.1.2.3 on page 151.
1
The scale in the photos is in cm and mm.
13.1.2.2. Specifications
Exposed Materials:
Cell wall: Borosilicate Glass.
Contacts: Nicked or Gold Plated.
Other: Epoxy.
Cleaning: The whole cell body can be immersed or sonicated in ethyl or isopropyl alcohol or water.
Do not use acetone or methylene chloride or other aggressive solvents as it will attack the epoxy between
the glass and metal parts.
Liquid use: Safe for use with most liquids being used in a droplet, but we recommend the fluid cell
body for use with liquids.
