8
Setting up the Instrument
Items Included in the Package
Check the appearance for any damage. Make sure that the items below have come with the instrument.
Automatic Digital Refractometer RX-5000i-Plus / RX-5000i / RX-7000i / RX-9000i
1. Main unit ································································ 1
2. AC power cable ·················································· 1
3. Printer output port cover ······························· 1
4. Stylus pen ····························································· 1
5. Plastic spoon ······················································· 1
6. Dust filters (a pack of 6 pieces) ·················· 1
7. Instruction manual ············································· 1
8. Quick measurement guide ······························ 1
9. Inspection certificate ········································ 1
10. FDA 21 Part11 Software(CD-ROM) ········ 1

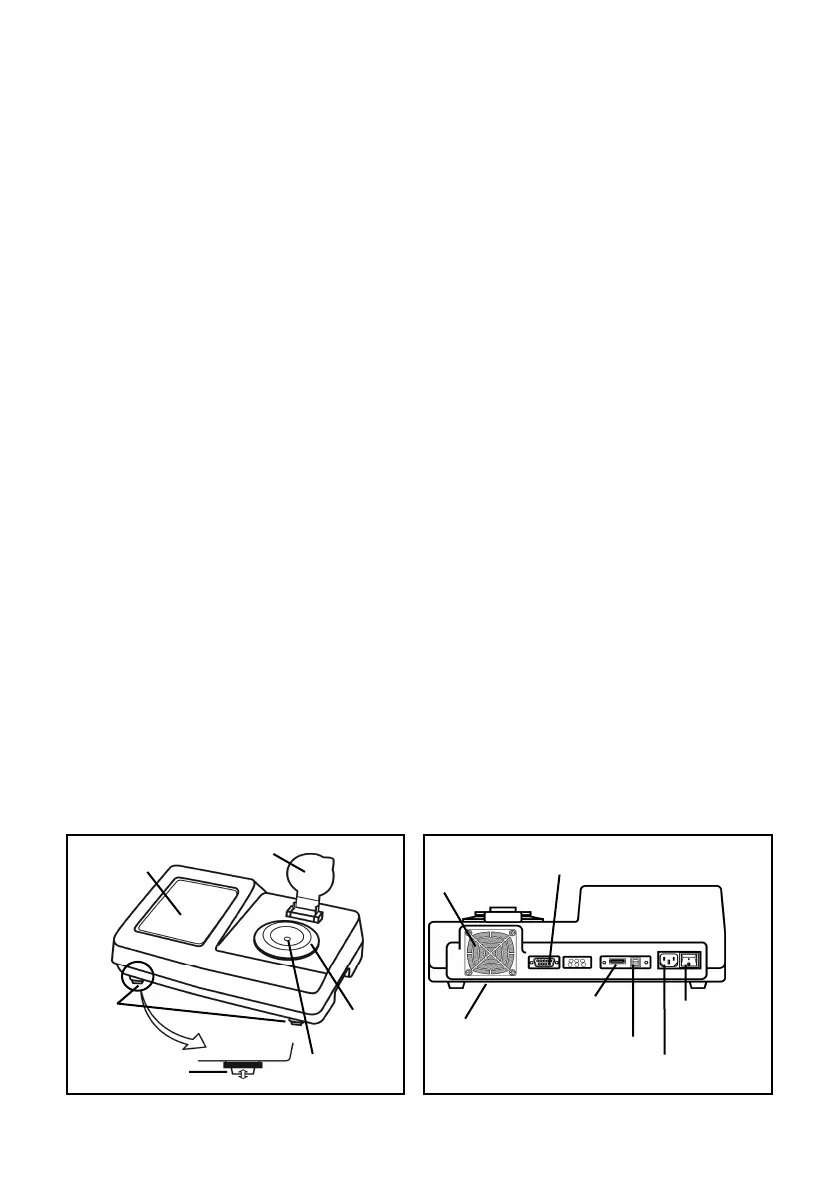

Names and Functions of Components
① Sample stage
Place a sample on the prism in the middle.
② Prism
The unit irradiates light internally to the contact
interface between a sample and the surface of
the prism to detect the refractive index of the
sample.
③ Cover plate
It is closed to prevent external light from
interfering with measurements.
④ Touch screen
All operations including taking measurements
and changing settings are controlled on the
touchscreen. It automatically dims after 5
minutes of no operation.
⑤ Rubber feet
The two front feet are adjustable. Turn the
screw near the base of each foot to raise or
lower it to the desired height.
⑥ Power switch
Setting the switch to the | position powers ON
the unit. Setting the switch to the O position will
power off the unit.
⑦ Power port
Connect the AC power cable connector to this
terminal.
⑧ USB port for computer
USB port for connecting to a PC.
⑨ USB flash drive port
Port for a USB flash drive.
⑩ Printer port
Port for connecting to a DP-63 or DP-AD
Digital Printer (The printers are available for
purchase.)
⑪ Intake fan
This fan circulates air to cool the internal
temperature of the RX-i series.
⑫ Exhaust fan (bottom)
This fan radiates heat from inside the RX-i
series.
⑩Printer port
⑫Exhaust fan (bottom)
⑦Power port
⑨USB flash drive port
⑧USB port for computer
⑥Power switch
⑪Intake fan
Front side
①
stage
③Cover plate
④Touch screen
⑤
Rubber feet
②Prism
Turn this screw to
adjust the height.
