Autel MAXITPMS ITS600PRO - VCI - Vehicle Communication Interface; Function Description

8
Item
Description
Storage Temp.
-20 to 60°C (-4 to 140°F)
Dimensions (W x H x D)
183.0 mm (7.2″) x 89.0 mm (3.5″) x 22.0 mm
(0.87″)
Net Weight
368 g (0.8 lb.)
Protocols
ISO9141-2, ISO14230-2, ISO15765, K/L-
Line, Flashing Code, SAE-J1850 VPW,
SAE-J1850PWM, ISO11898 (Highspeed,
Middlespeed, Lowspeed and Singlewire
CAN, fault-tolerant CAN), SAE J2610, GM
UART, UART Echo Byte Protocol, Honda
Diag-H Protocol, TP2.0, TP1.6, ISO13400,
CAN FD
2.2 VCI – Vehicle Communication Interface
The wireless diagnostic interface MaxiVCI V200 is a small vehicle
communication interface (VCI) used to connect to a vehicle’s DLC and
connect wirelessly with the tablet for vehicle data transmission.
2.2.1 Function Description

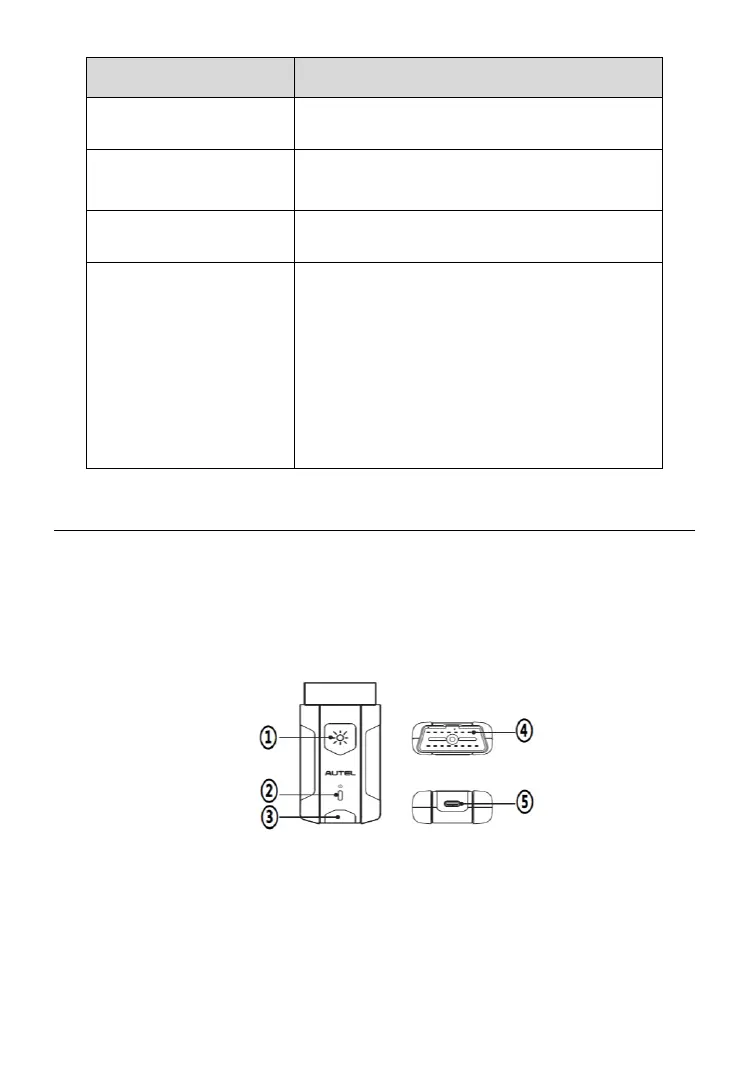

Figure 2-4 MaxiVCI V200 Views
① Flashlight Button
② Power LED
③ Connection LED
